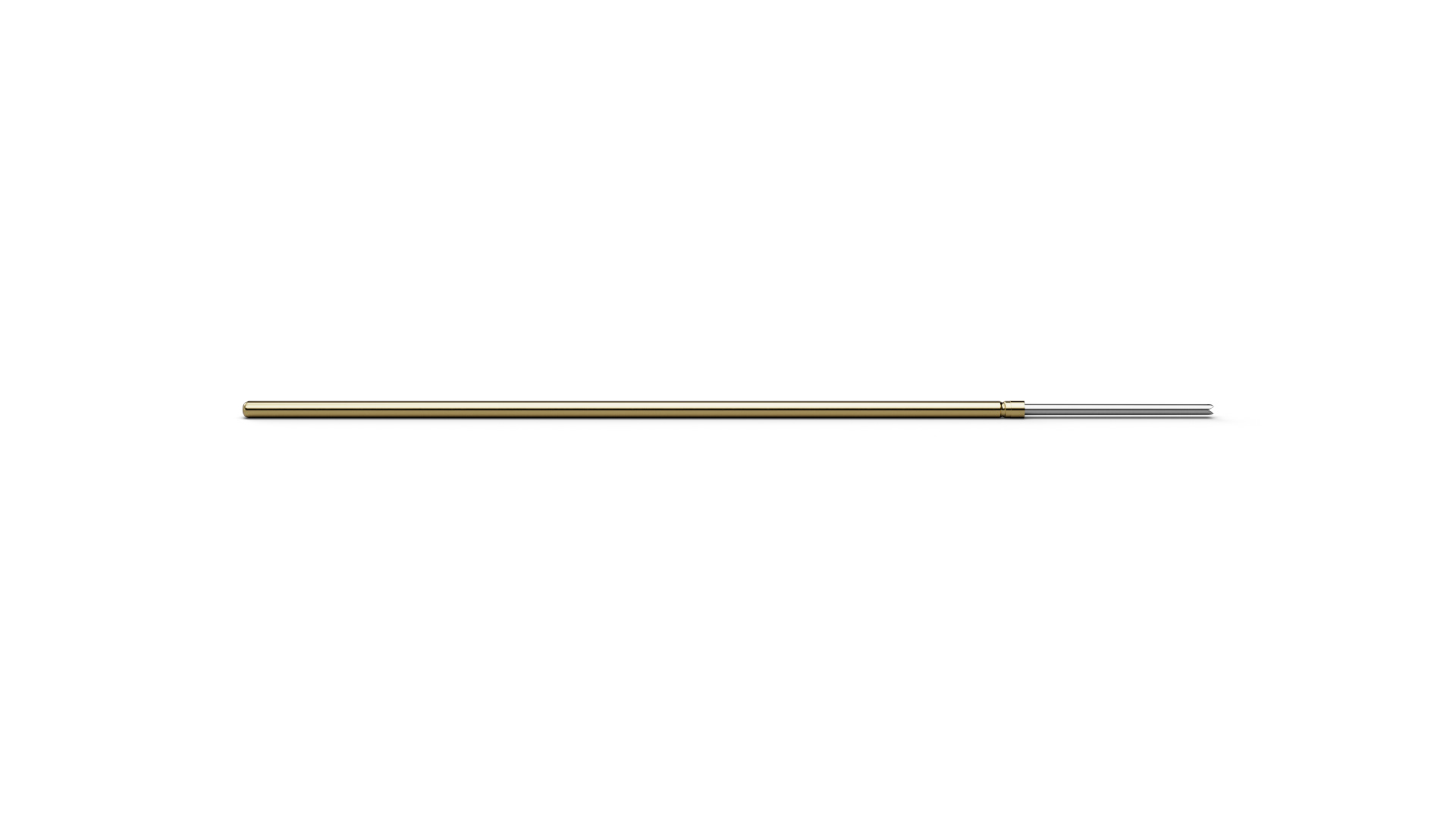

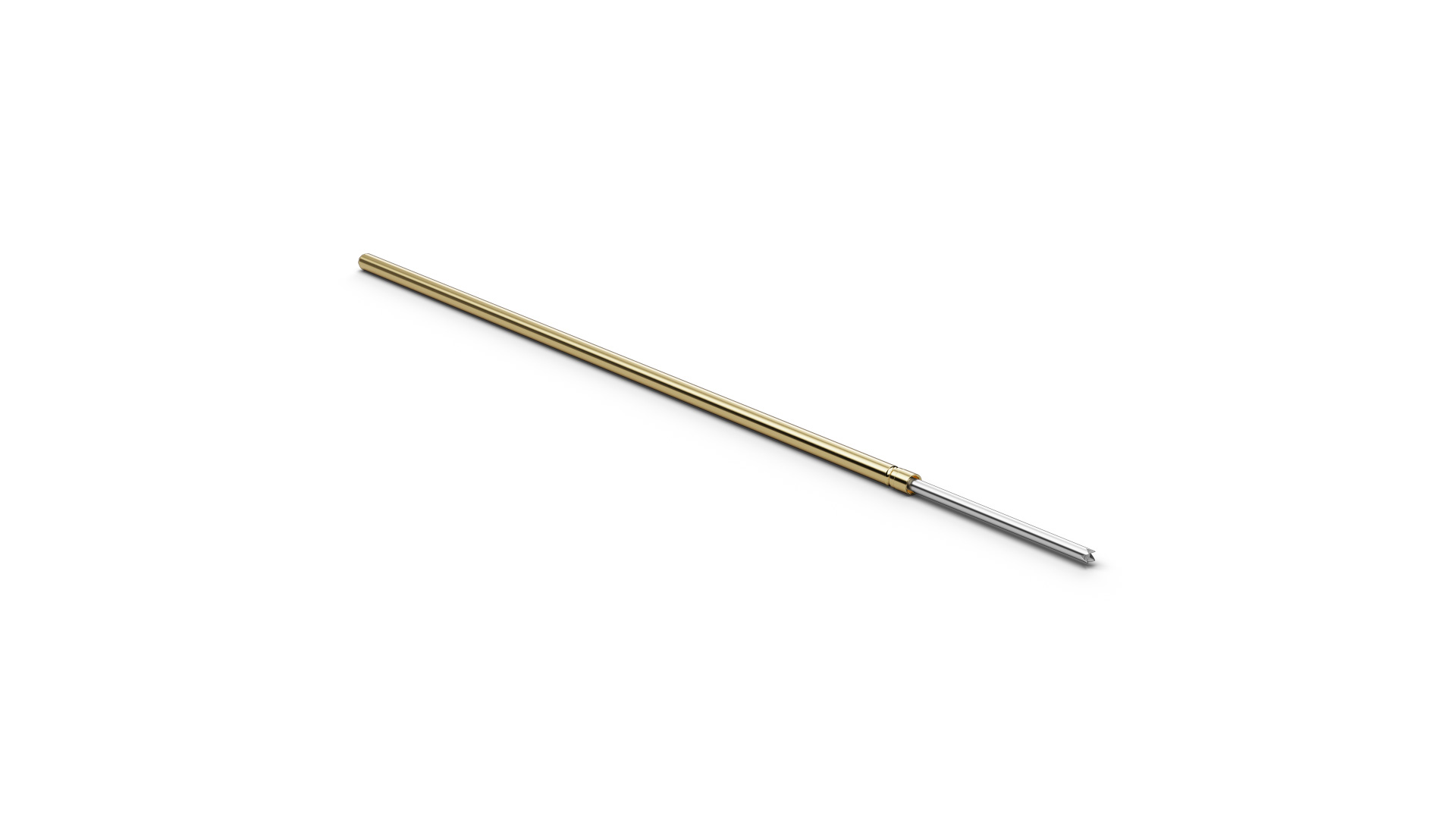

F04029S038P150HP (item number 1137242) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 29 (4-point crown), F04029S038P150HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F04029S038P150HP combines a pitch of 1 mm / 40 mil with tip style 29 (4-point crown) and a tip diameter of 0.38 mm. F04029S038P150HP operates with 150 cN spring force and 4.3 mm nominal travel. F04029S038P150HP is specified for 2 A continuous current. The P/HP configuration of F04029S038P150HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
