Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F040HP |
| Pitch (mm/mil) | 1,00 / 40 |
| Temperature | -45°C...+100°C |

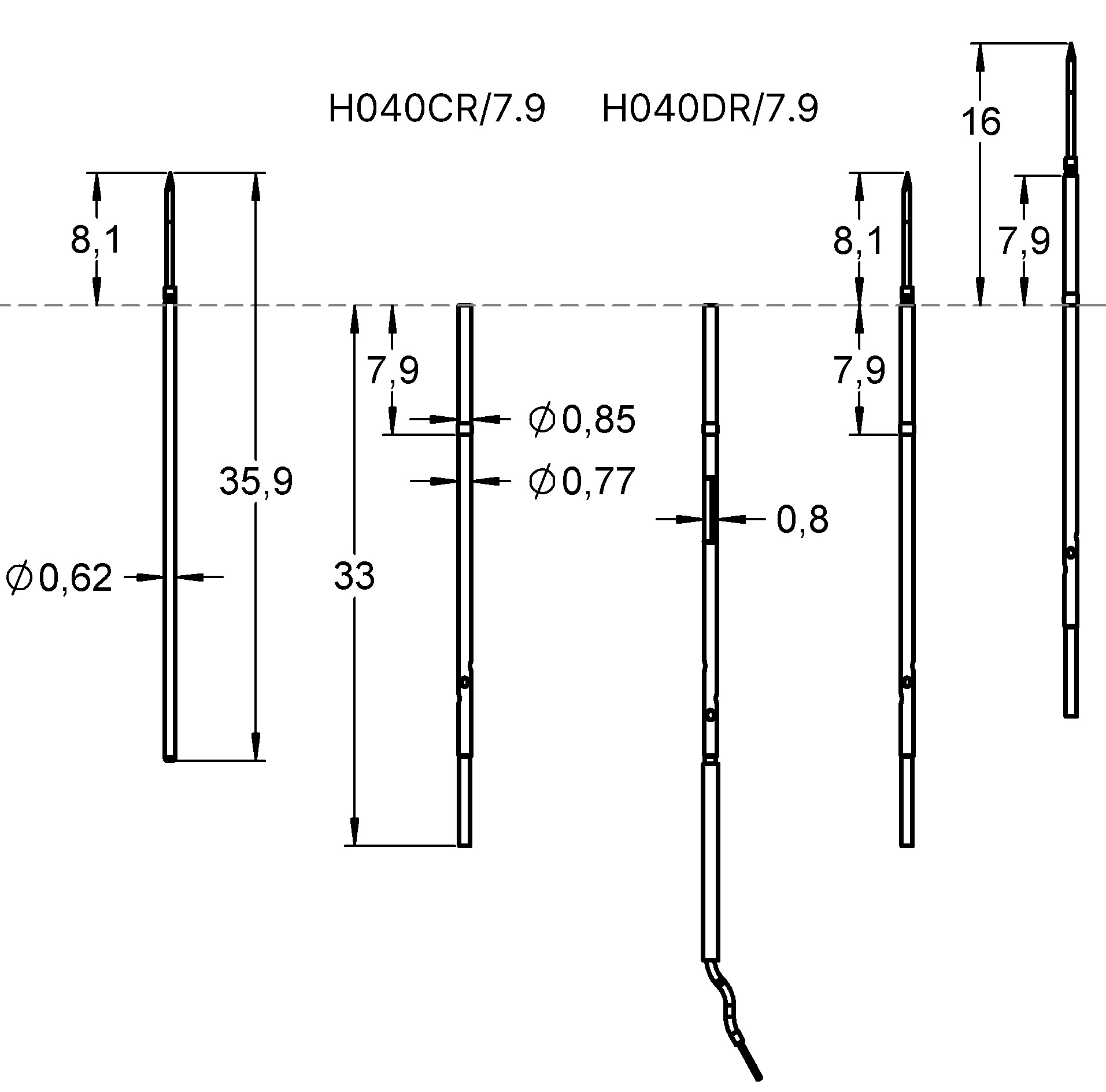

| Dimensions | |
|---|---|
| Total length (mm) | 35.9 |
| Protrusion height (mm) | 8.1 |
| Tip style diameter (mm) | 0.38 |
| Barrel diameter (mm) | 0.62 |
| Materials and surfaces | |
|---|---|
| Tip style | 29 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 20 |

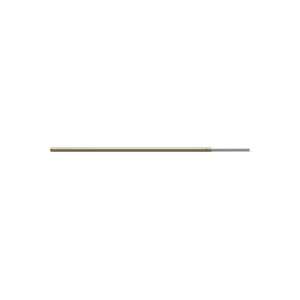

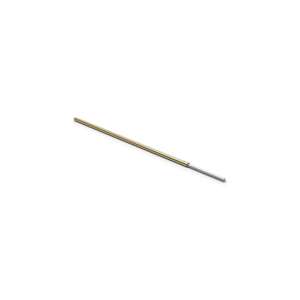

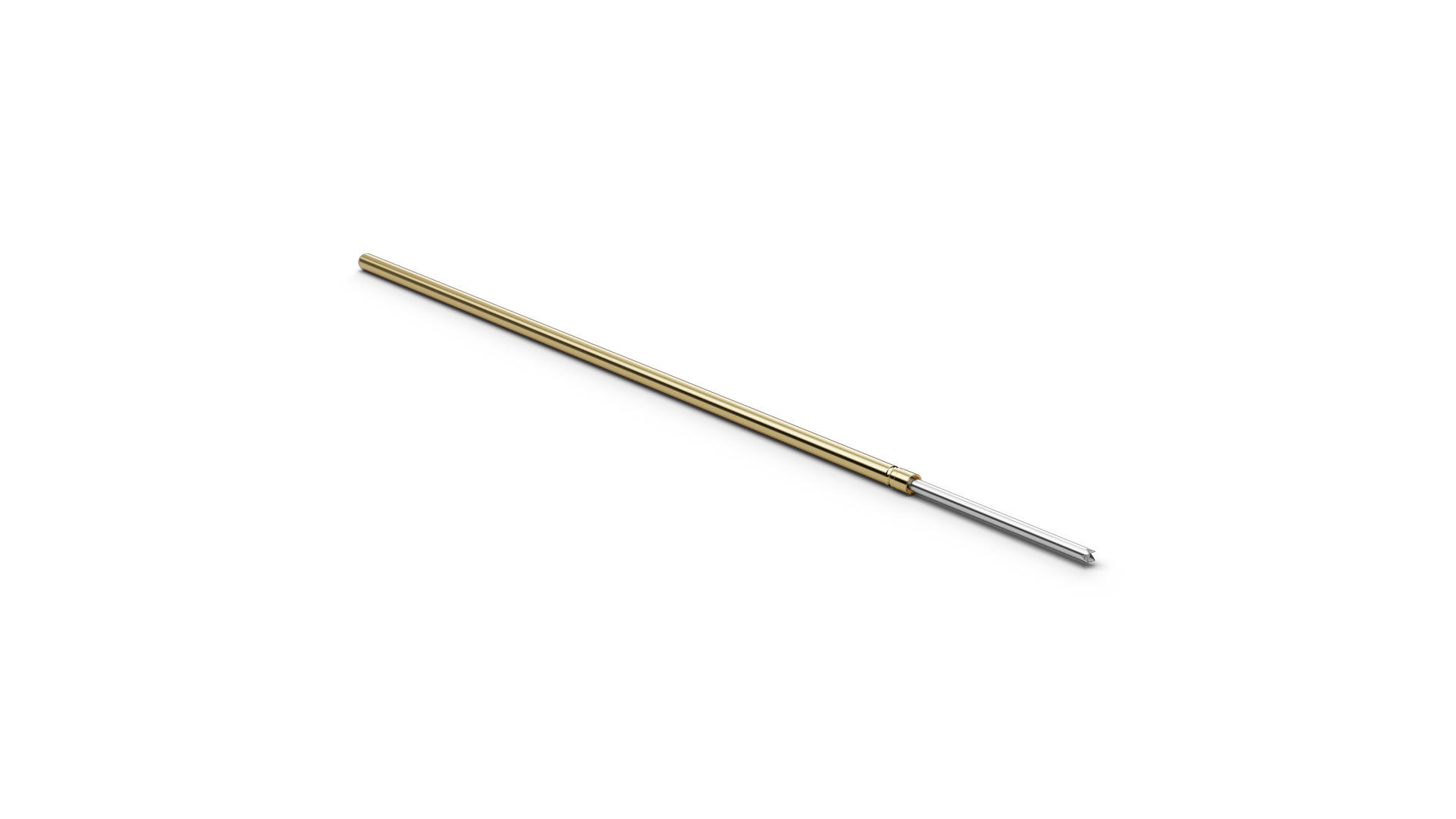

Graphics
