Données techniques
| Généralités | |
|---|---|
| Type/famille | HCF763 |
| Pas (mm/mil) | 4,50 / 177 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 51.6 |
| Hauteur hors tout (mm) | 21.1 |
| Diamètre du style de pointe (mm) | 3.5 |
| Diamètre du fût (mm) | 3.5 |
| Diamètre du collet (mm) | 4 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 89 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Silver |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 500 |
| Force du ressort (cN) | 1000 |
| Course nominale (mm) | 4.4 |
| Course maximale (mm) | 6.5 |
| DUT | 0,80 Blech |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 60 |
| Résistance de contact typique (mΩ) | 1.5 |
Graphiques
Beschreibung des Produkts

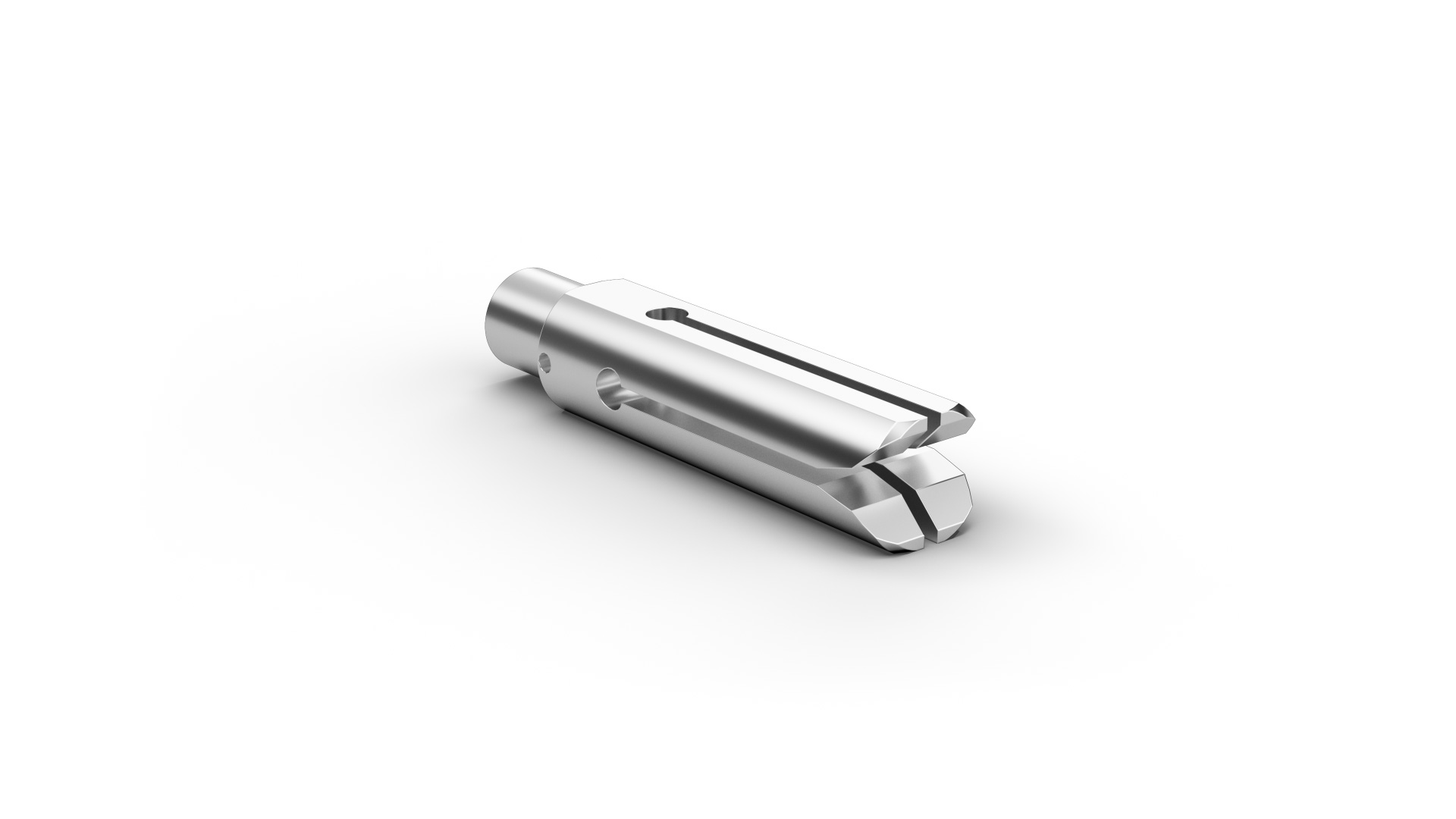

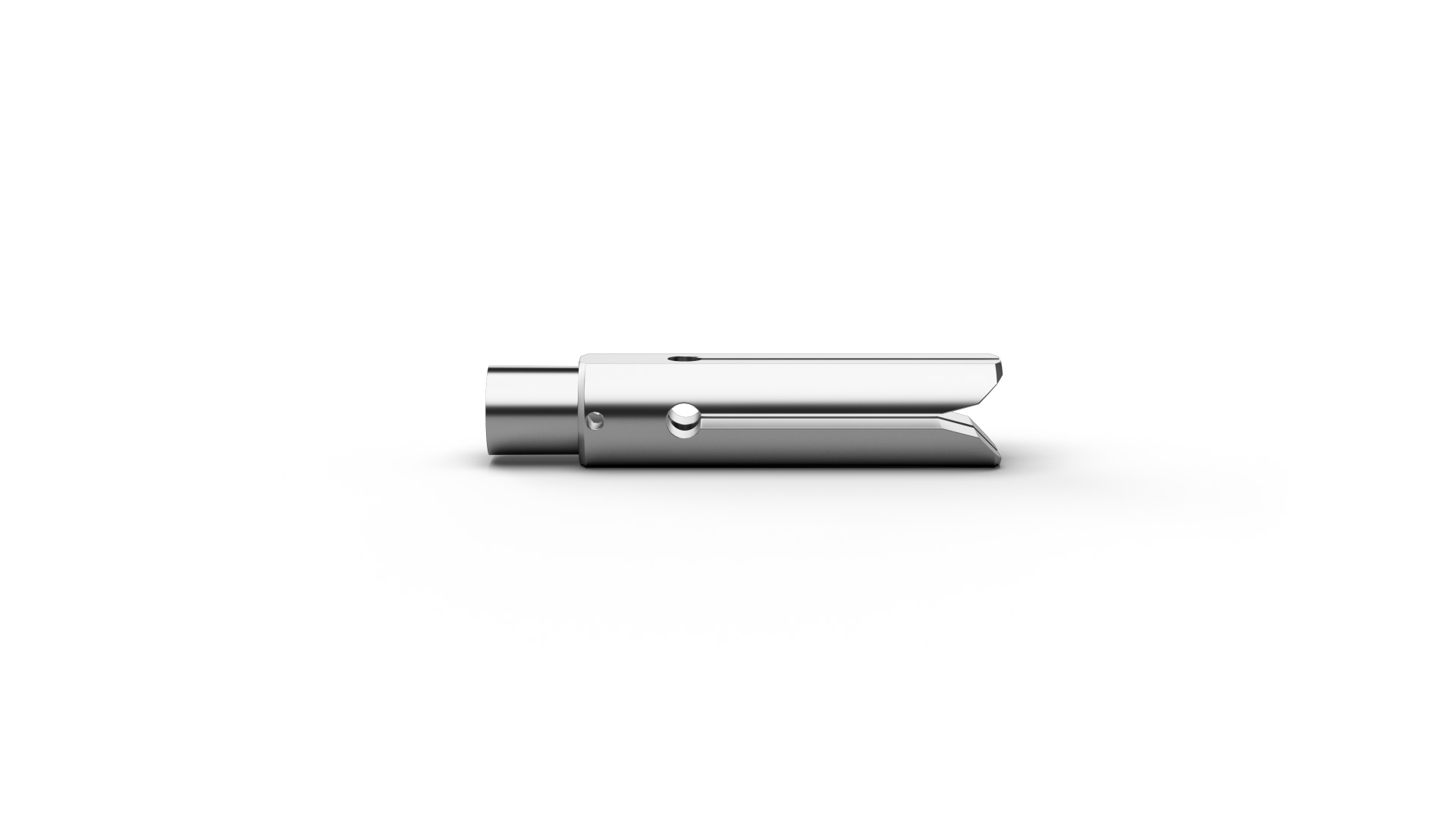

The High Current Probe HCF76389B080S1000 (item number 1177497) is designed for safe transmission of high electrical currents in test and contacting applications. HCF76389B080S1000 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF76389B080S1000, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The probe is rated for 60 A continuous current with a typical contact resistance of 1.5 mΩ. HCF76389B080S1000 operates with 1000 cN spring force and 4.4 mm nominal travel. Tip style 89 (Special version of spade tips) has a diameter of 3.5 mm.
