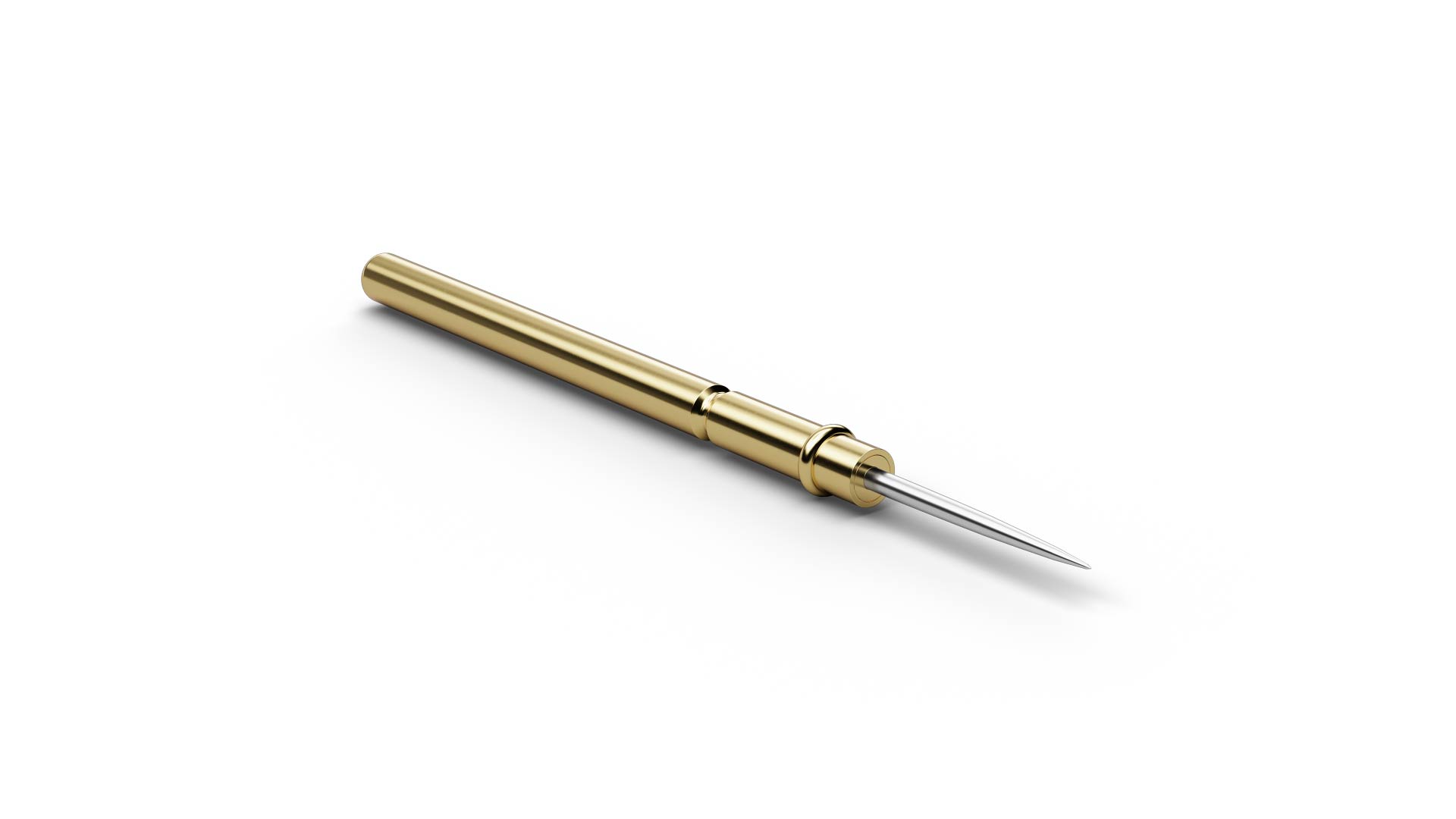

The Basic Contact Probe F77210S063N150 (item number 1001559) is a spring-loaded probe for temporary electrical contact with test points. With tip style 10 (Flexible needle), F77210S063N150 combines ICT/FCT use with a geometry intended for solder pads and vias. F77210S063N150 combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.63 mm. For F77210S063N150, spring force is 150 cN at a nominal travel of 4 mm. The electrical rating of F77210S063N150 combines 5 A continuous current with 25 mΩ typical contact resistance. The plunger in F77210S063N150 is made of steel and is Nickel-plated.
