Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F772 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 0.63 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.04 |
| Press ring diameter (mm) | 2.04 |
| Materials and surfaces | |
|---|---|
| Tip style | 10 |
| Plunger material | Steel |
| Plunger plating | Nickel |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

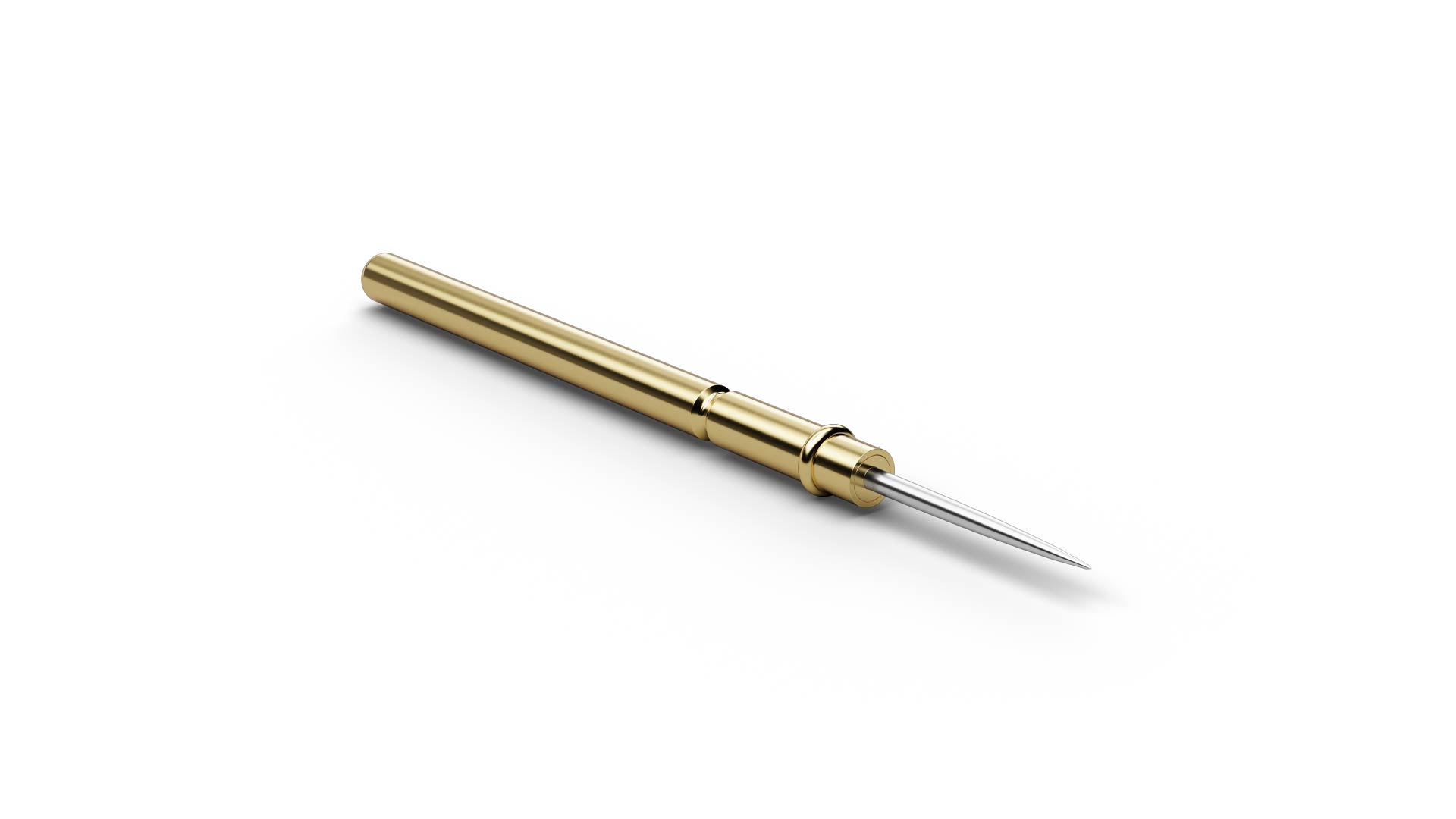

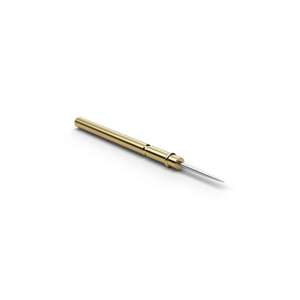

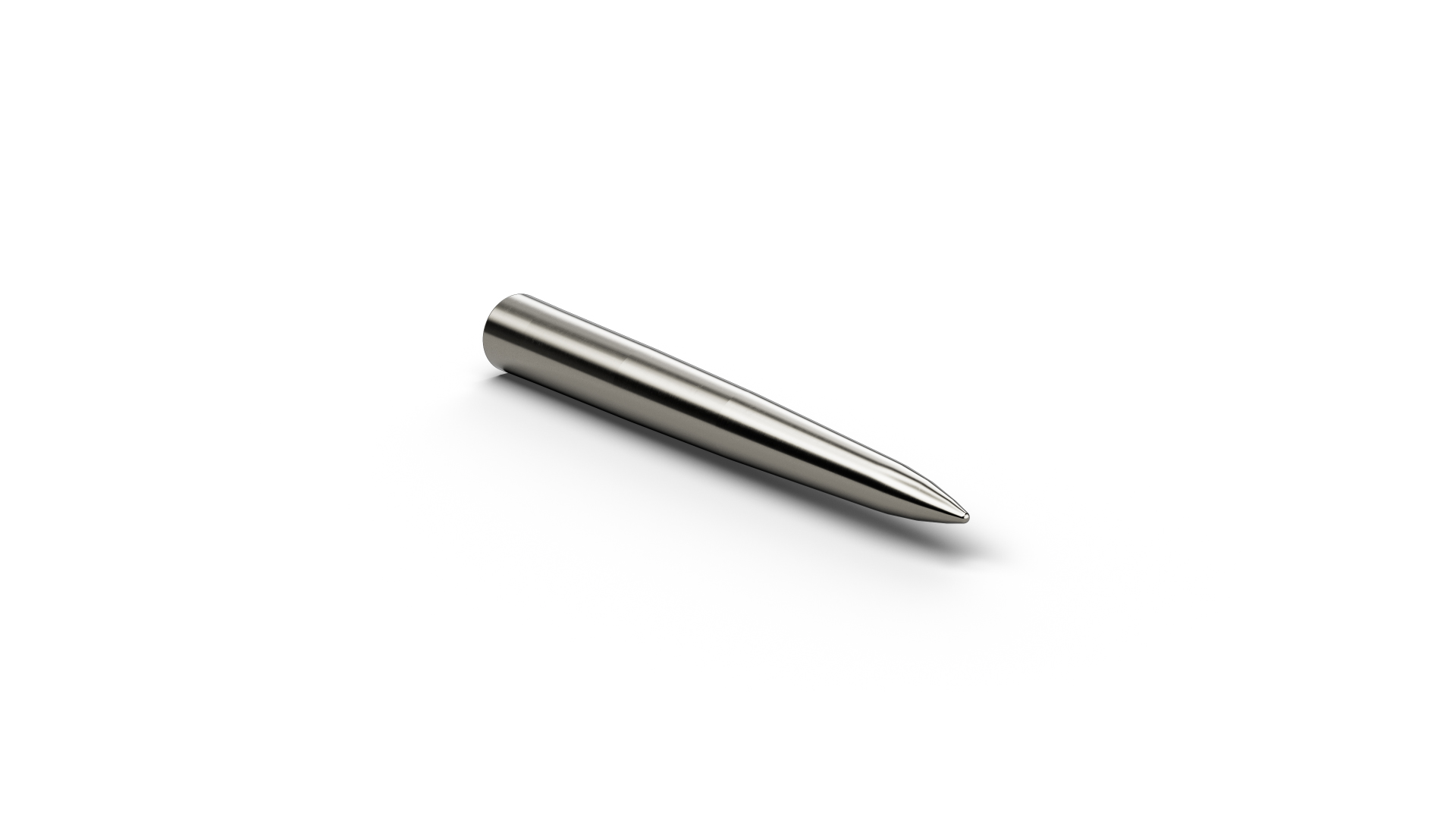

The Basic Contact Probe F77210S063N150 (item number 1001559) is a spring-loaded probe for temporary electrical contact with test points. With tip style 10 (Flexible needle), F77210S063N150 combines ICT/FCT use with a geometry intended for solder pads and vias. F77210S063N150 combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.63 mm. For F77210S063N150, spring force is 150 cN at a nominal travel of 4 mm. The electrical rating of F77210S063N150 combines 5 A continuous current with 25 mΩ typical contact resistance. The plunger in F77210S063N150 is made of steel and is Nickel-plated.
