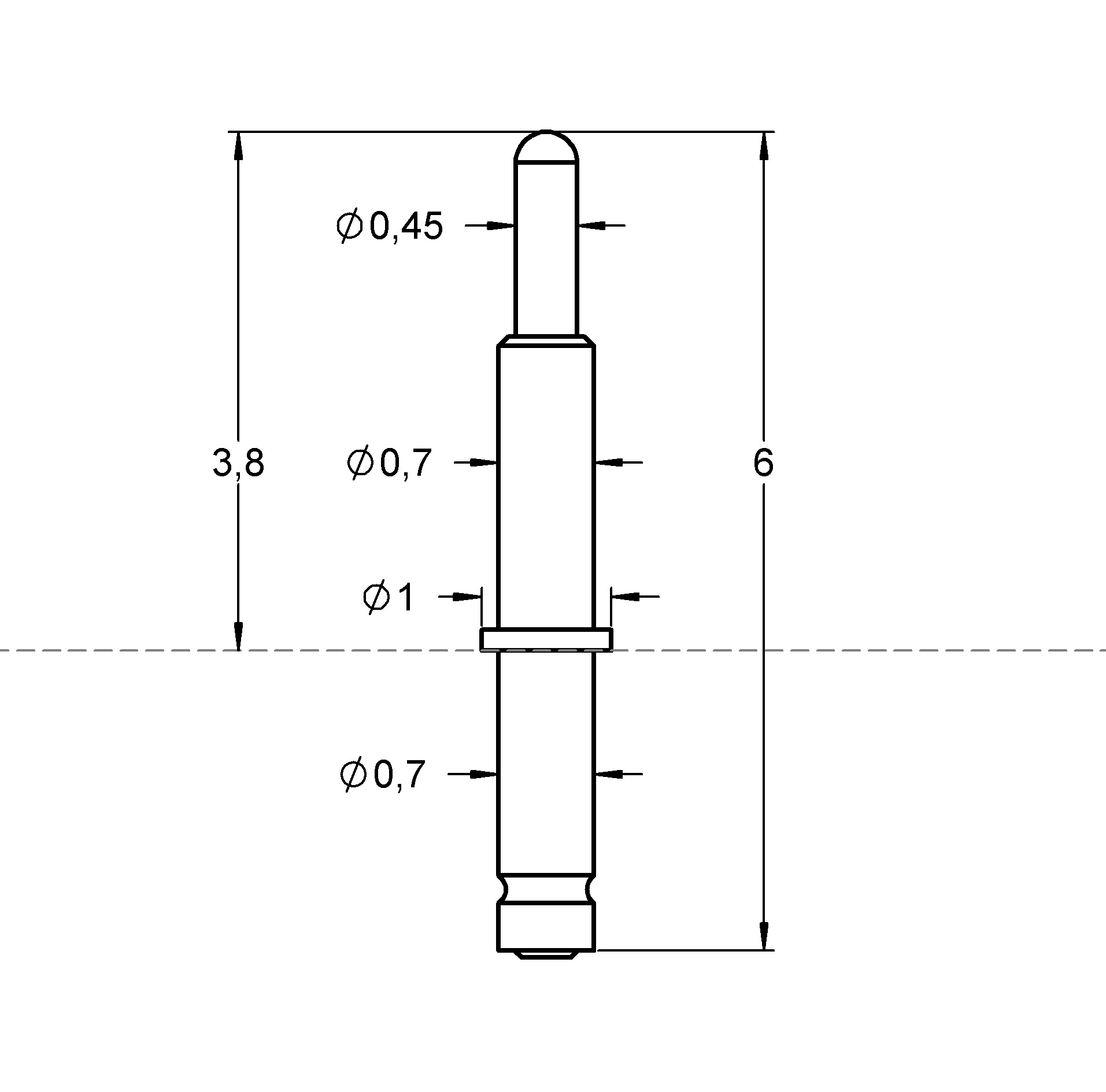

The Pogo Connector P07011B045G030ML060ST (item number 1013931) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P07011B045G030ML060ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P07011B045G030ML060ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P07011B045G030ML060ST, a pitch of 1.27 mm / 50 mil is combined with 30 cN spring force and 1 mm nominal travel. P07011B045G030ML060ST is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. On P07011B045G030ML060ST, tip style 11 (Spherical) has a diameter of 0.45 mm.
