Home › Products › Product Finder › P07011B045G030ML060ST

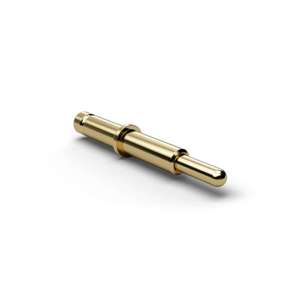

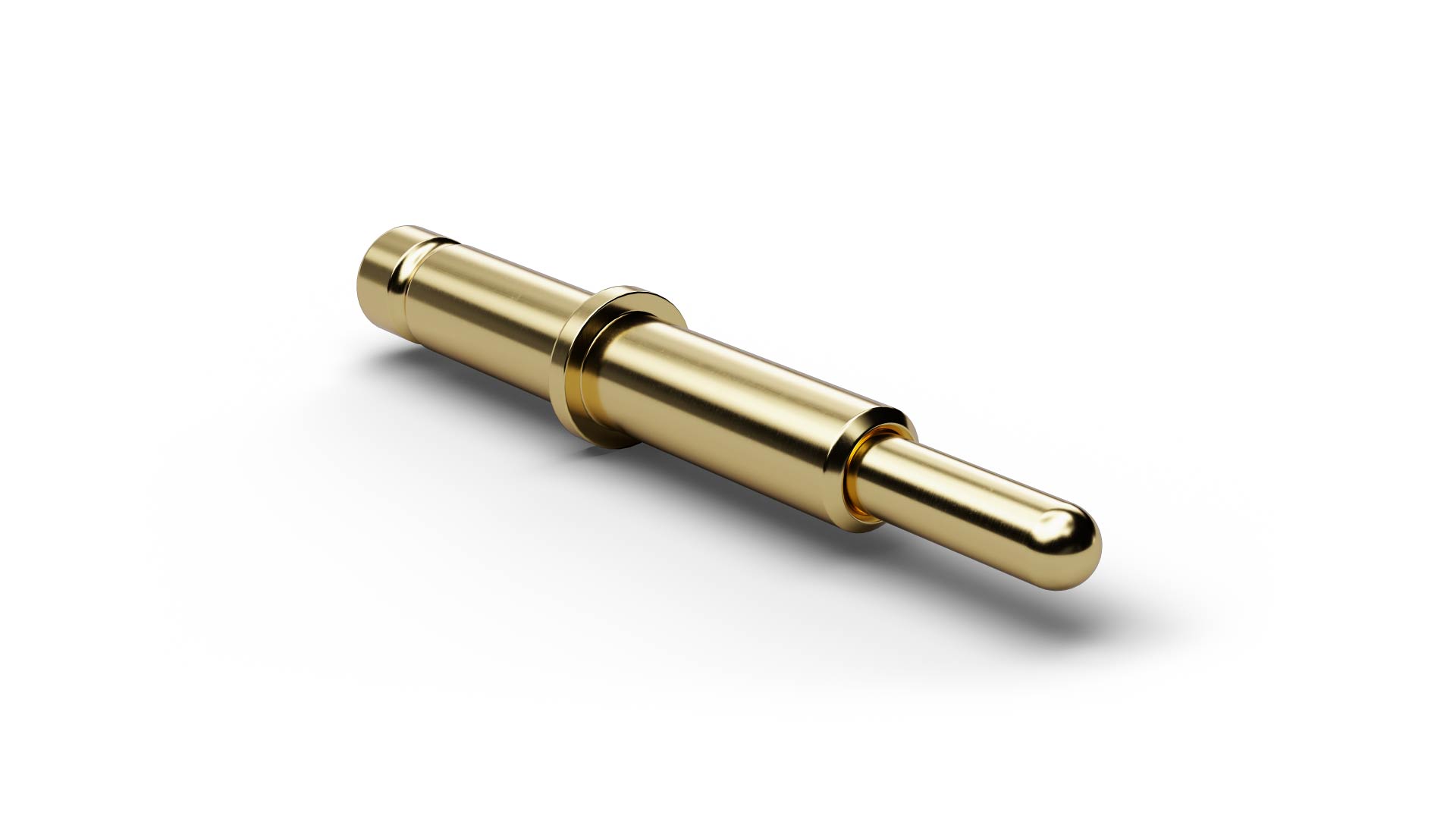

P07011B045G030ML060ST Perspective 1 P07011B045G030ML060ST Perspective 2

Pogo Connectors (≤ 1,27mm / 50mil) P07011B045G030ML060ST

Item number 1013931

Technical data sheet

Quantity

Technical data

General
Structure Basic Contact Probe
Type/family P-M / P070M-L060
Pitch (mm/mil) 1,27 / 50
Temperature -45°C...+100°C
Dimensions
Total length (mm) 6
Protrusion height (mm) 3.8
Tip style diameter (mm) 0.45
Barrel diameter (mm) 0.7
Collar diameter (mm) 0.95
Materials and surfaces
Tip style 11
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Mechanical specifications
Preload (cN) 10
Spring force (cN) 30
Nominal travel (mm) 1
Maximum travel (mm) 1.25
Pointing accuracy +/- (mm) 0.08
Electrical specifications
Continuous current (A) 3
Typical contact resistance (mOhm) 20

Graphics

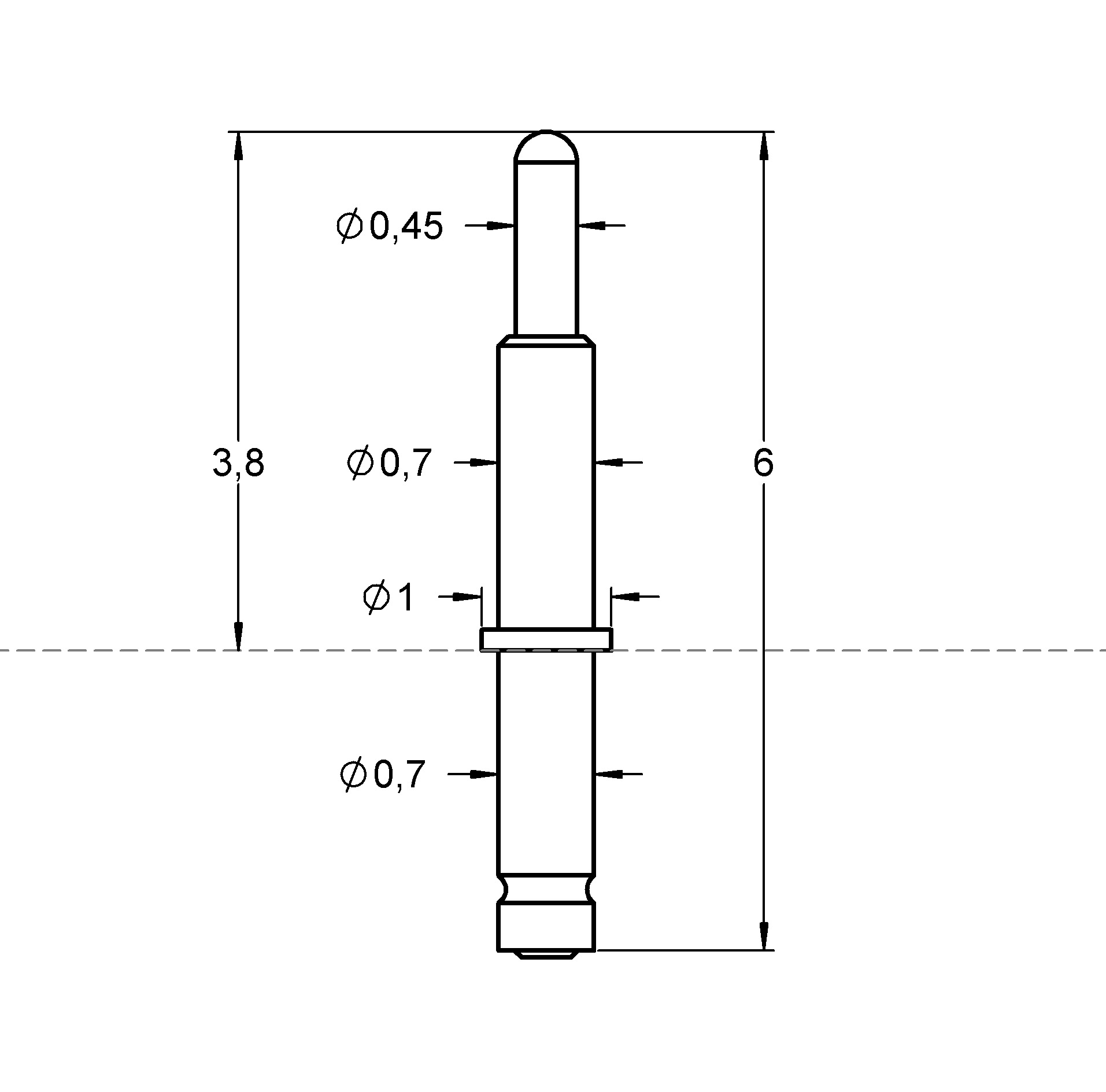

P07011B045G030ML060ST Family designation P07011B045G030ML060ST Tip style 1

Beschreibung des Produkts

The Pogo Connector P07011B045G030ML060ST (item number 1013931) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P07011B045G030ML060ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P07011B045G030ML060ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P07011B045G030ML060ST, a pitch of 1.27 mm / 50 mil is combined with 30 cN spring force and 1 mm nominal travel. P07011B045G030ML060ST is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. On P07011B045G030ML060ST, tip style 11 (Spherical) has a diameter of 0.45 mm.
