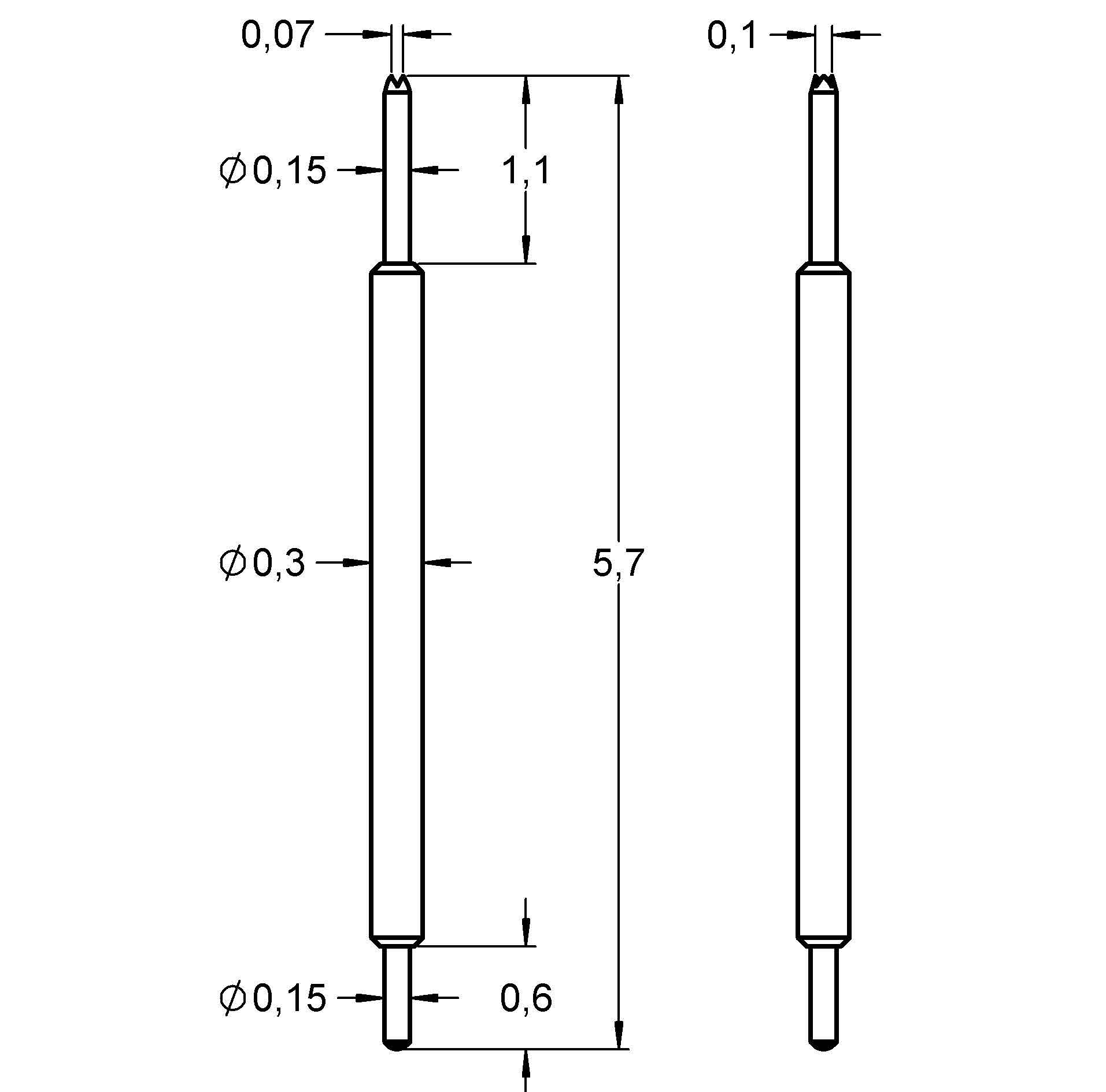

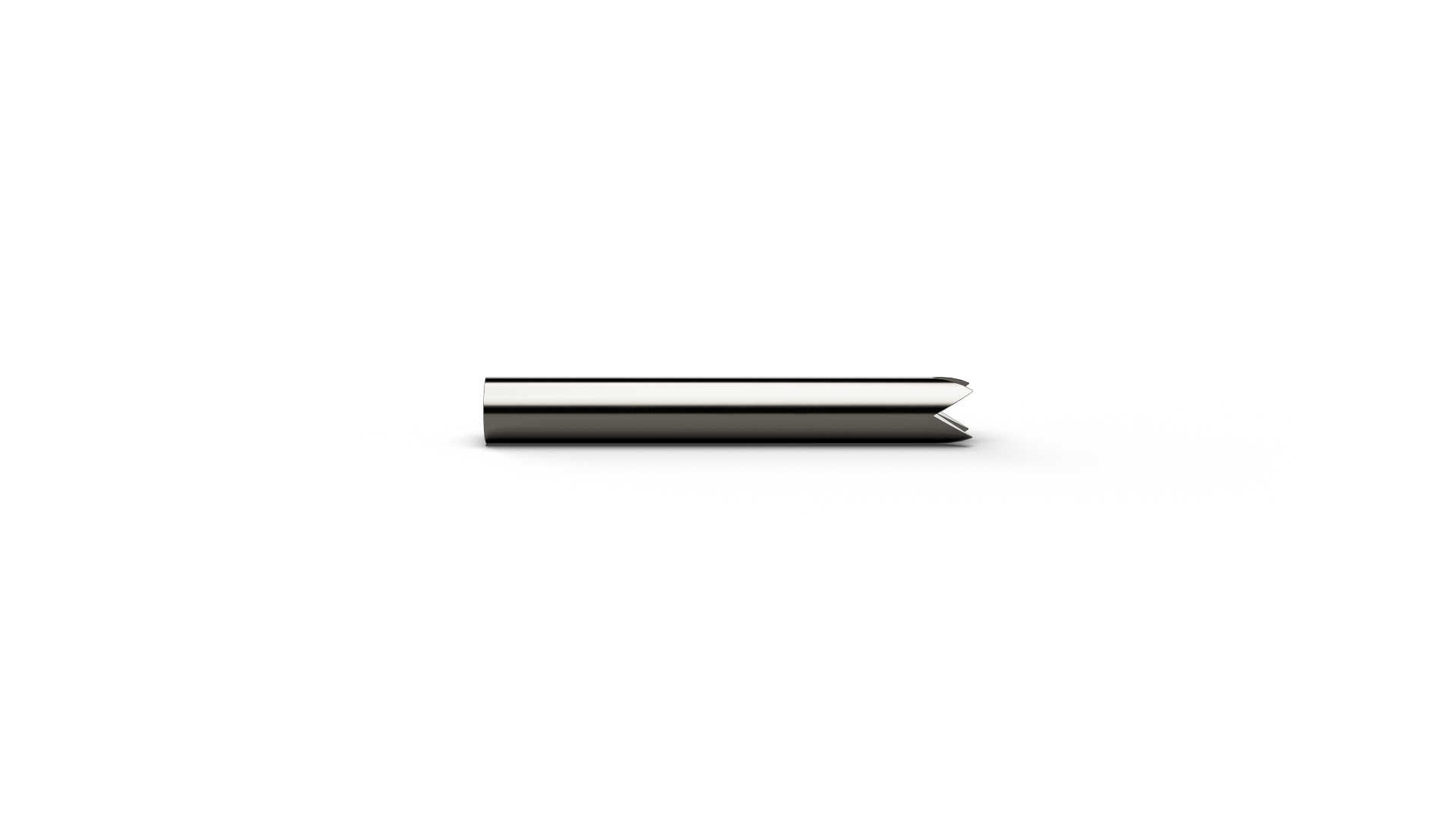

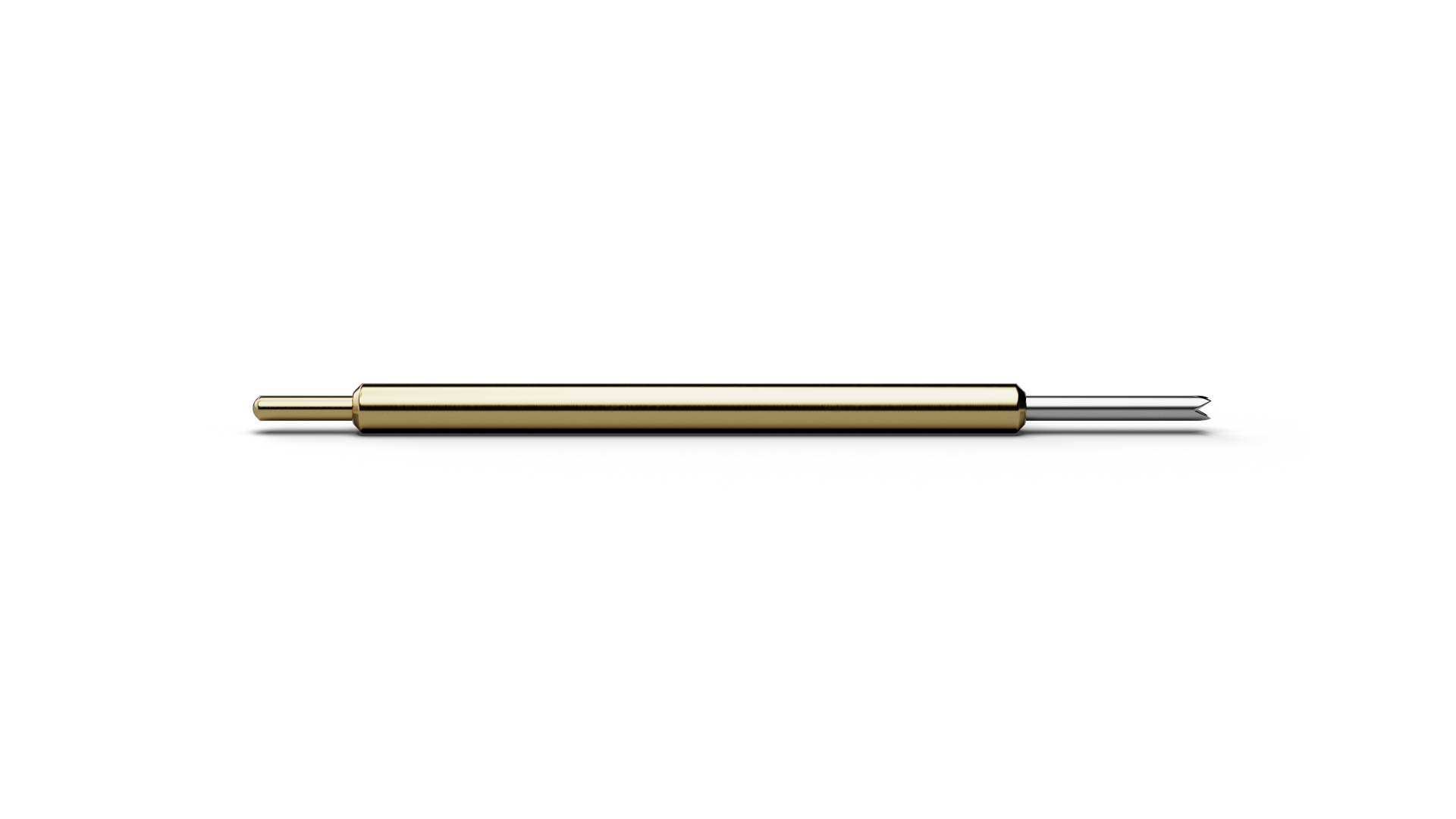

The Fine Pitch Double Plunger Probe FP300D2901P015U025L057H (item number 1024430) is designed for precise contacting where installation space is limited. Tip style 29 (4-point crown) targets FP300D2901P015U025L057H at solder bumps and pads; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. In FP300D2901P015U025L057H, the double-plunger design provides spring-loaded contacting on both sides and can compensate for mechanical tolerances in compact interfaces. Key design data includes pitch 0.4 mm / 16 mil, spring force 25 cN, continuous current 1.4 A. As an H version, FP300D2901P015U025L057H extends the operating range to high-temperature applications up to 200 °C.
