기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H885 |
| 거리(mm/mil) | 4,50 / 177 |
| 추가정의 | Insulated |
| 치수 | |
|---|---|
| 전체 길이(mm) | 38.1 |
| 프레스 링 직경(mm) | 4.2 |
| 외경(mm) | 3.8 |
| 칼라 높이(mm) | 0.4 |
| 내부 나사형 | 2,5 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Uncoated |
| 기계적 사양 | |
|---|---|
| 내부 나사형 | 2,5 |
| 연결 | Solder Connection |
| 전기적 사양 | |
|---|---|
| 연속 전류(A) | 10 |

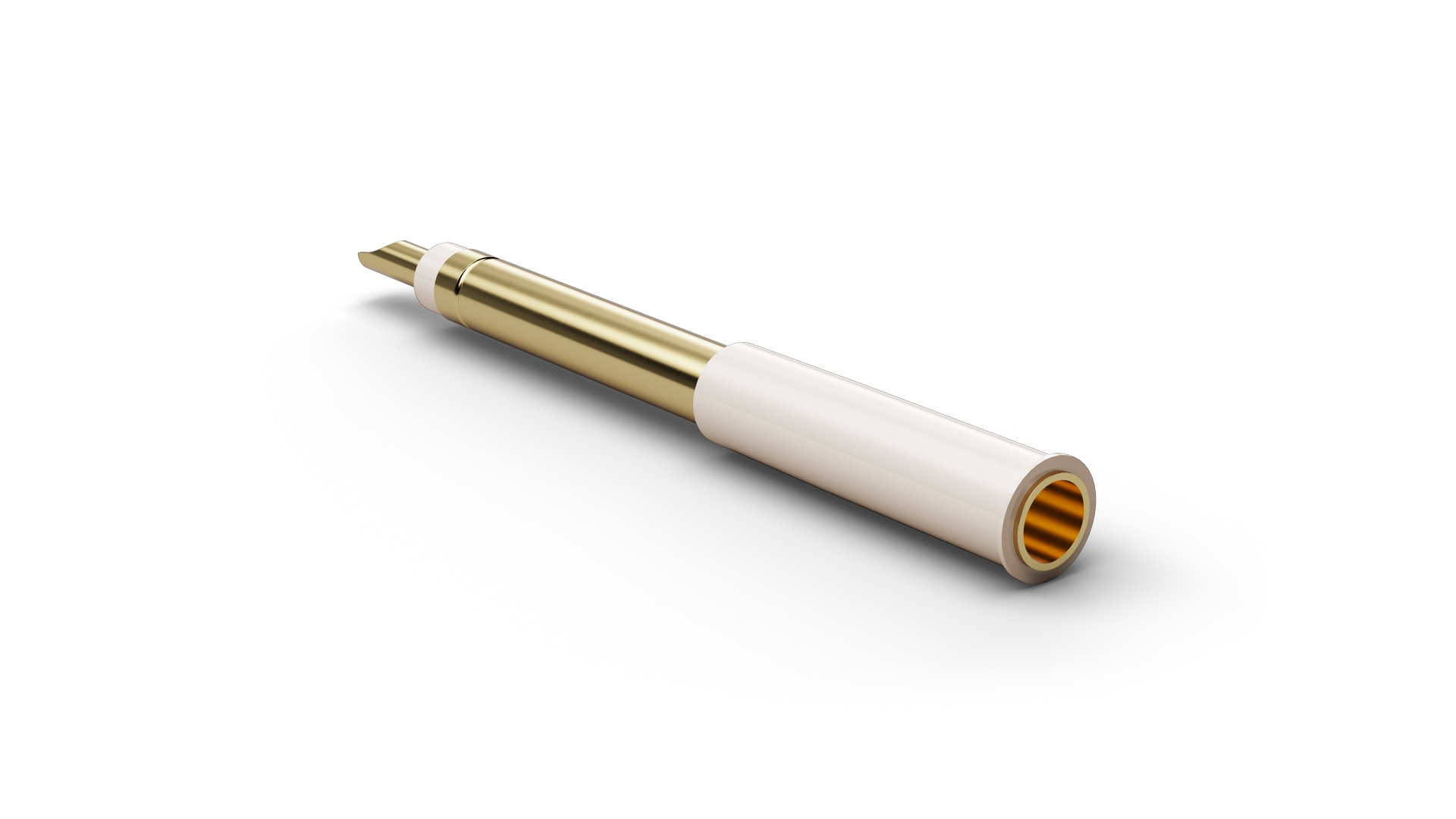

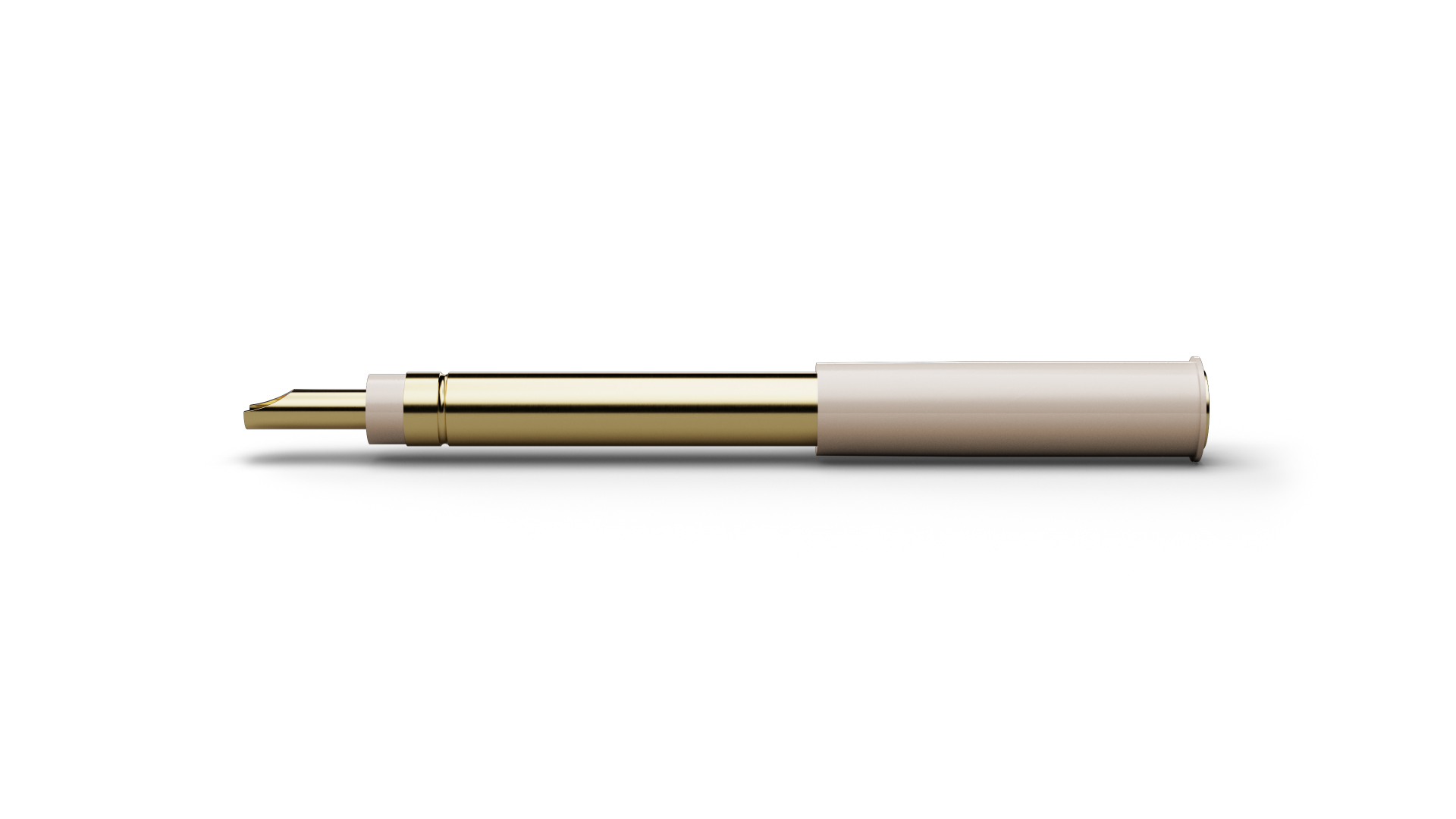

그래픽
Beschreibung des Produkts
The receptacle H885KBIS (item number 1036356) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H885KBIS guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H885KBIS, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
