Technical data
| General | |
|---|---|
| Type/family | H885 |
| Pitch (mm/mil) | 4,50 / 177 |
| Additional definition | Insulated |
| Dimensions | |
|---|---|
| Total length (mm) | 38.1 |
| Press ring diameter (mm) | 4.2 |
| Outer diameter (mm) | 3.8 |
| Collar height (mm) | 0.4 |
| Internal thread | 2,5 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Brass, Uncoated |
| Mechanical specifications | |
|---|---|
| Internal thread | 2,5 |
| Connection | Solder Connection |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |

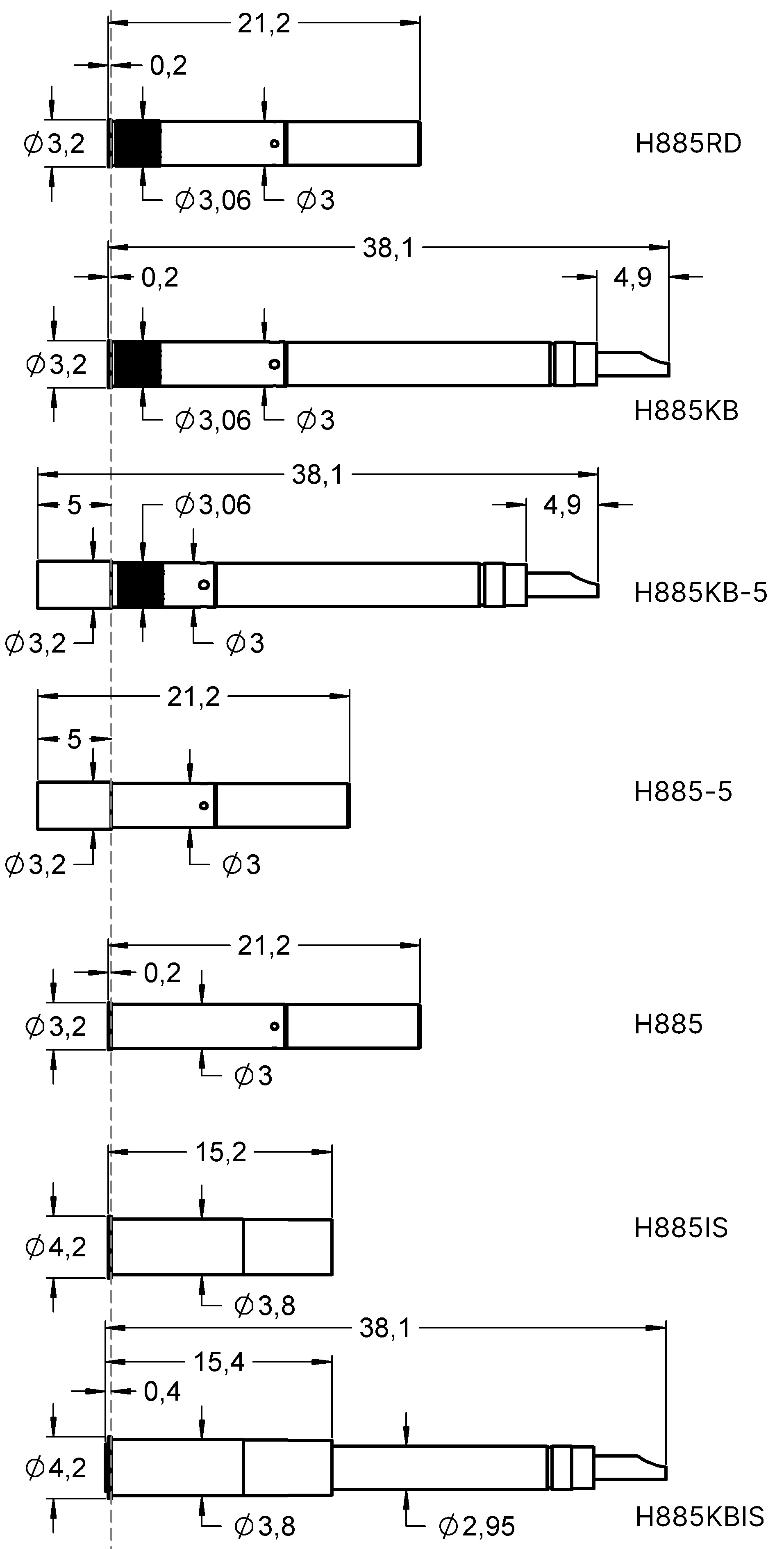

Graphics
Beschreibung des Produkts

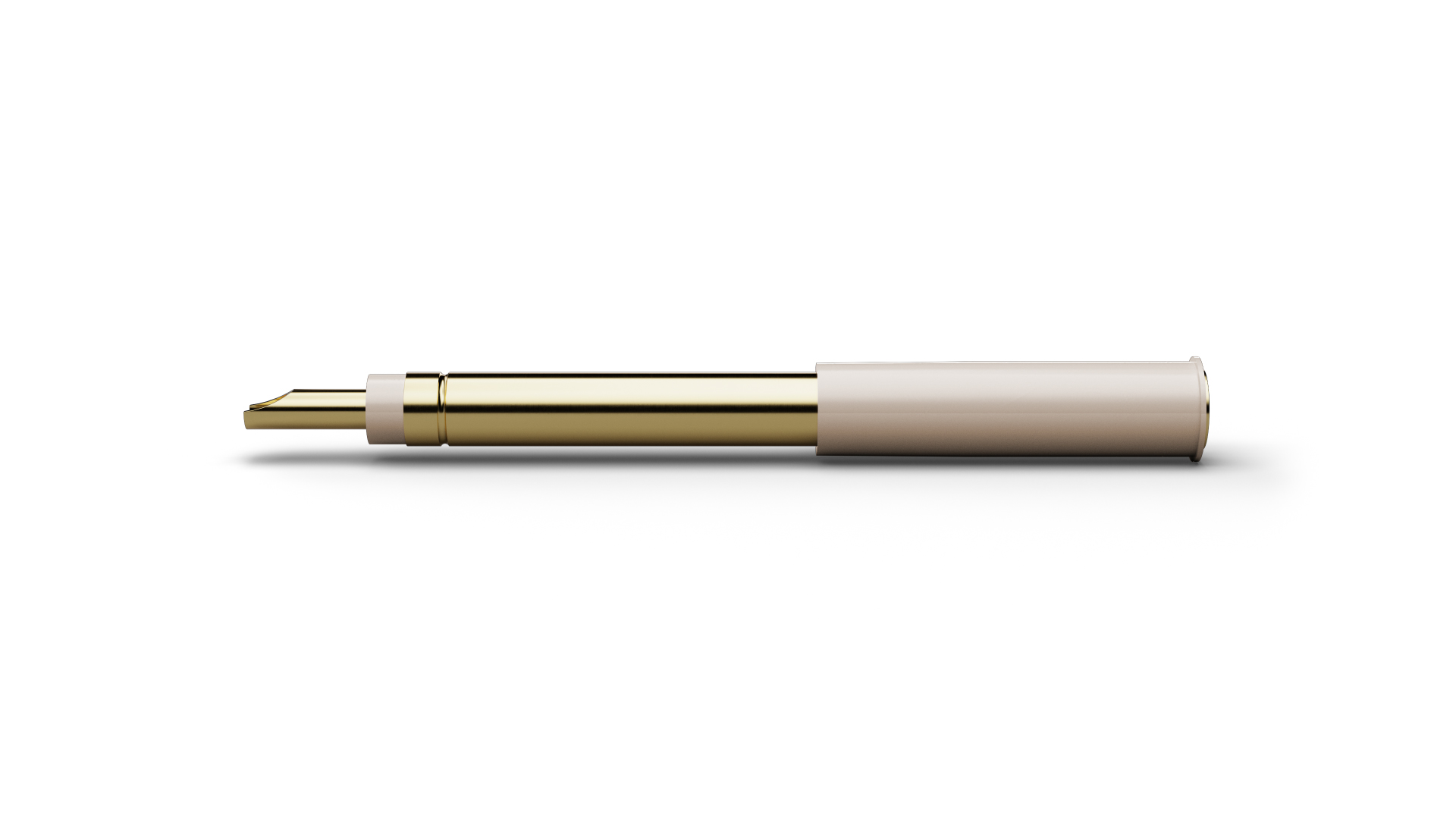

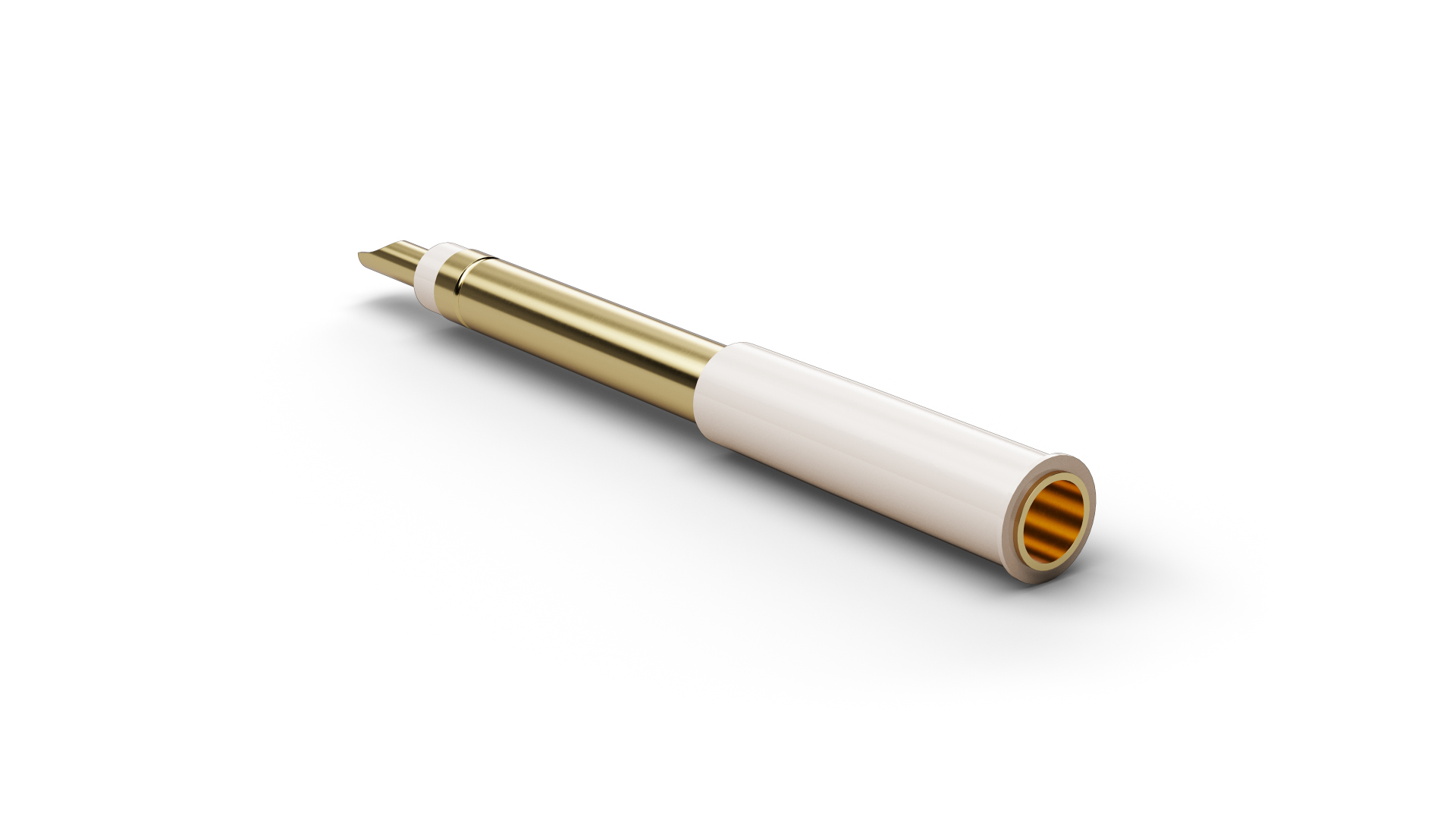

The receptacle H885KBIS (item number 1036356) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H885KBIS guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H885KBIS, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
