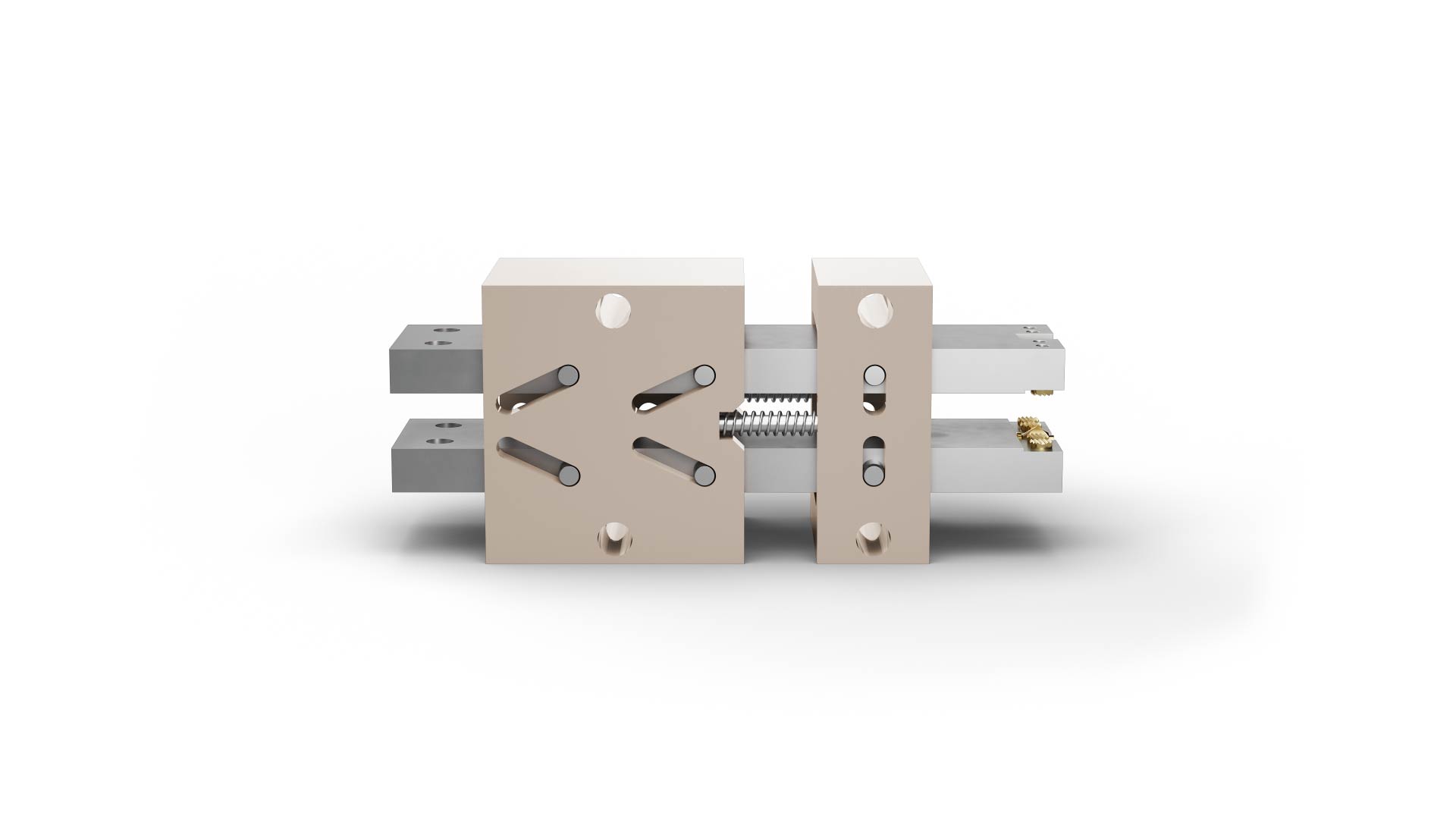

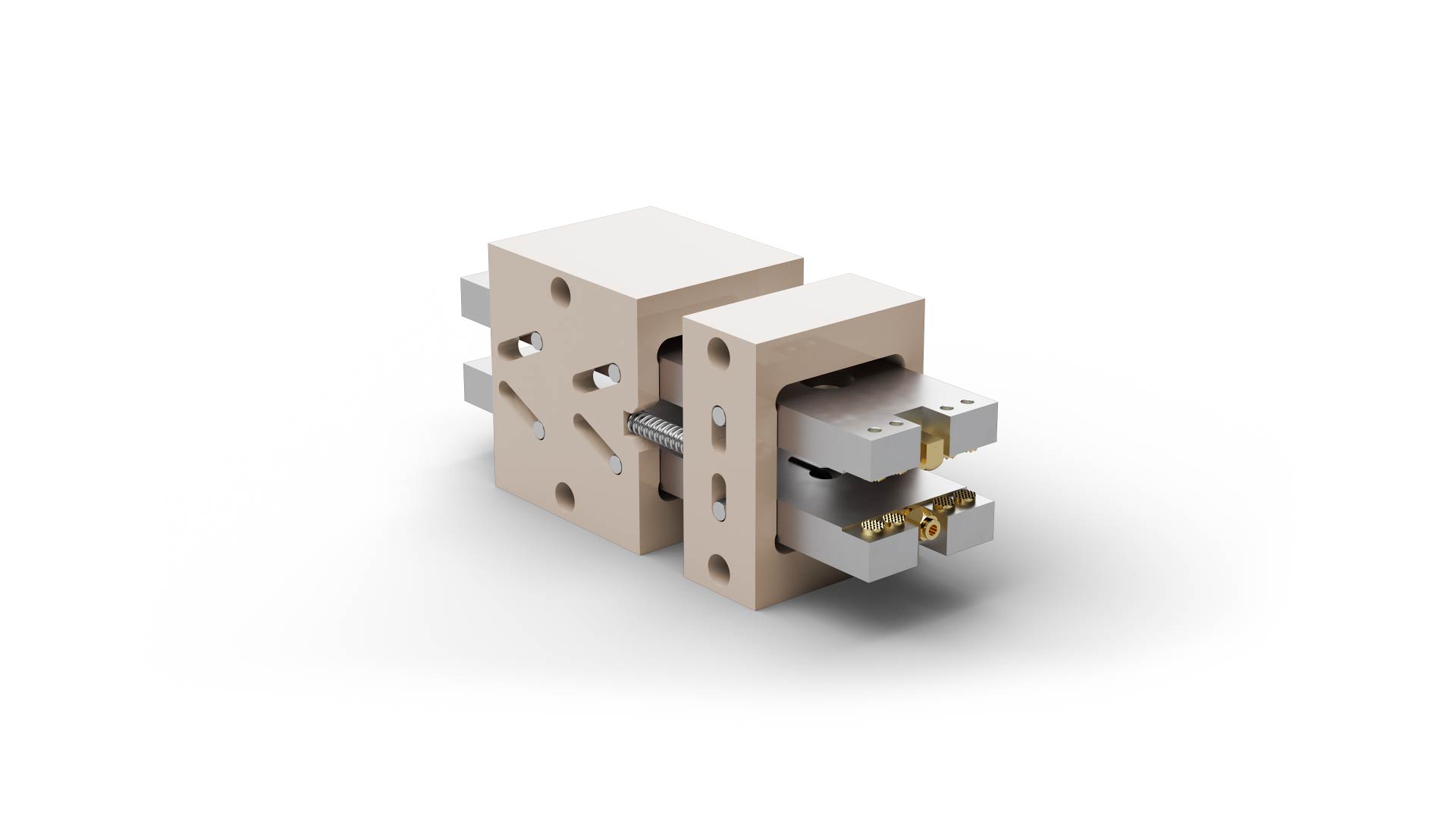

The High Current Clamp HCC150D06ALS10TYPK (item number 1114189) is designed for mechanically stable contacting at high electrical currents. HCC150D06ALS10TYPK focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. The clamping function of HCC150D06ALS10TYPK creates a defined contact area; current rating, contact force, mating geometry and heat generation should be considered together. The intended application area for HCC150D06ALS10TYPK includes battery contacting. The continuous-current rating of HCC150D06ALS10TYPK is 150 A. HCC150D06ALS10TYPK operates with 1000 cN spring force and 4 mm nominal travel.
