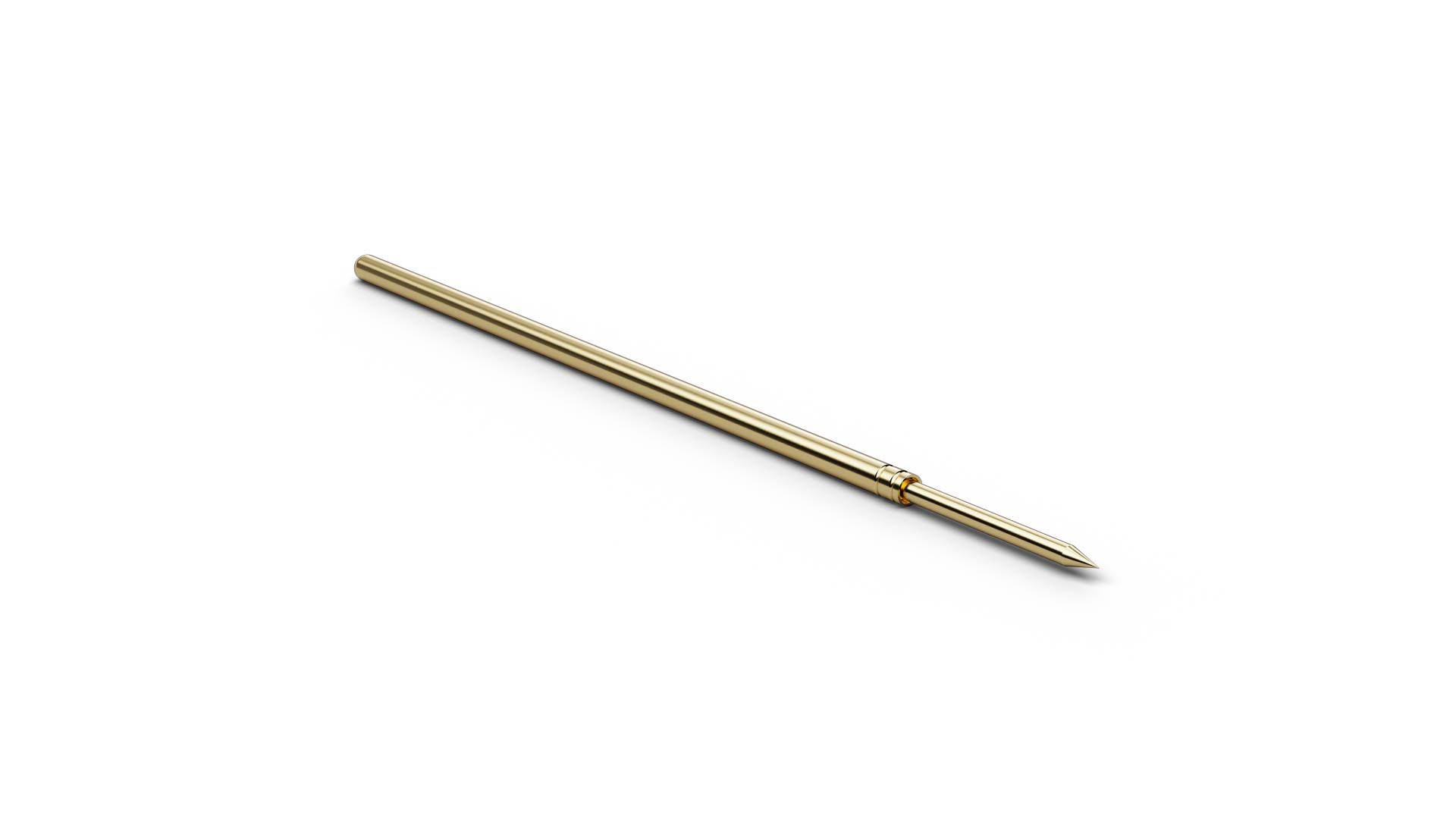

F07518S064L200ML (item number 1122794) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 18 (Conical 30°), F07518S064L200ML combines ICT/FCT use with a geometry intended for solder pads and vias. F07518S064L200ML combines a pitch of 1.9 mm / 75 mil with tip style 18 (Conical 30°) and a tip diameter of 0.64 mm. For F07518S064L200ML, spring force is 200 cN at a nominal travel of 4.3 mm. F07518S064L200ML is rated for 4 A continuous current with a typical contact resistance of 50 mΩ. The plunger in F07518S064L200ML is made of steel and uses Longtime Gold plating.
