기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H100 |
| 거리(mm/mil) | 2,54 / 100 |
| 치수 | |
|---|---|
| 전체 길이(mm) | 57 |
| 프레스 링 직경(mm) | 1.81 |
| 외경(mm) | 1.68 |
| 칼라 높이(mm) | 0.7 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Nickel silver, Gold |
| 기계적 사양 | |
|---|---|
| 연결 | Wire Wrap |
| 전기적 사양 | |
|---|---|
| 연속 전류(A) | 5 |
Beschreibung des Produkts

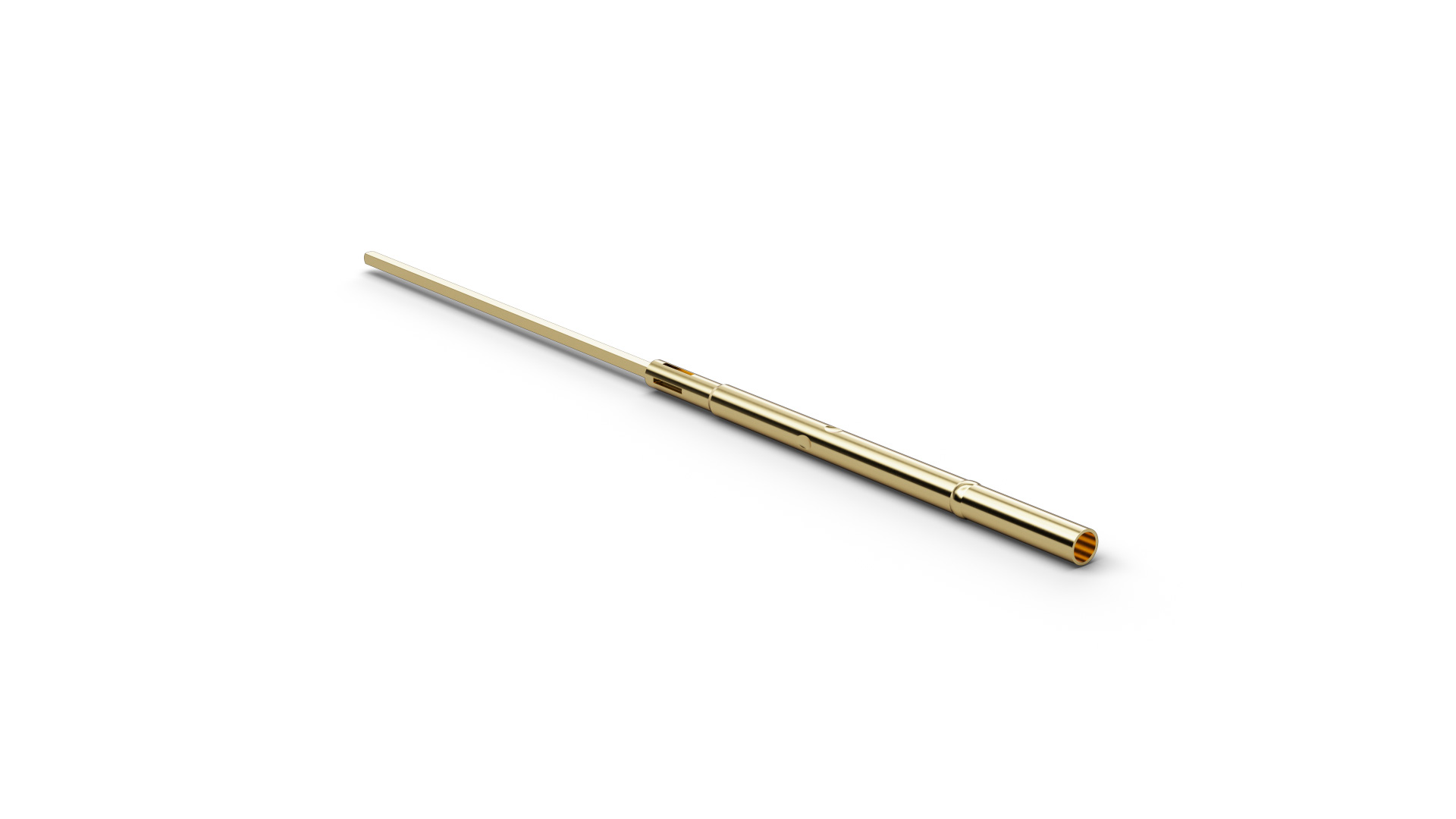

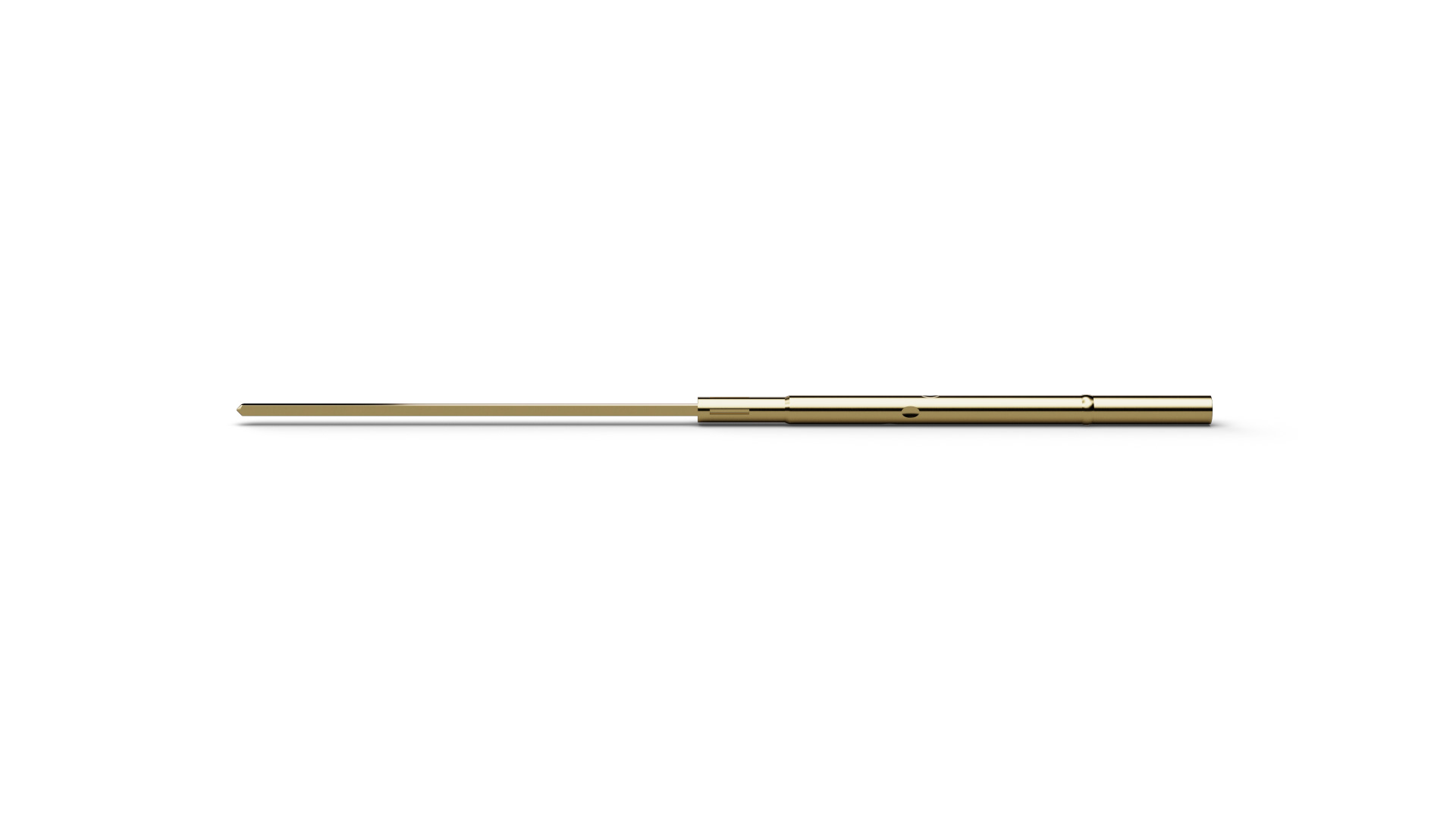

H100WW27-7.6 (item number 1169637) is a receptacle for a compatible Contact Probe. H100WW27-7.6 defines the installed position and supports controlled probe replacement during maintenance or product changes. The electrical connection of H100WW27-7.6 uses a wire wrap. Key installation dimensions are outside diameter 1.68 mm, length 57 mm. The Receptacle H100WW27-7.6 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H100WW27-7.6 is made of nickel silver and is gold-plated.
