Technical data
| General | |
|---|---|
| Type/family | H100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Dimensions | |
|---|---|
| Total length (mm) | 57 |
| Press ring diameter (mm) | 1.81 |
| Outer diameter (mm) | 1.68 |
| Collar height (mm) | 0.7 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Nickel silver, Gold |
| Mechanical specifications | |
|---|---|
| Connection | Wire Wrap |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
Beschreibung des Produkts

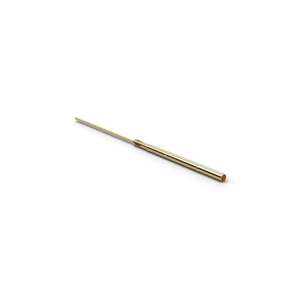

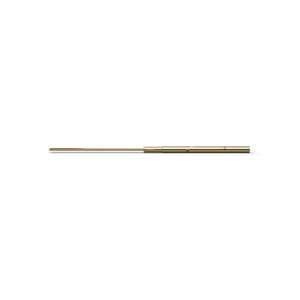

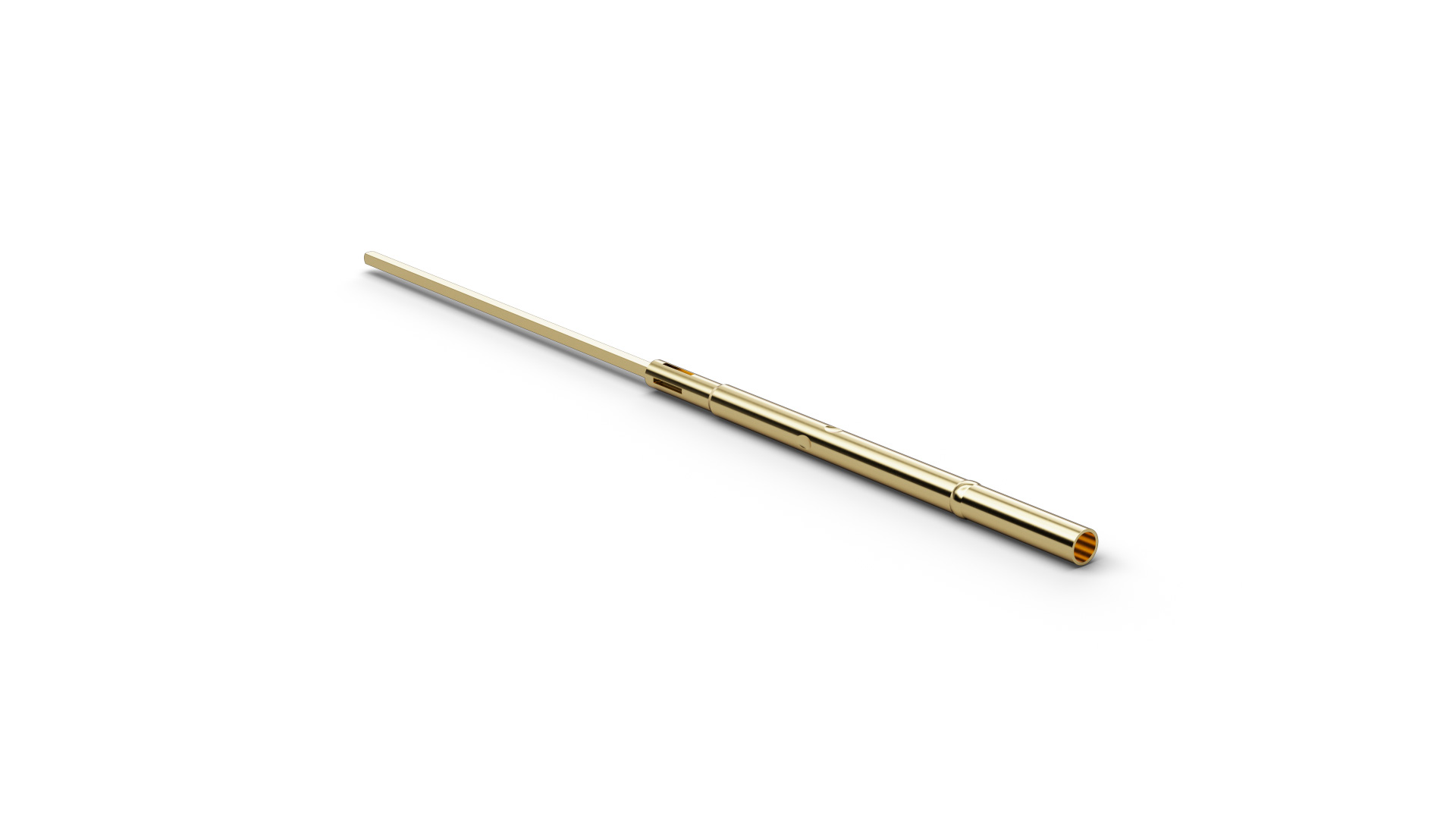

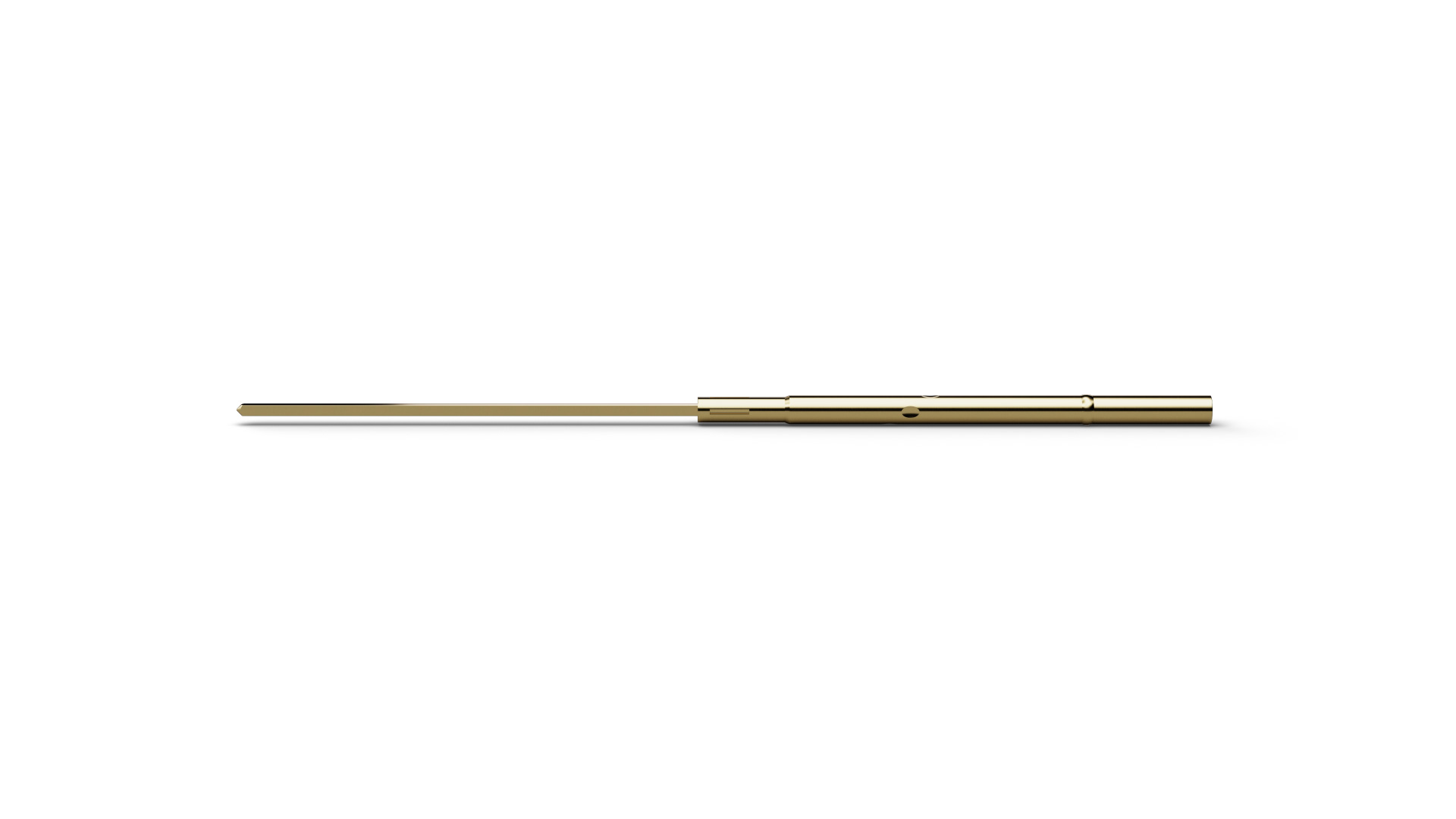

H100WW27-7.6 (item number 1169637) is a receptacle for a compatible Contact Probe. H100WW27-7.6 defines the installed position and supports controlled probe replacement during maintenance or product changes. The electrical connection of H100WW27-7.6 uses a wire wrap. Key installation dimensions are outside diameter 1.68 mm, length 57 mm. The Receptacle H100WW27-7.6 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H100WW27-7.6 is made of nickel silver and is gold-plated.
