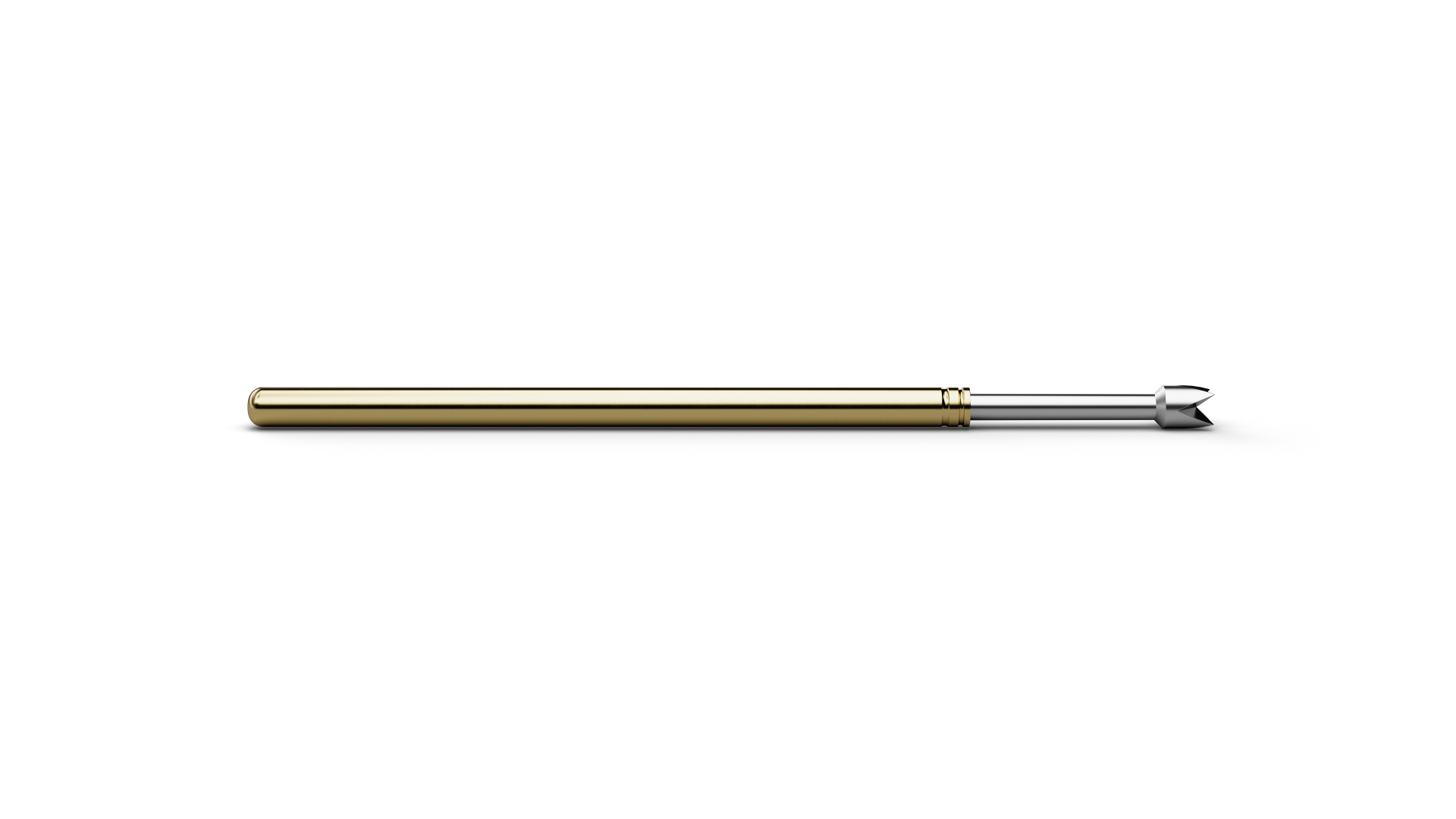

F10014S150P300HP (item number 1001170) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S150P300HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S150P300HP combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10014S150P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. F10014S150P300HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. The P/HP configuration of F10014S150P300HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
