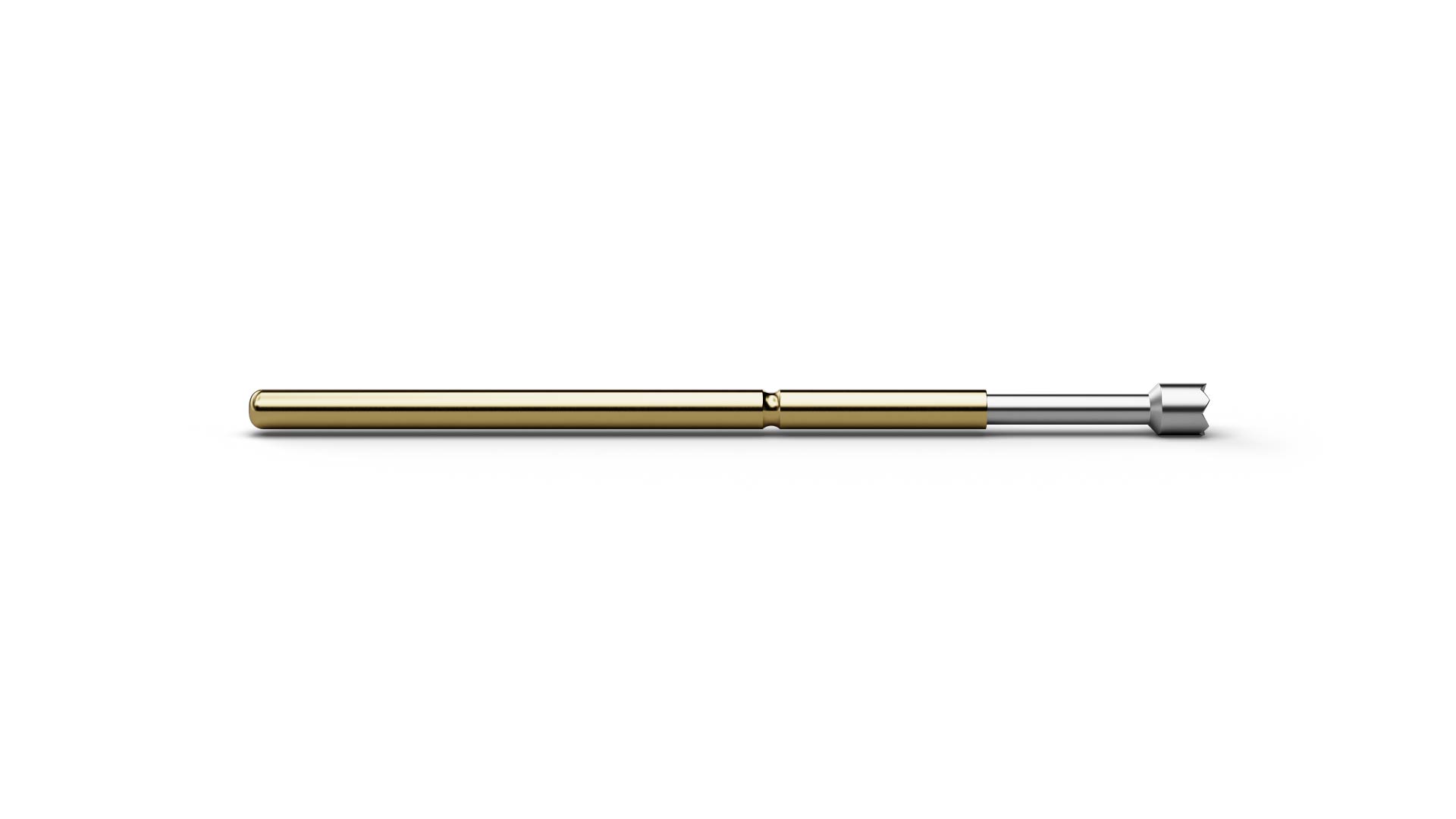

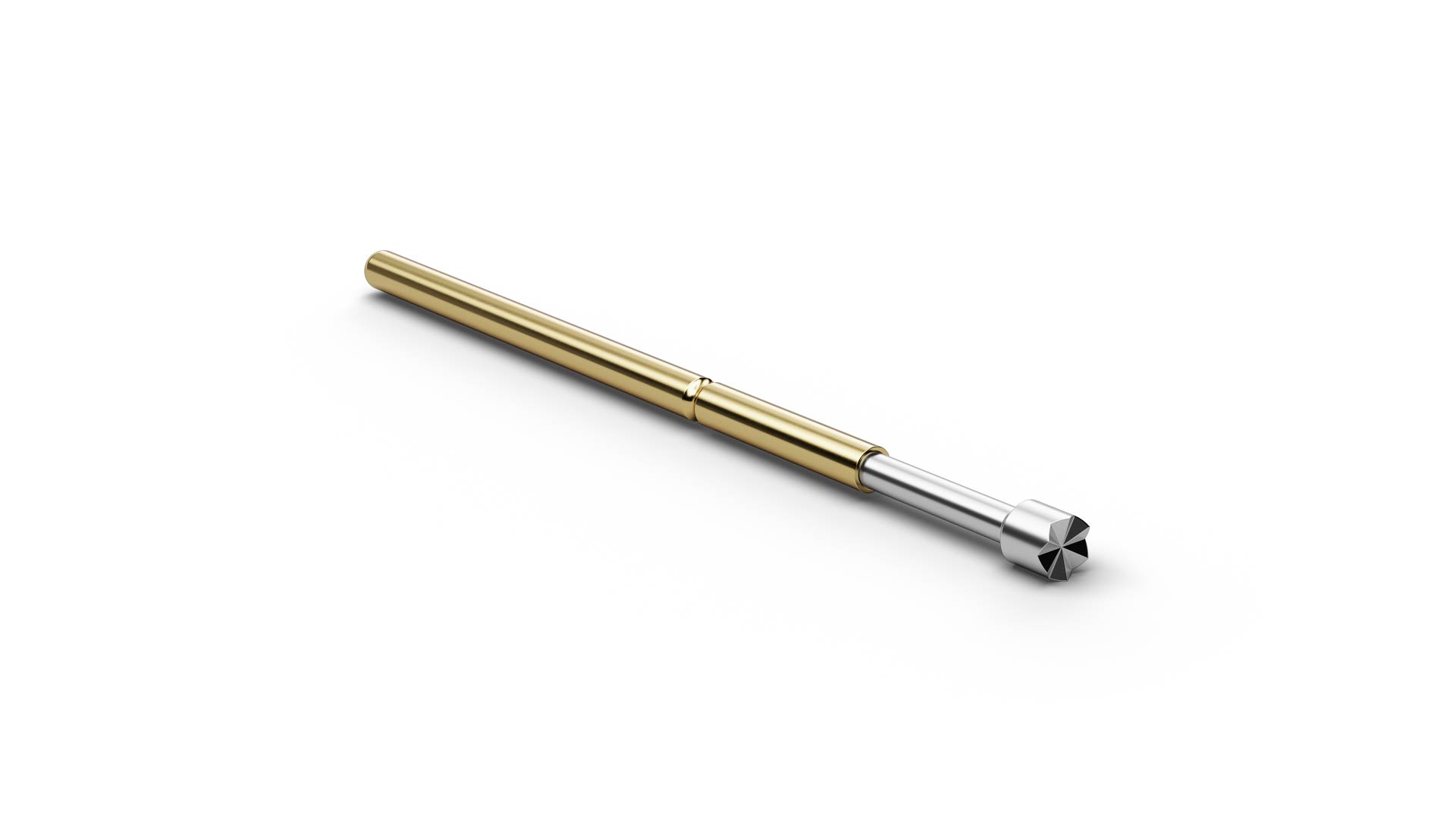

As a Basic Contact Probe, F11109S090N085 (item number 1001409) establishes a spring-loaded electrical connection to the test point. With tip style 09 (6-point crown stepped), F11109S090N085 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F11109S090N085 combines a pitch of 1.27 mm / 50 mil with tip style 09 (6-point crown stepped) and a tip diameter of 0.9 mm. F11109S090N085 operates with 85 cN spring force and 2 mm nominal travel. F11109S090N085 is rated for 3 A continuous current with a typical contact resistance of 65 mΩ. The plunger in F11109S090N085 is made of steel and is Nickel-plated.
