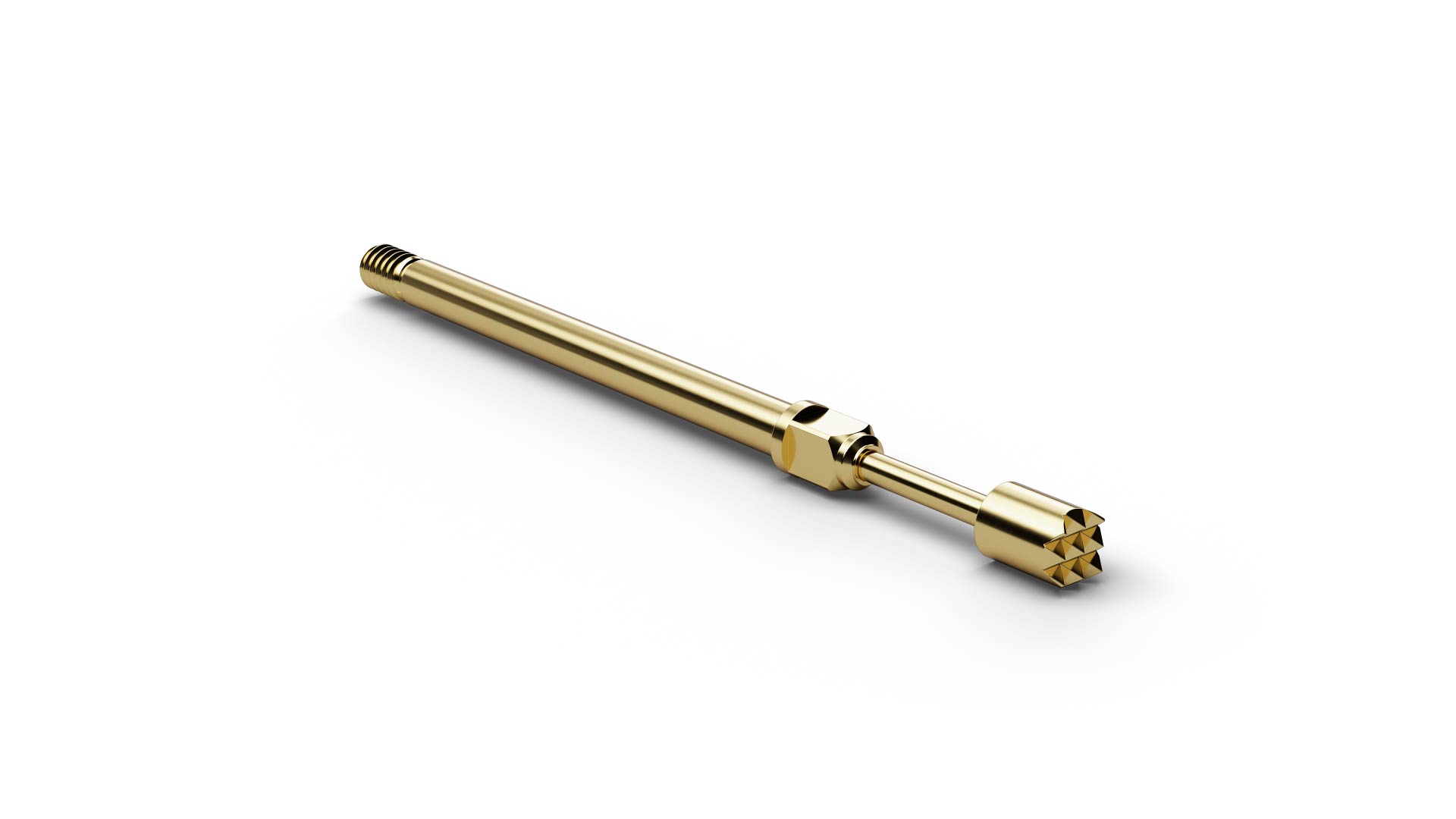

The Basic Threaded Probe F73106B180G150 (item number 1001421) is a spring-loaded Contact Probe with threaded installation. The threaded mounting of F73106B180G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73106B180G150 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73106B180G150 uses an M1.4 thread. On F73106B180G150, a pitch of 2.4 mm / 94 mil is combined with 150 cN spring force and 3.5 mm nominal travel. F73106B180G150 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ.
