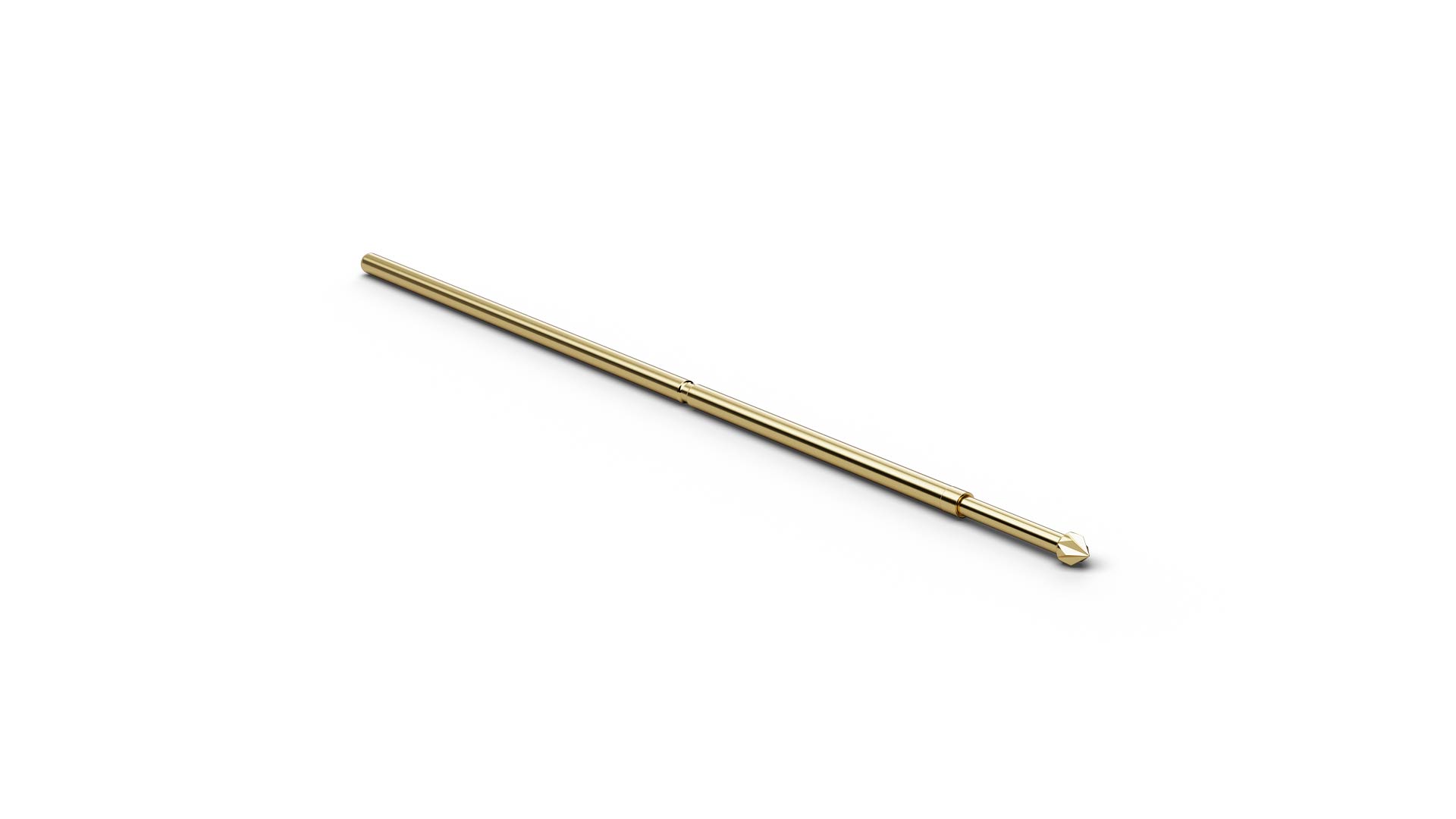

The Basic Contact Probe F76807S090L130 (item number 1001611) is a spring-loaded probe for temporary electrical contact with test points. With tip style 07 (Hexagonal 90° stepped), F76807S090L130 combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F76807S090L130 combines a pitch of 1.27 mm / 50 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 0.9 mm. F76807S090L130 operates with 130 cN spring force and 3.2 mm nominal travel. The electrical rating of F76807S090L130 combines 3 A continuous current with 20 mΩ typical contact resistance. The plunger in F76807S090L130 is made of steel and uses Longtime Gold plating.
