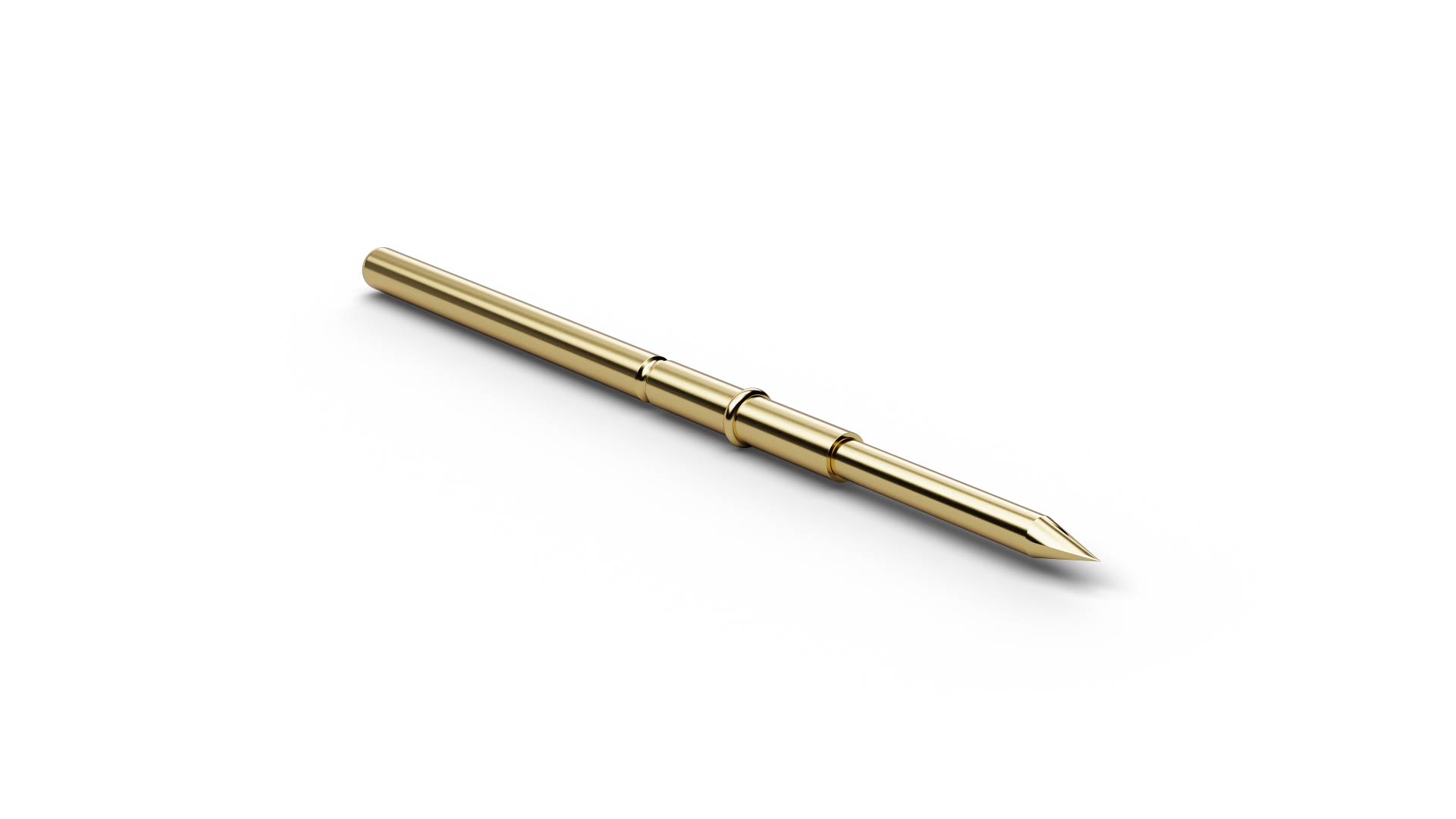

As a Basic Contact Probe, F78618B130G300 (item number 1003013) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F78618B130G300 combines ICT/FCT use with a geometry intended for solder pads and vias. F78618B130G300 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 1.3 mm. F78618B130G300 operates with 300 cN spring force and 6.4 mm nominal travel. F78618B130G300 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F78618B130G300 is made of beryllium copper and is gold-plated.
