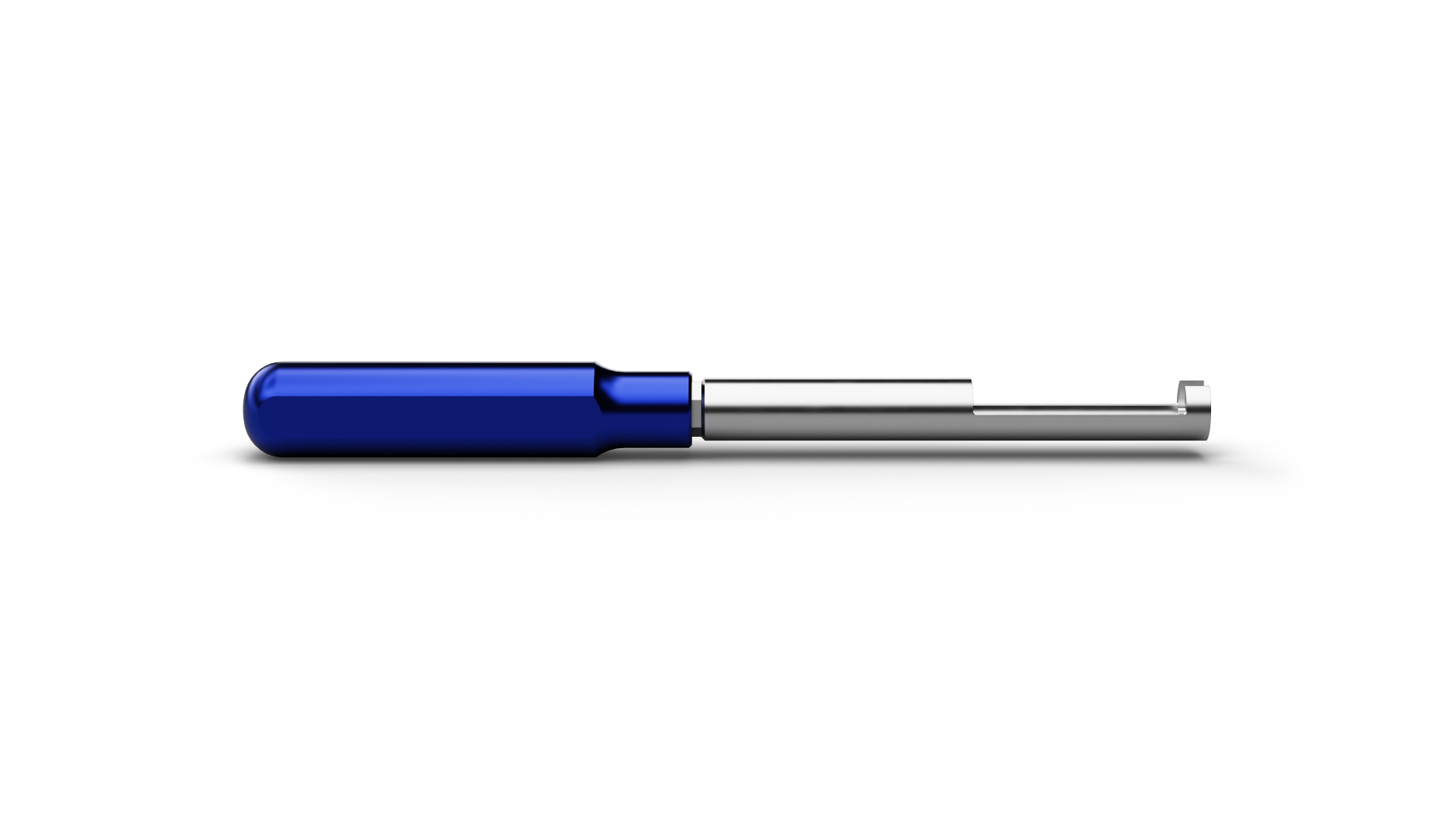

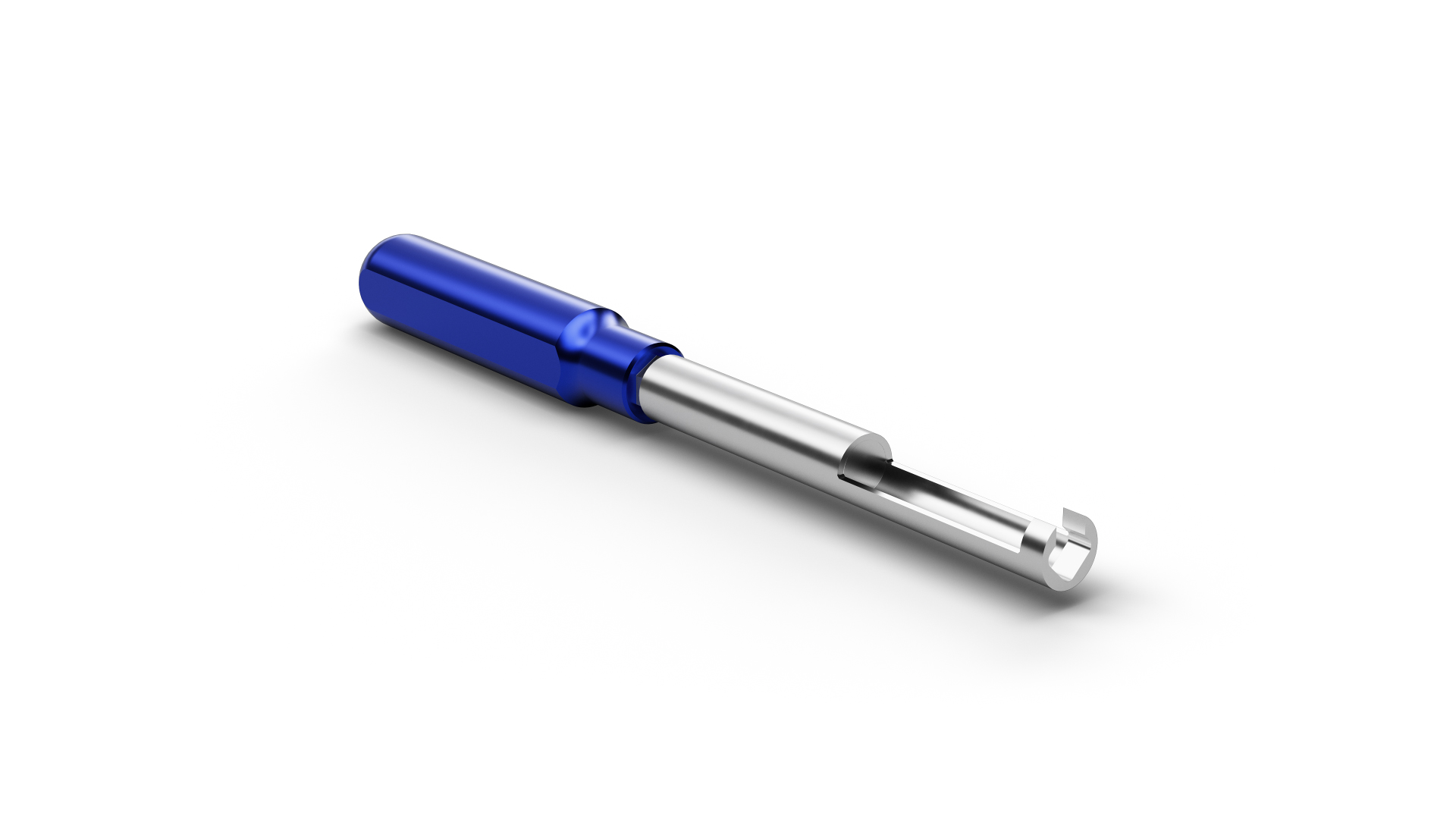

FWZ741 (item number 1003601) is an assembly tool for Contact Probes and Receptacles or related test components. FWZ741 is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. FWZ741 supports precise assembly, adjustment or maintenance of the associated contacting components. For handling, the relevant data includes tool type FWZ741, tool interface Hakenschlüssel, tool size 4 mm, length 100 mm, outside diameter 6.5 mm, insertion depth 24.5 mm. The geometry of FWZ741 is matched to controlled assembly and helps reduce the risk of damage to the Contact Probe, Receptacle or test fixture.
