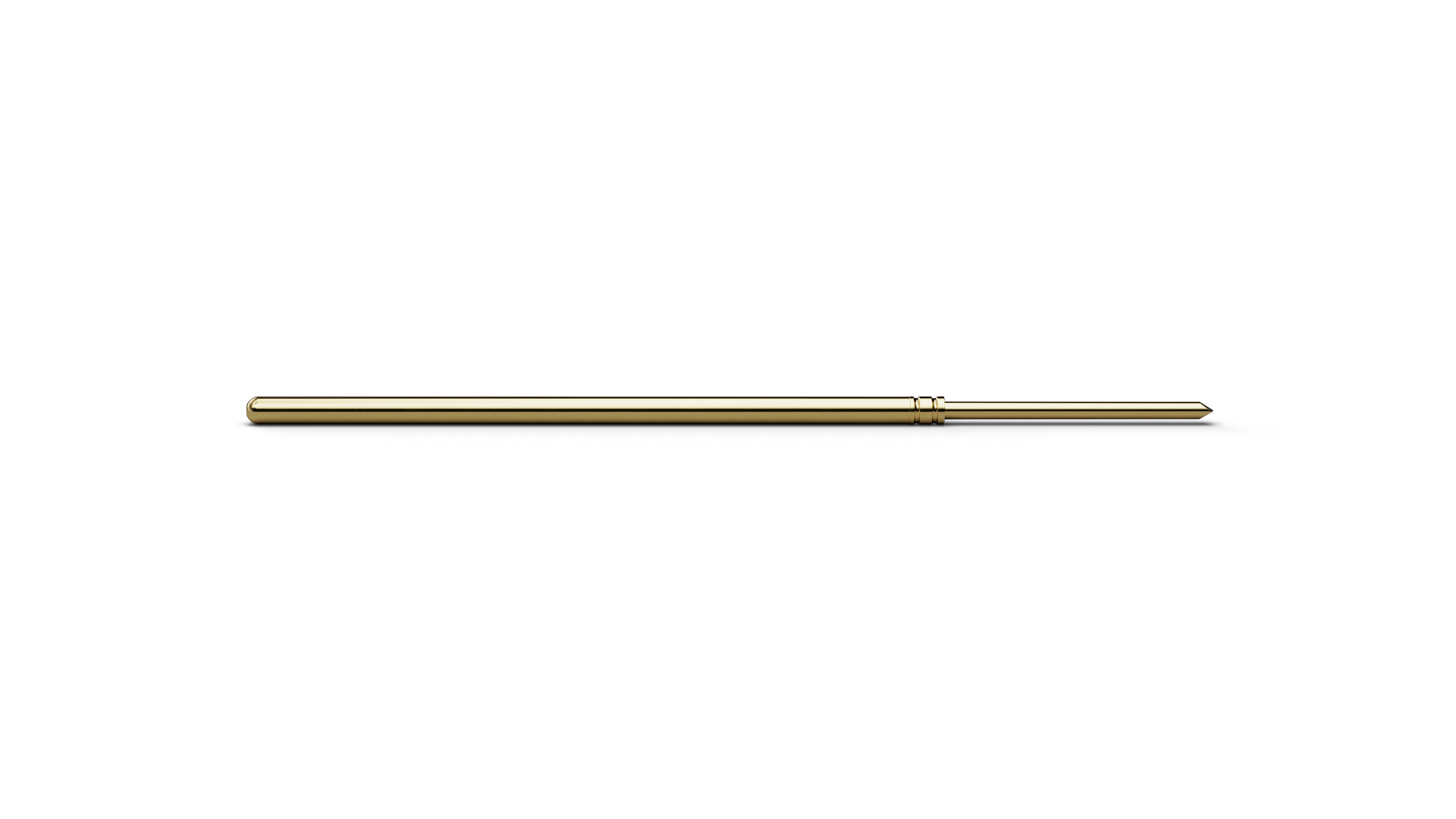

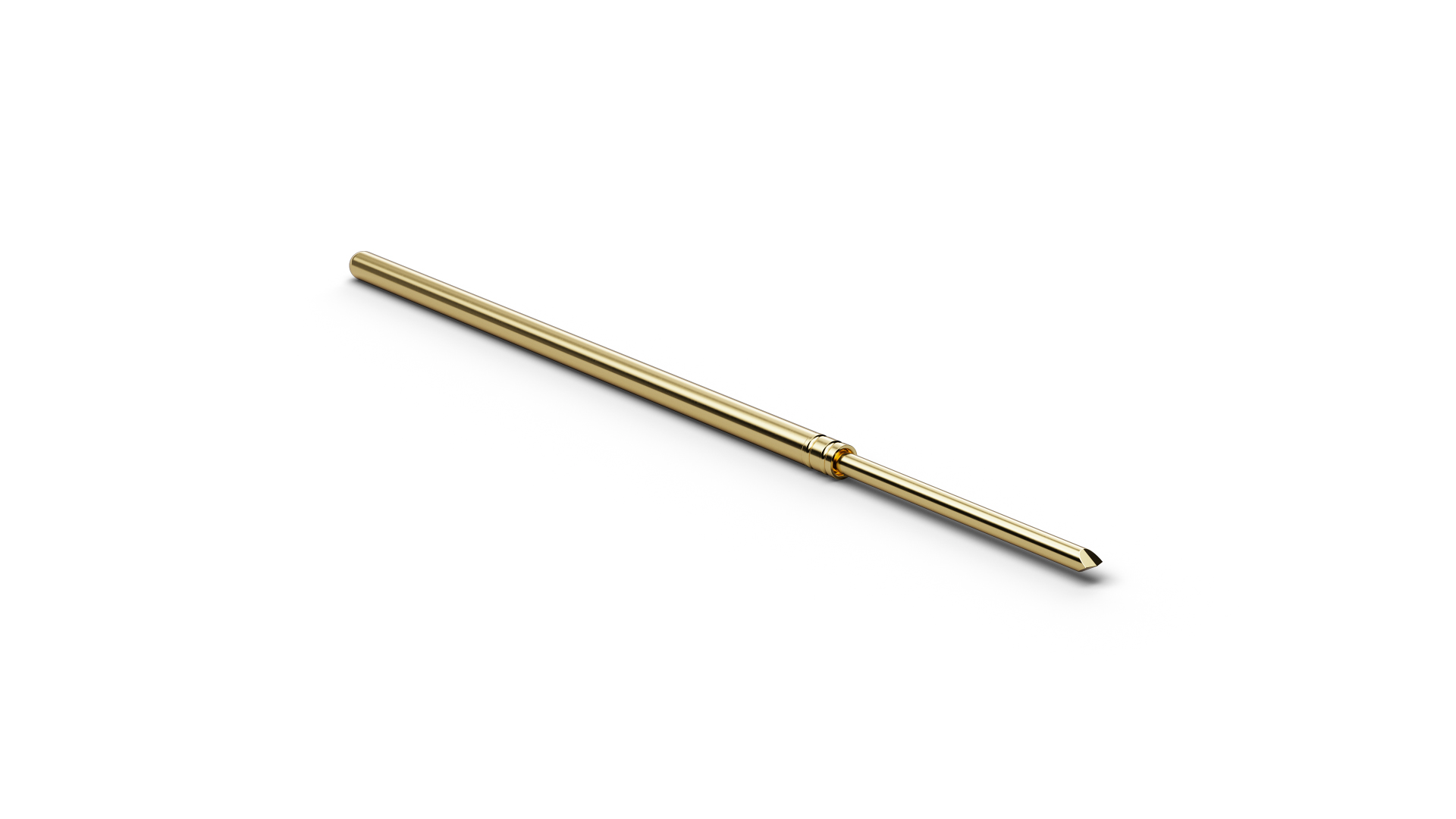

F07538S064L150L (item number 1005035) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 38 (Square lance 140°), F07538S064L150L combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07538S064L150L combines a pitch of 1.9 mm / 75 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.64 mm. F07538S064L150L operates with 150 cN spring force and 4.3 mm nominal travel. The electrical rating of F07538S064L150L combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07538S064L150L is made of steel and uses Longtime Gold plating.
