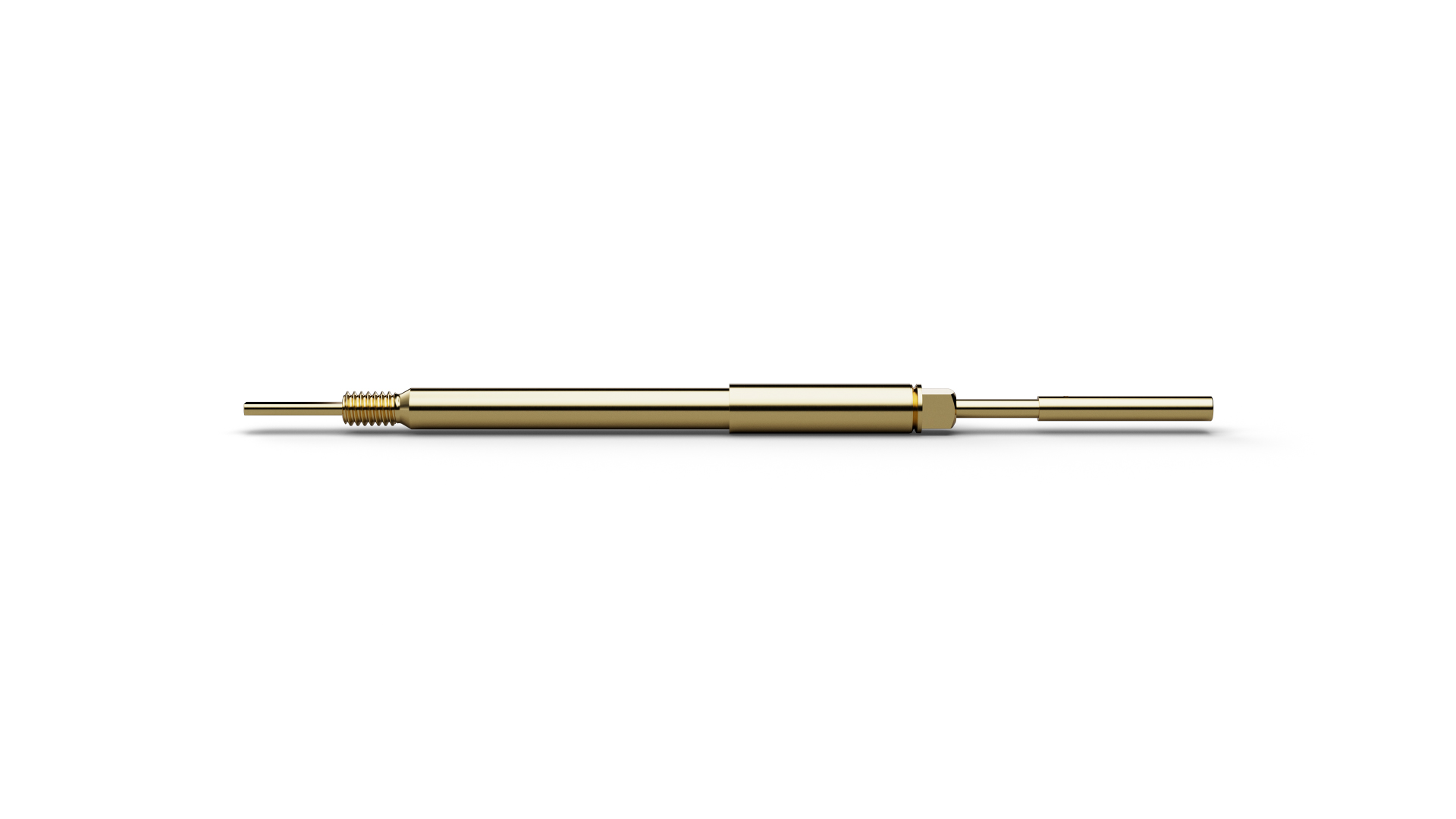

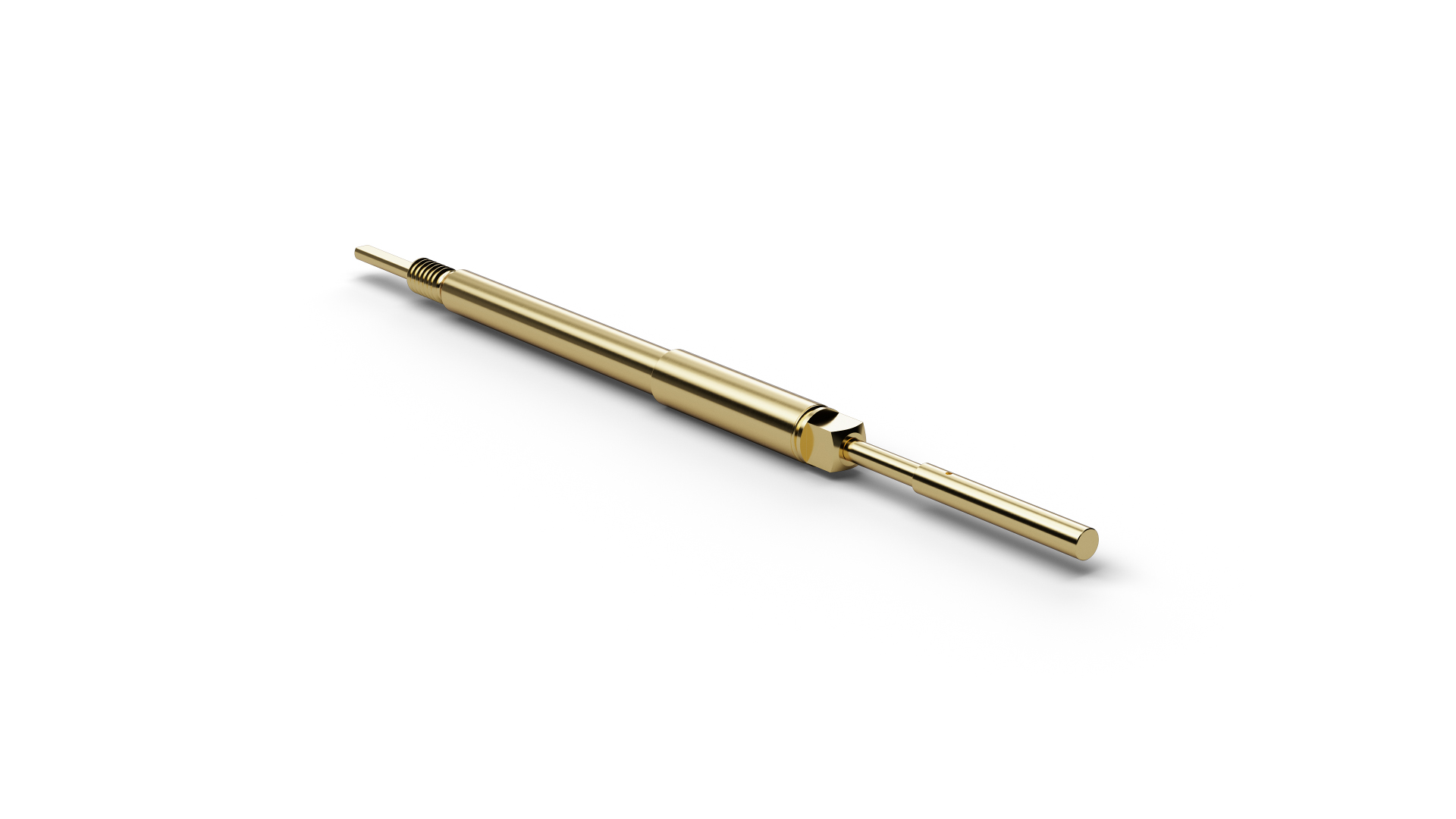

The Push Back Probe VF416B180G05 (item number 1005150) is designed to verify that terminals are correctly locked in connector housings. VF416B180G05 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. VF416B180G05 operates with 500 cN spring force and 5 mm nominal travel. Pointing accuracy for VF416B180G05 is specified as ±0.1 mm. The electrical rating of VF416B180G05 combines 10 A continuous current with 30 mΩ typical contact resistance. For installation, VF416B180G05 uses an M2.5 x 0.35 thread.
