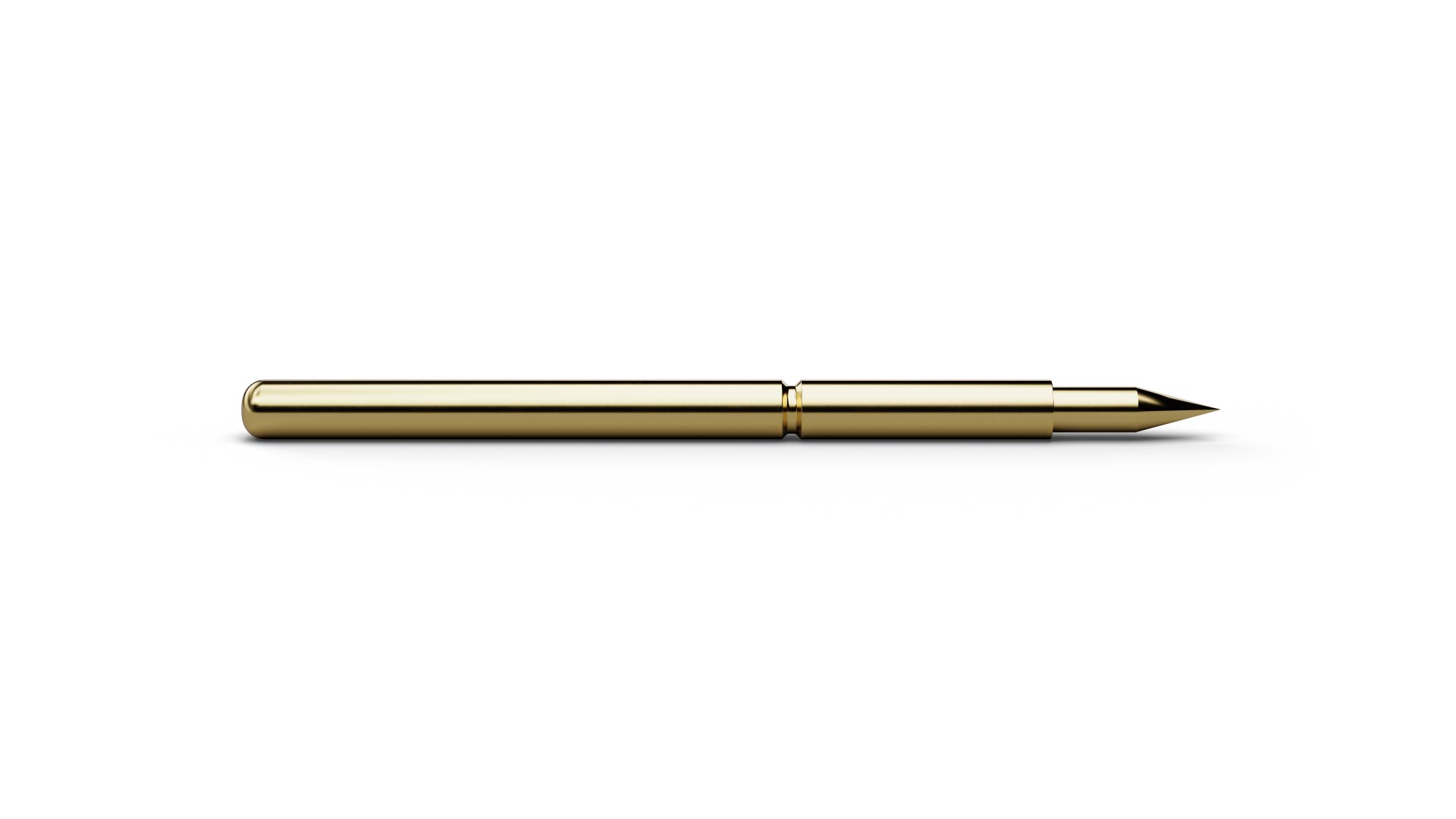

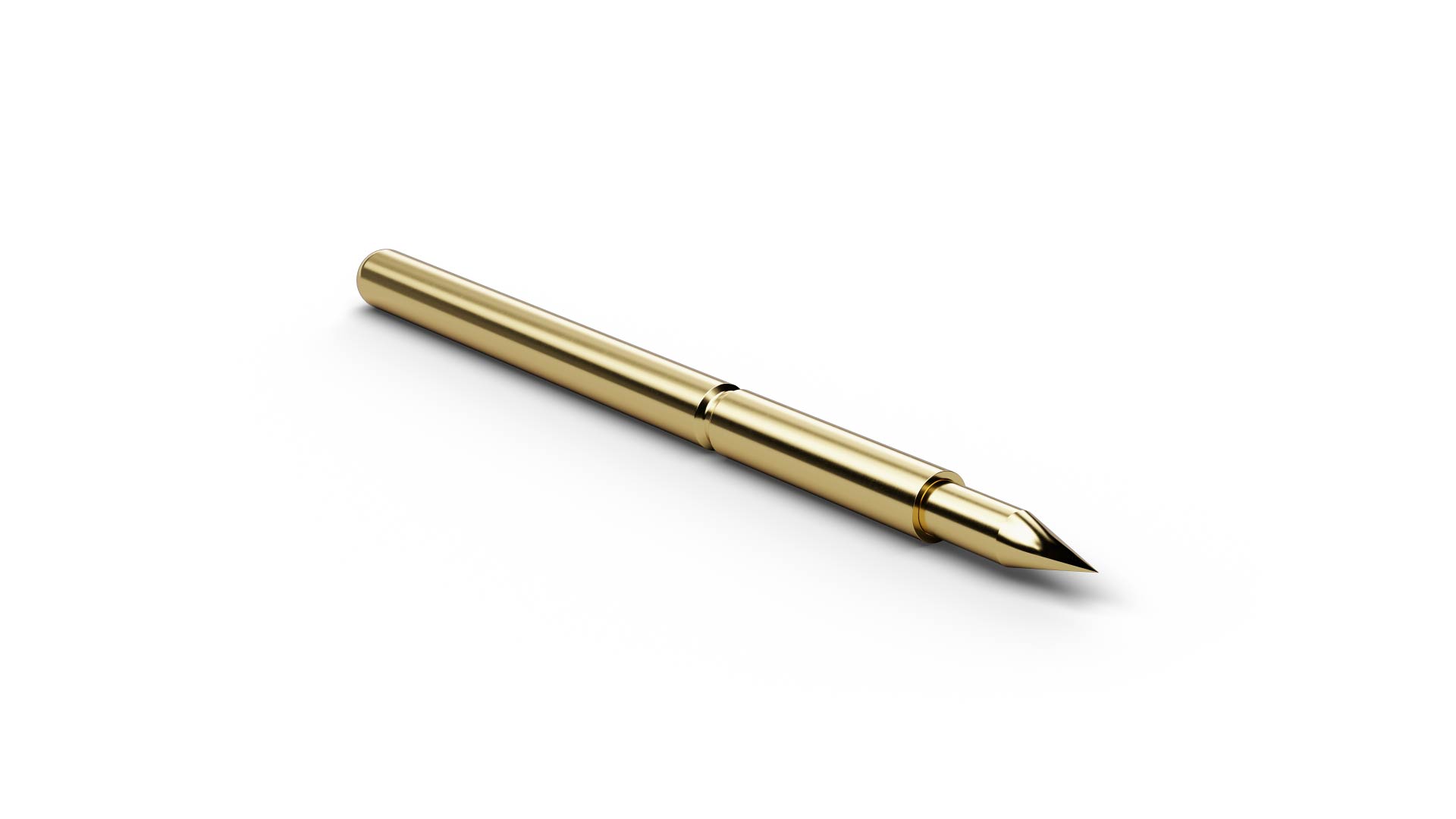

F50418B105G100L224 (item number 1006323) is a Contact Probe for defined interfaces within electronic test setups. F50418B105G100L224 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. F50418B105G100L224 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 1.05 mm. For F50418B105G100L224, spring force is 100 cN at a nominal travel of 2 mm. For F50418B105G100L224, the specified continuous current is 5 A.
