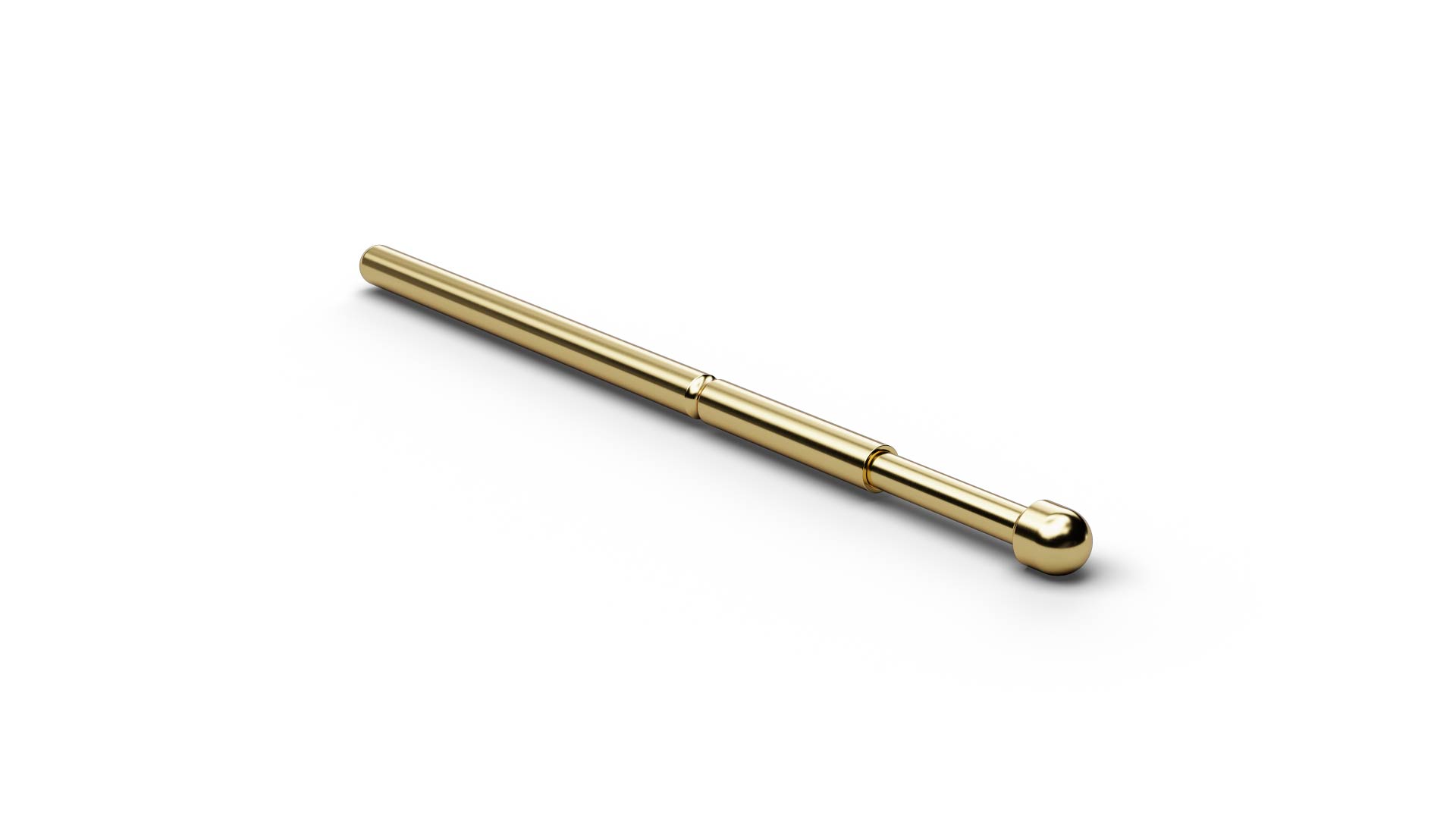

F11212B090G040 (item number 1006641) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 12 (Spherical stepped), F11212B090G040 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F11212B090G040 combines a pitch of 1.27 mm / 50 mil with tip style 12 (Spherical stepped) and a tip diameter of 0.9 mm. F11212B090G040 operates with 40 cN spring force and 2 mm nominal travel. F11212B090G040 is rated for 3 A continuous current with a typical contact resistance of 35 mΩ. The plunger in F11212B090G040 is made of beryllium copper and is gold-plated.
