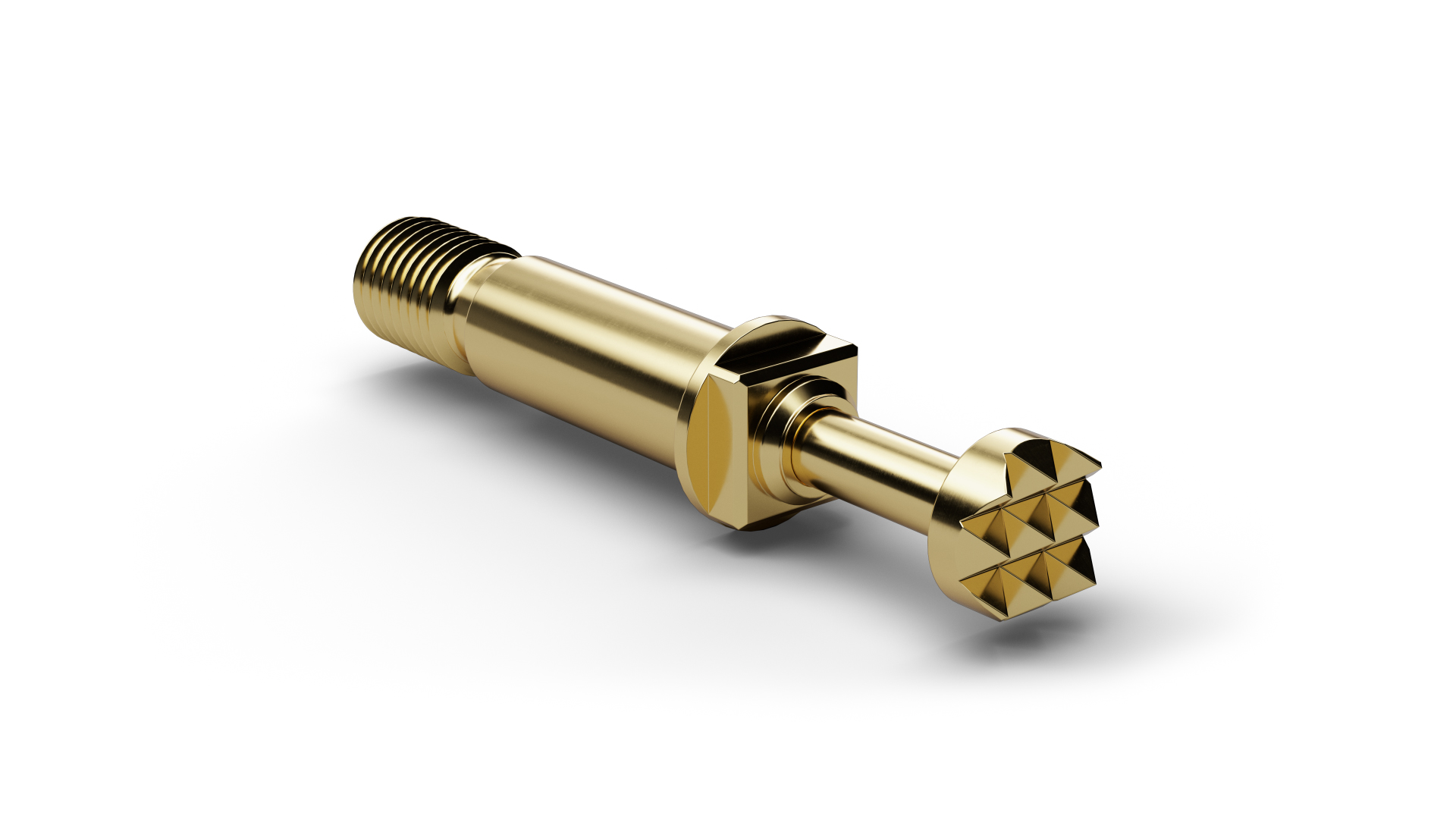

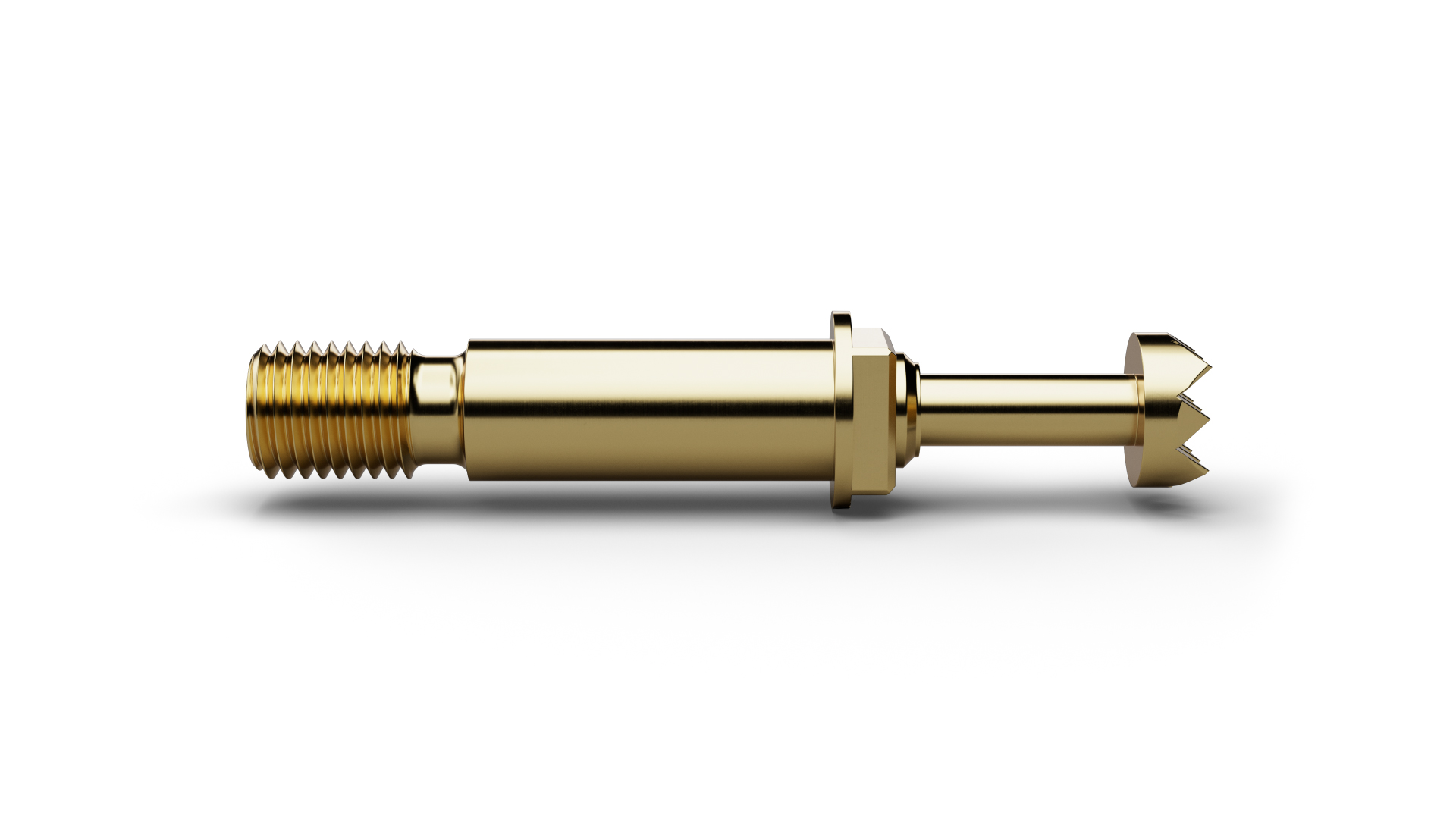

F72206B180G100 (item number 1006775) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F72206B180G100 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F72206B180G100 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F72206B180G100 uses an M1.6 thread. On F72206B180G100, a pitch of 2.54 mm / 100 mil is combined with 100 cN spring force and 1.5 mm nominal travel. F72206B180G100 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ.
