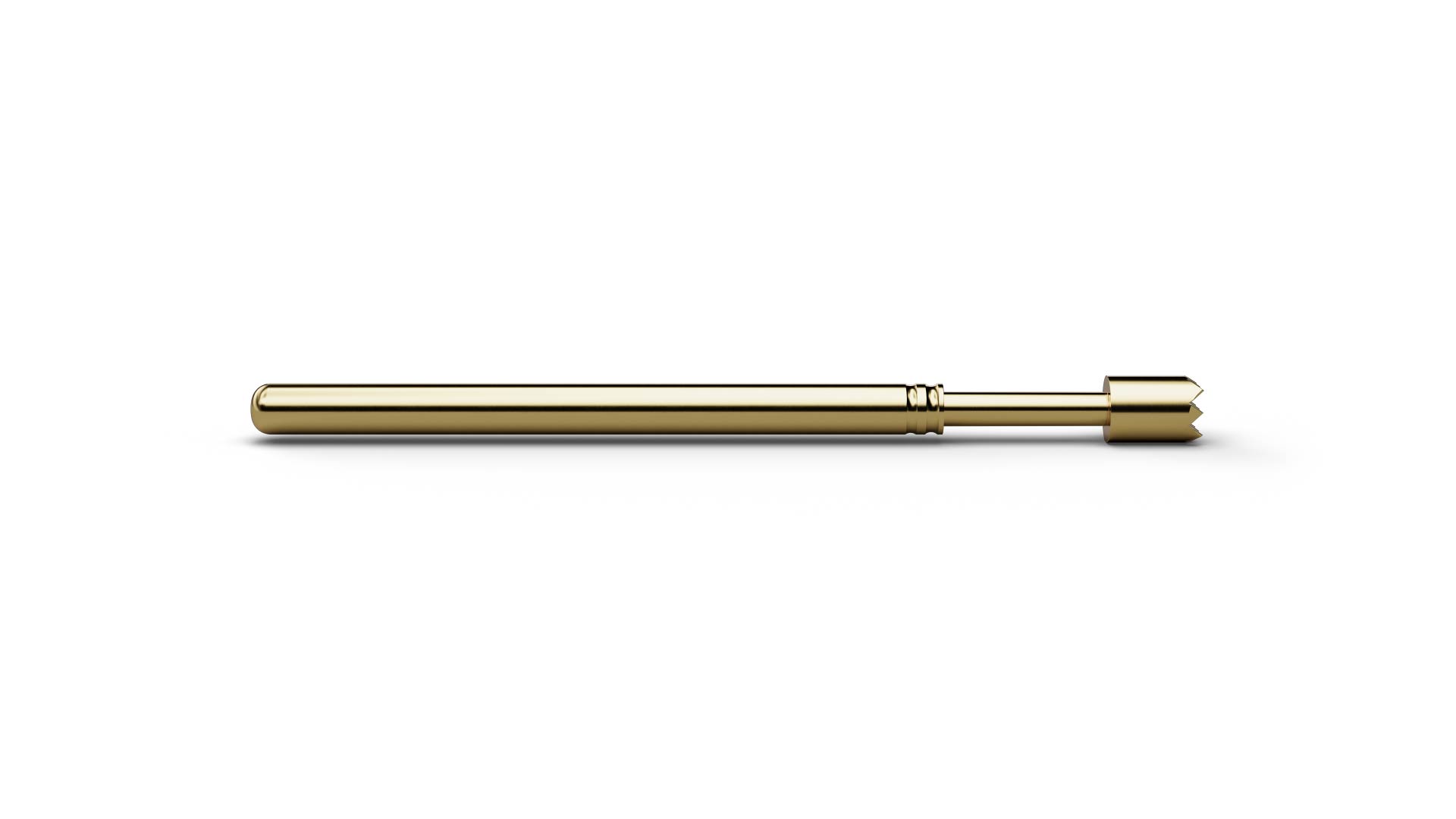

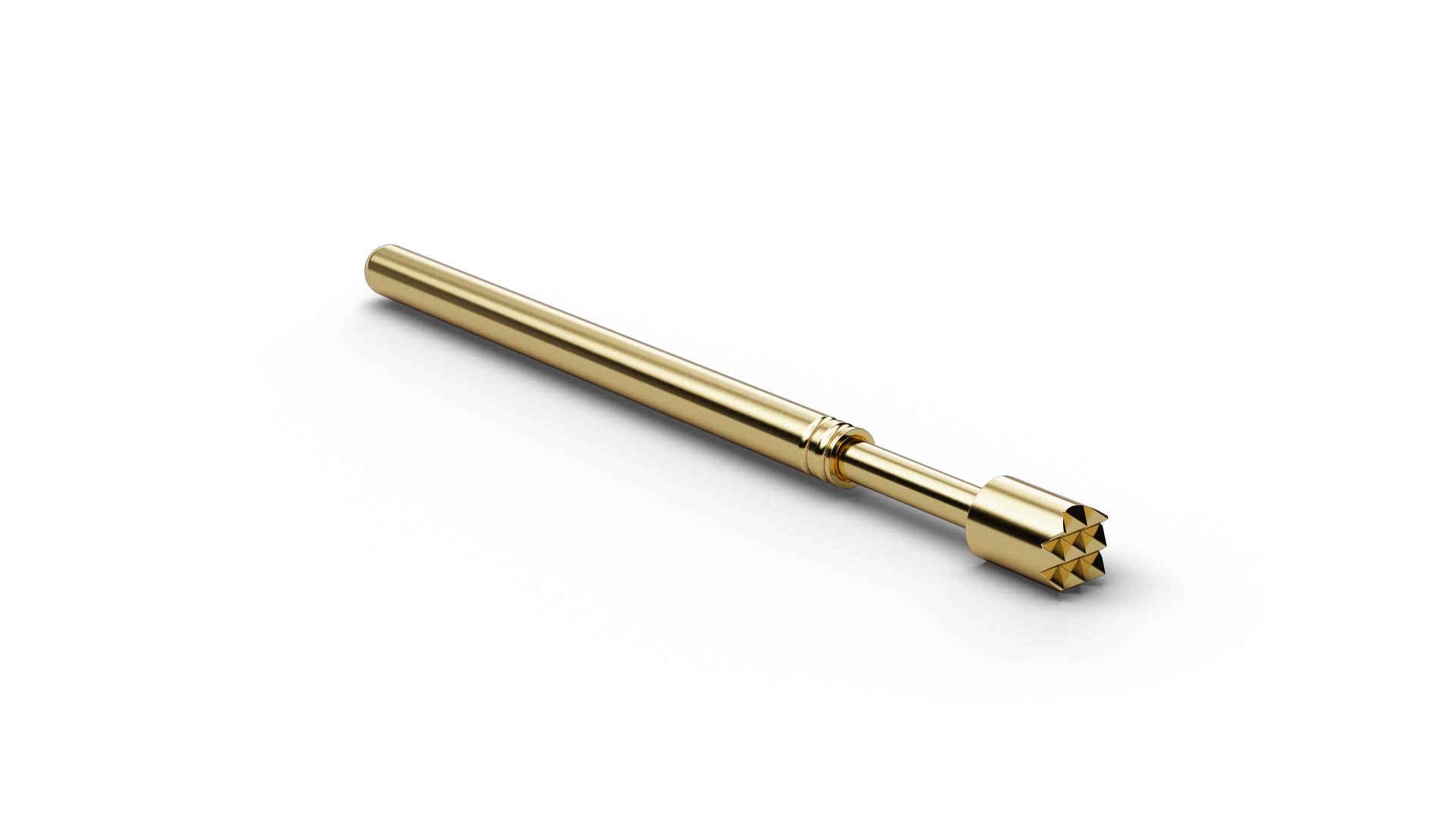

The Basic Contact Probe F77106B180G150 (item number 1007529) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F77106B180G150 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77106B180G150 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.8 mm. For F77106B180G150, spring force is 150 cN at a nominal travel of 3.5 mm. The electrical rating of F77106B180G150 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F77106B180G150 is made of beryllium copper and is gold-plated.
