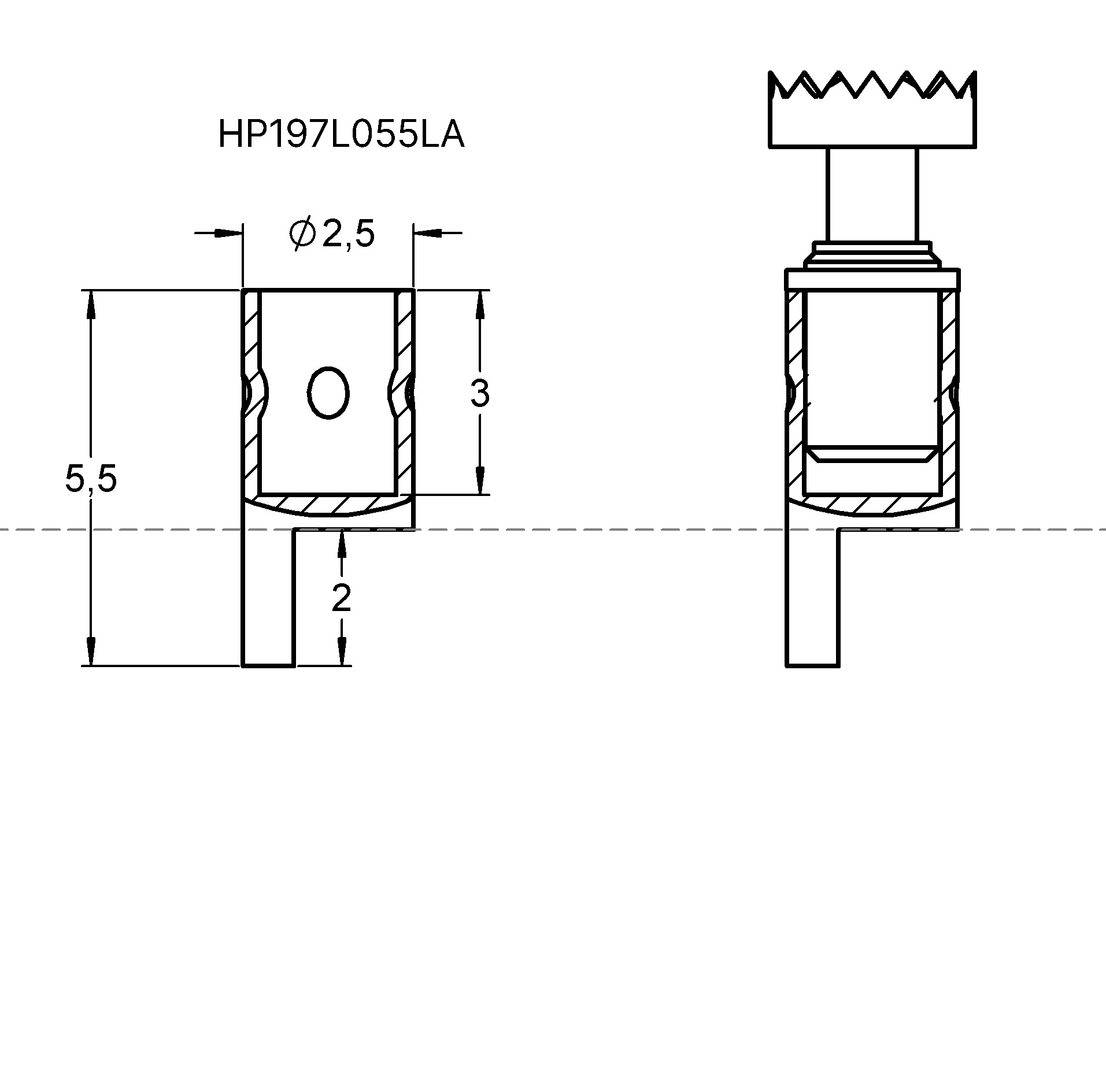

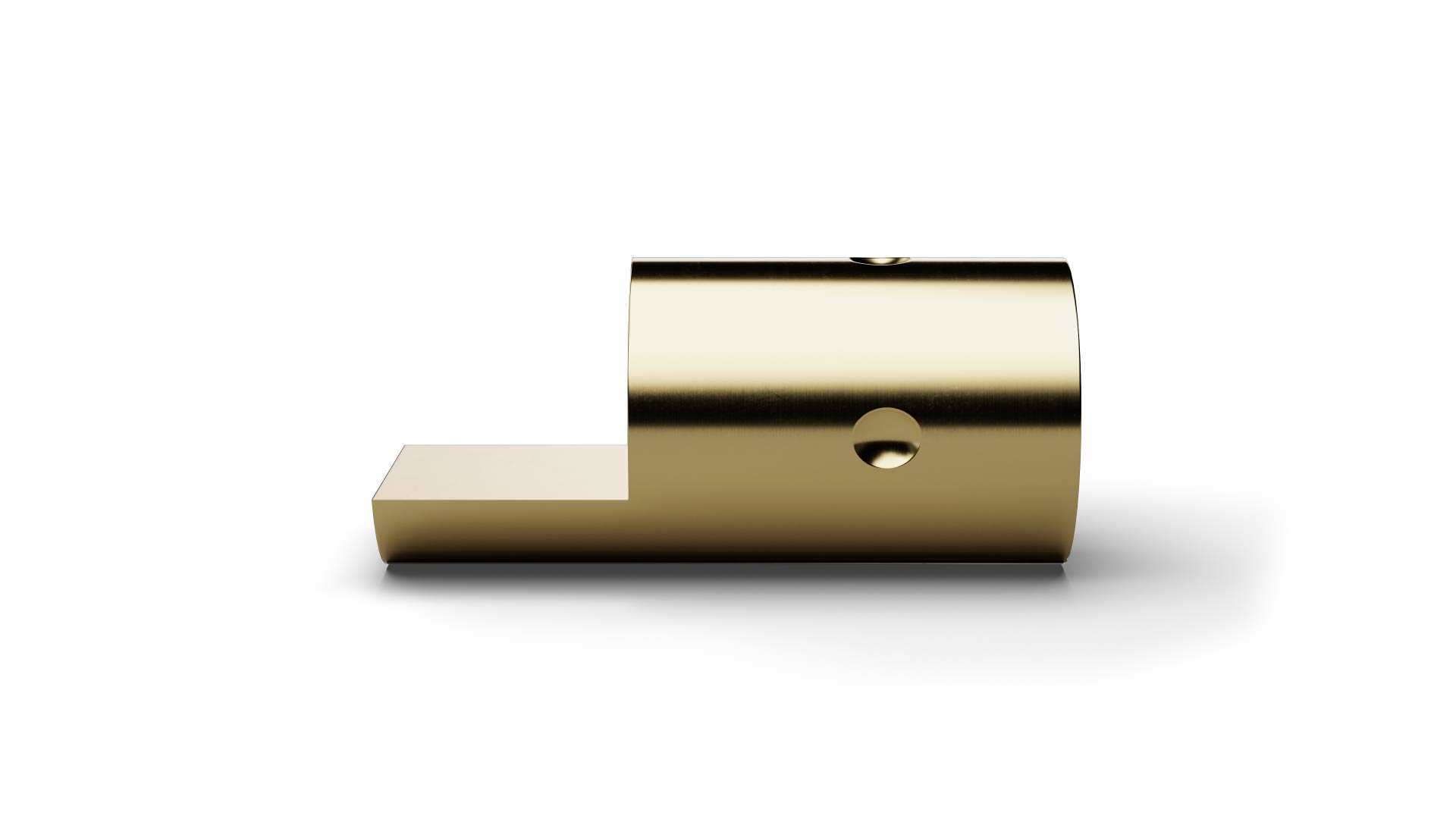

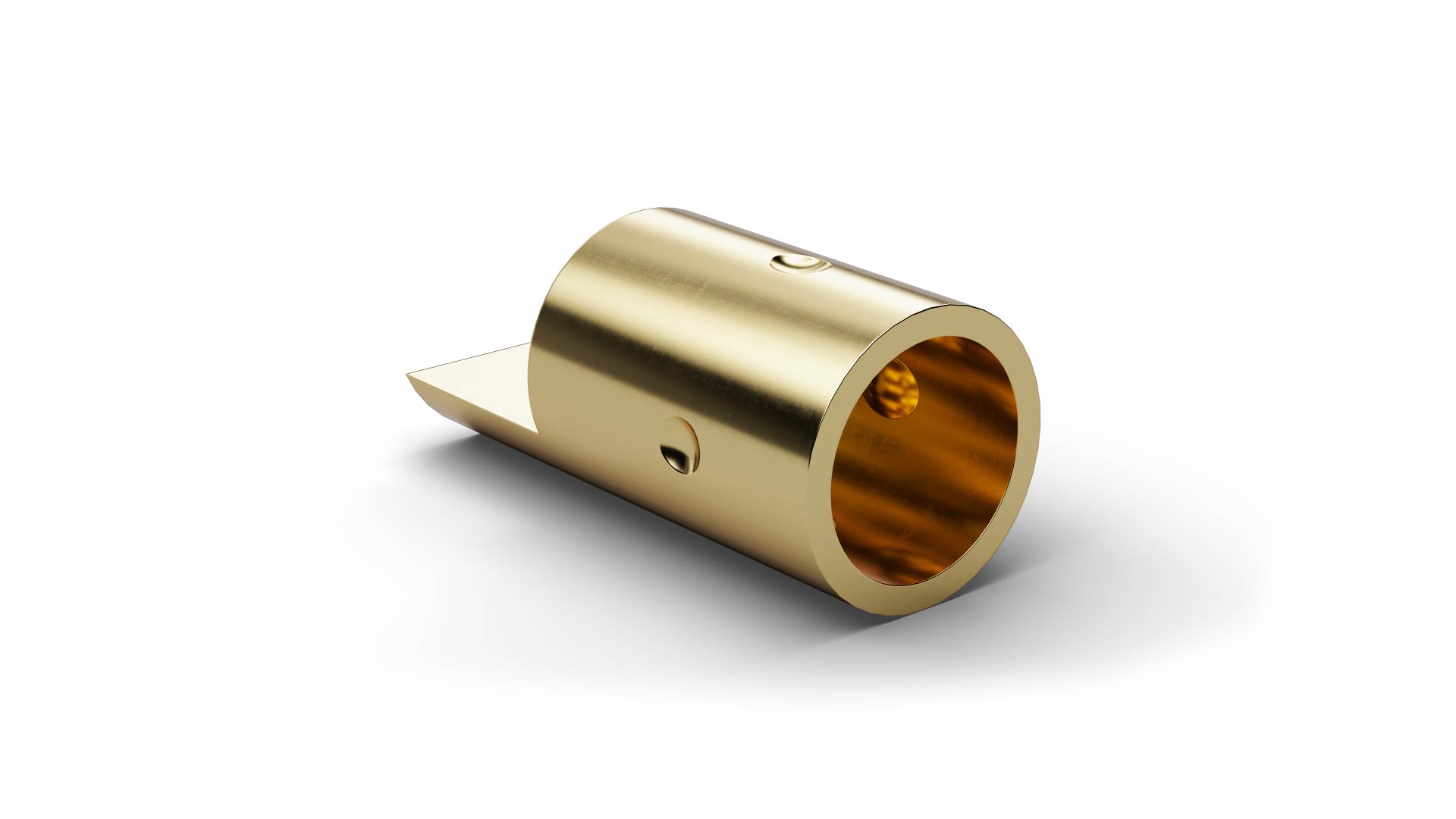

The receptacle HP197L055LA (item number 1008280) guides and positions the compatible Pogo Connector in a defined location within the fixture or contacting assembly. HP197L055LA uses a solder-tight construction for the specified installation concept. The electrical connection of HP197L055LA uses a solder connection. Key installation dimensions are outside diameter 2.5 mm, length 5.5 mm. The Receptacle HP197L055LA is made of brass and is gold-plated. For HP197L055LA, the specified continuous current is 1.5 A.
