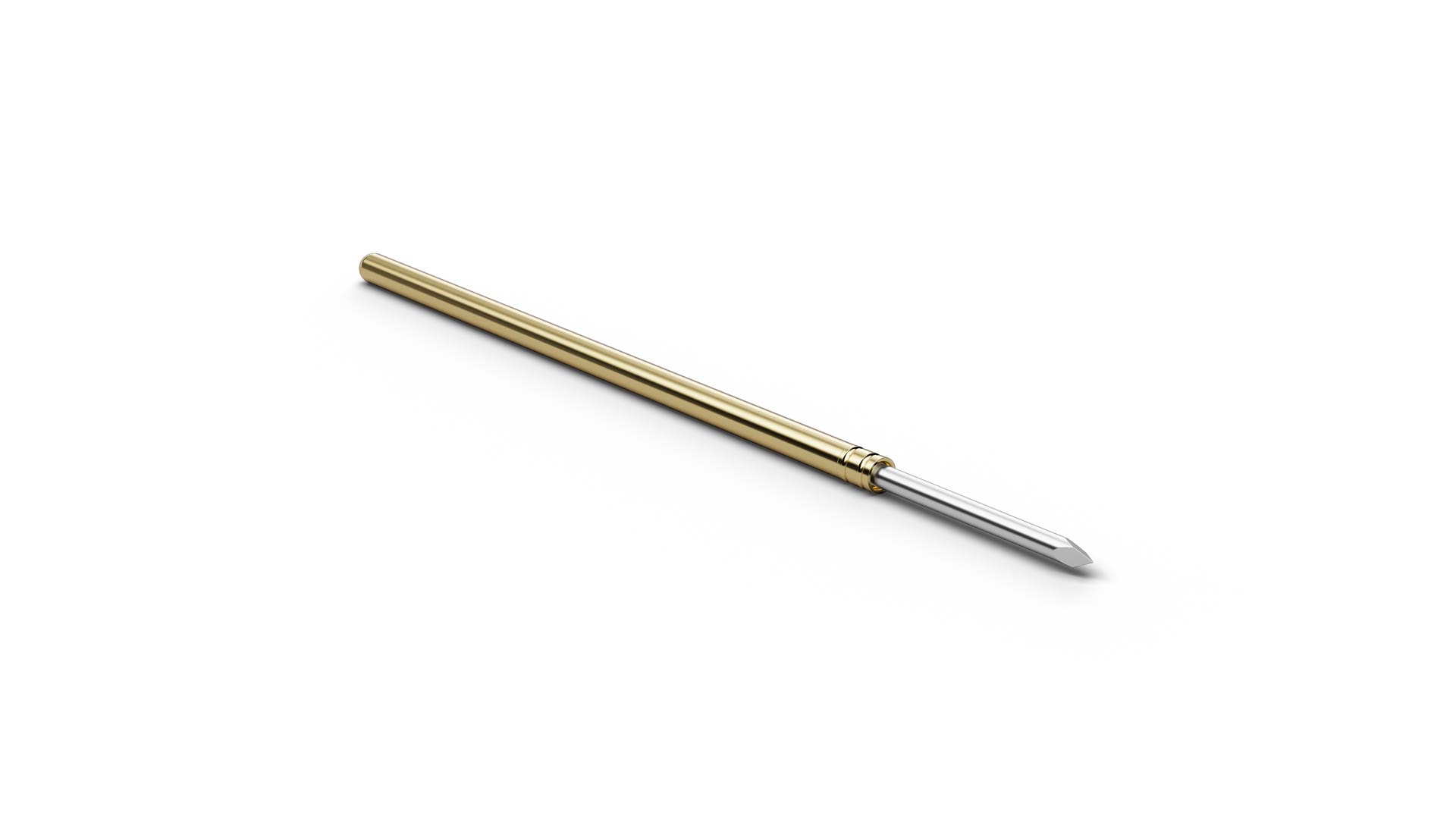

As a Basic Contact Probe, F07562S064P250HP (item number 1010171) establishes a spring-loaded electrical connection to the test point. With tip style 62 (Triangular 30°), F07562S064P250HP combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F07562S064P250HP combines a pitch of 1.9 mm / 75 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.64 mm. F07562S064P250HP operates with 250 cN spring force and 4.3 mm nominal travel. F07562S064P250HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. For demanding test points, F07562S064P250HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
