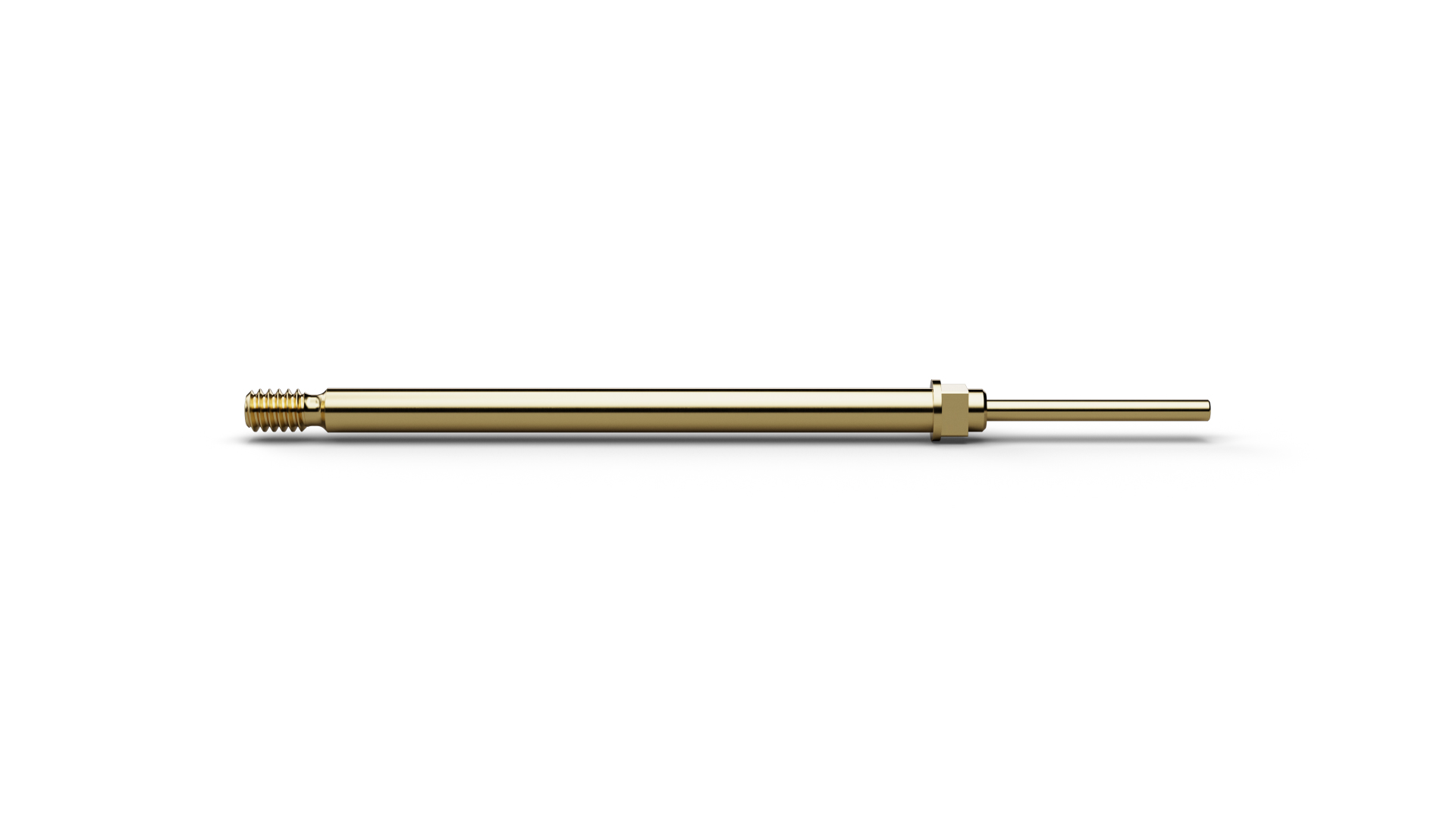

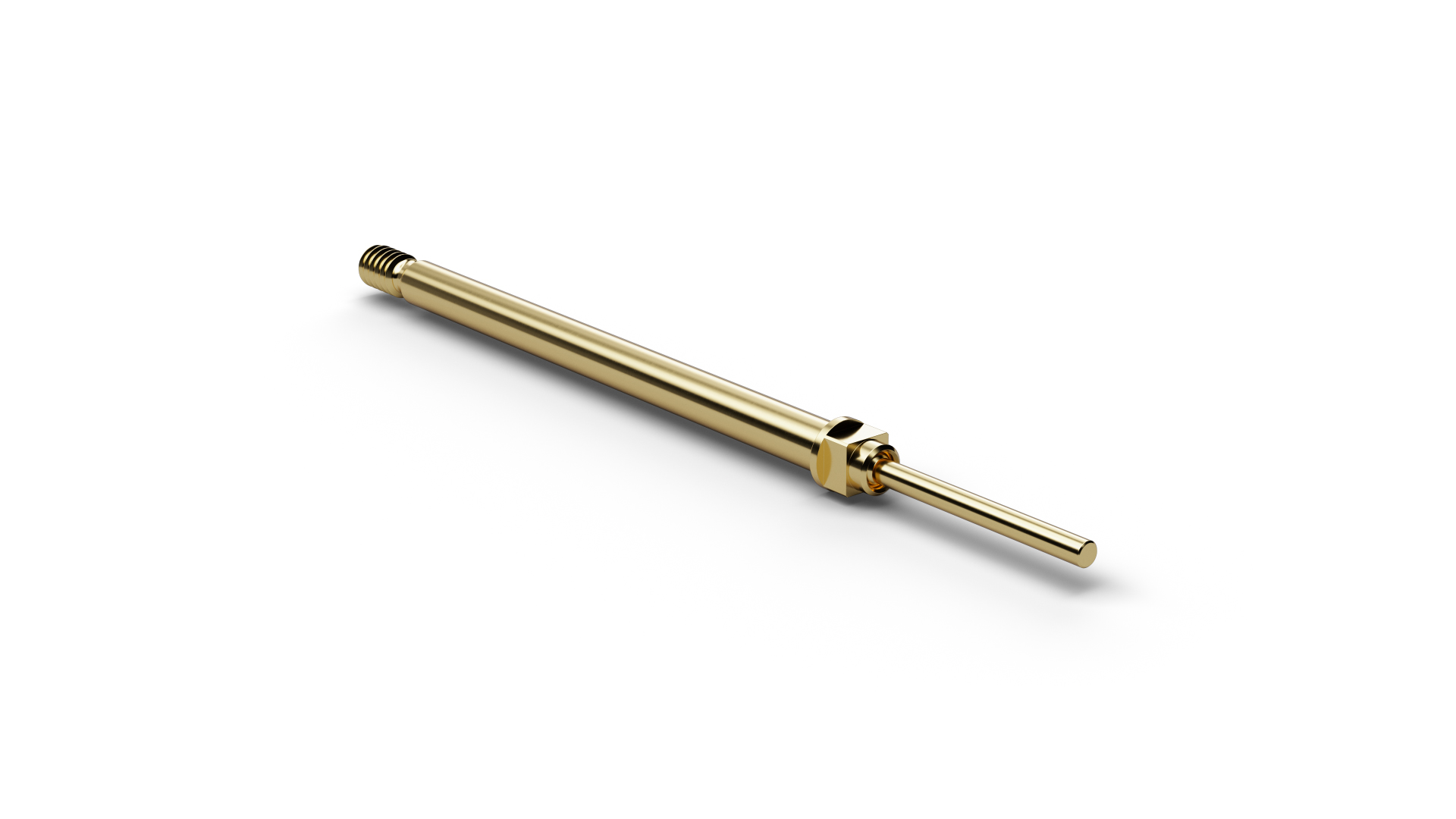

The Basic Threaded Probe F73216B080G300 (item number 1010837) combines a spring-loaded contact with a mechanically secure threaded installation. The threaded mounting of F73216B080G300 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73216B080G300 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73216B080G300 is installed using a M1.6 thread. F73216B080G300 combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 0.8 mm. F73216B080G300 operates with 300 cN spring force and 4 mm nominal travel.
