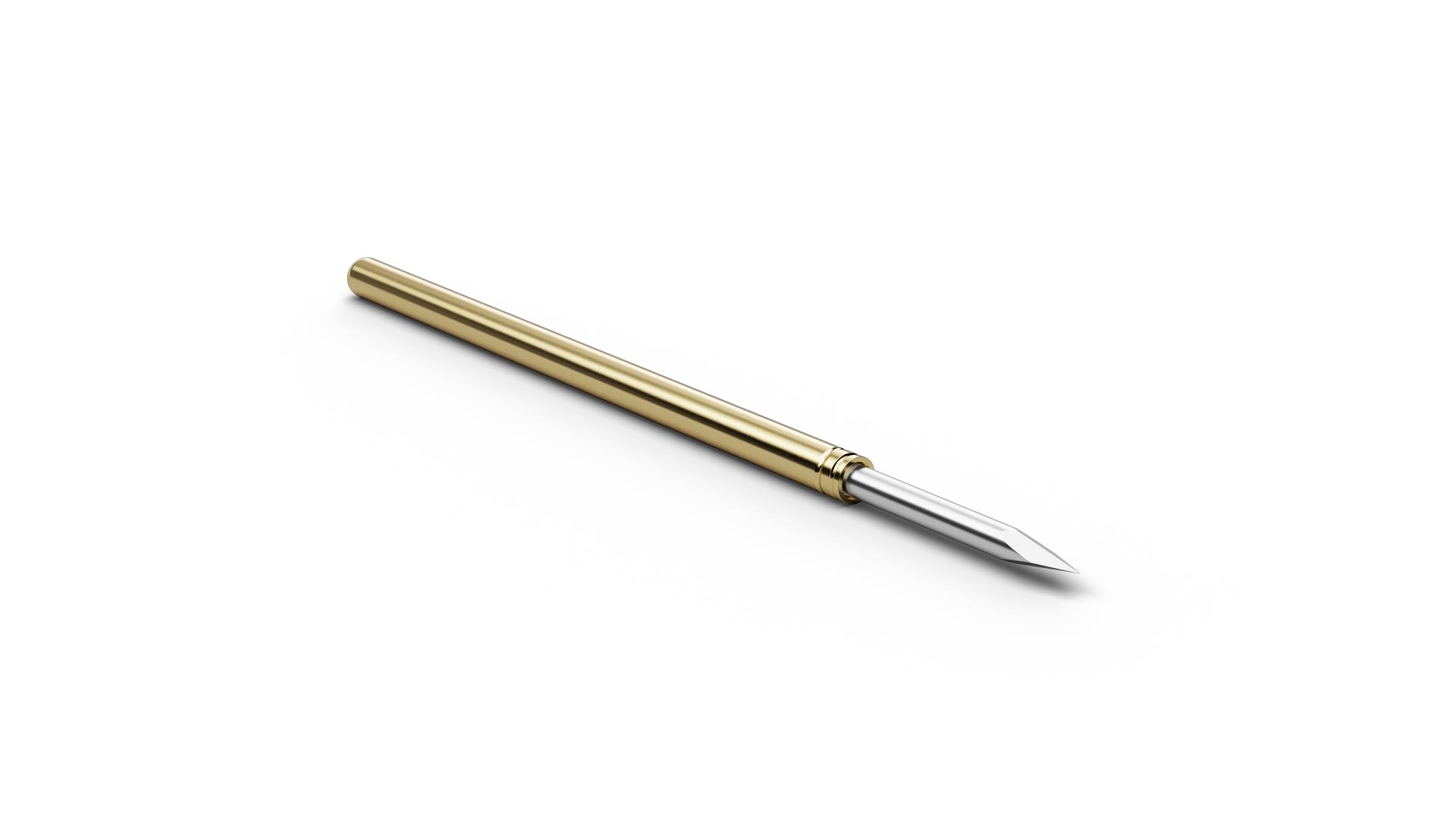

As a Basic Contact Probe, F10033S090P130HP (item number 1016293) establishes a spring-loaded electrical connection to the test point. With tip style 33 (Square lance 38°), F10033S090P130HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090P130HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090P130HP, spring force is 130 cN at a nominal travel of 4.3 mm. F10033S090P130HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. On F10033S090P130HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
