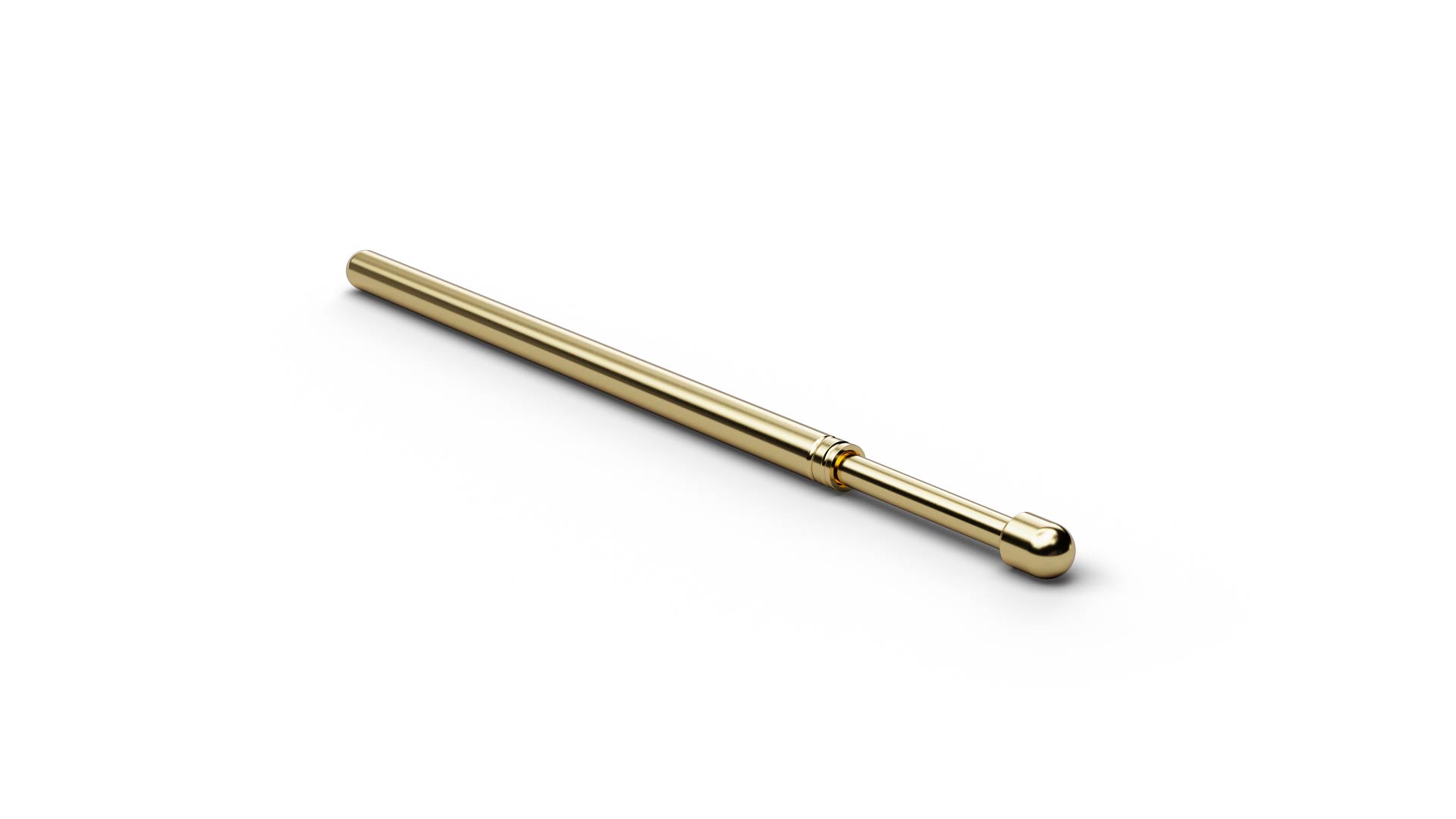

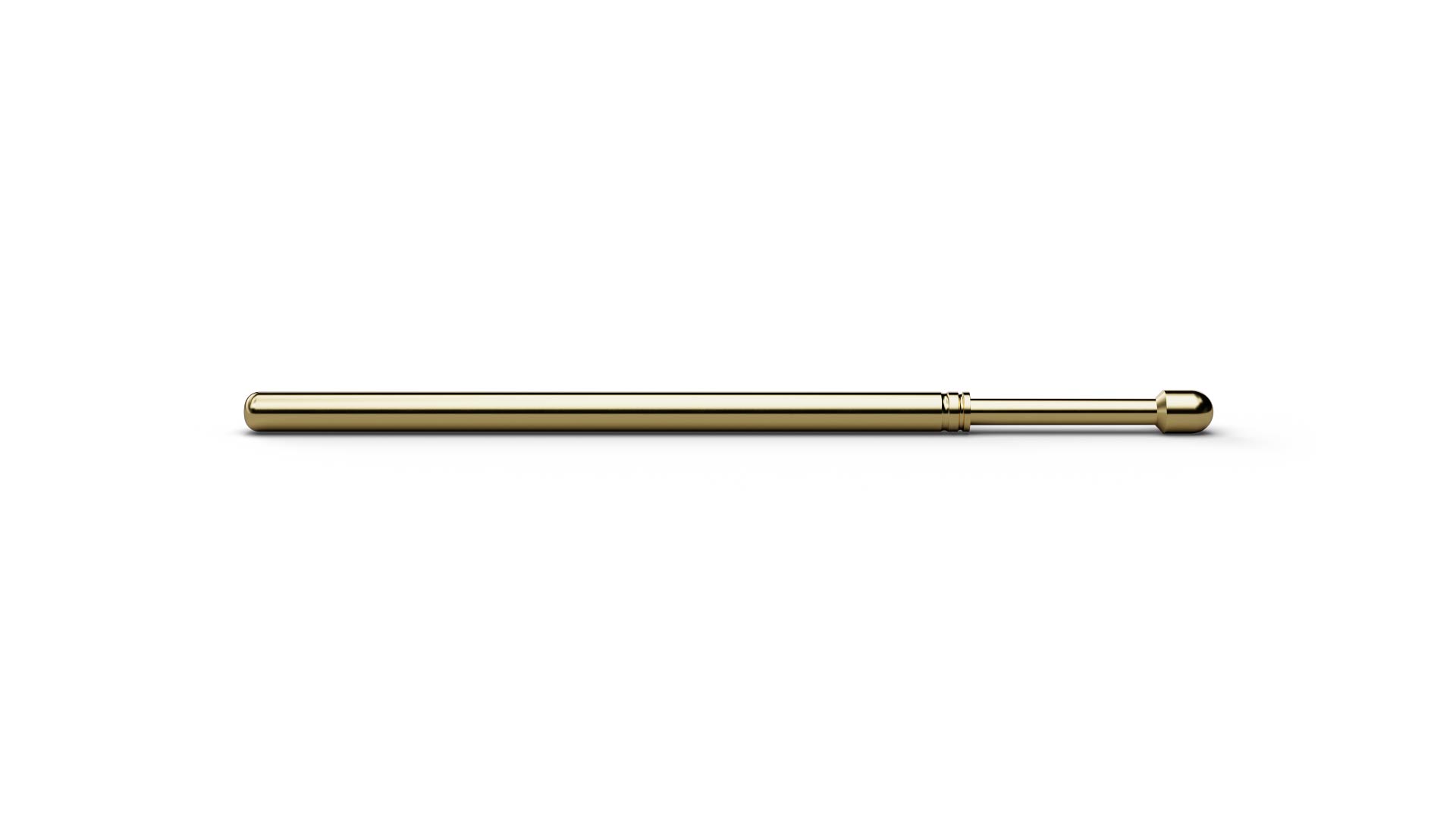

The Basic Contact Probe F10012B150G300 (item number 1016669) is a spring-loaded probe for temporary electrical contact with test points. With tip style 12 (Spherical stepped), F10012B150G300 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F10012B150G300 combines a pitch of 2.54 mm / 100 mil with tip style 12 (Spherical stepped) and a tip diameter of 1.5 mm. F10012B150G300 operates with 300 cN spring force and 4.3 mm nominal travel. The electrical rating of F10012B150G300 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10012B150G300 is made of beryllium copper and is gold-plated.
