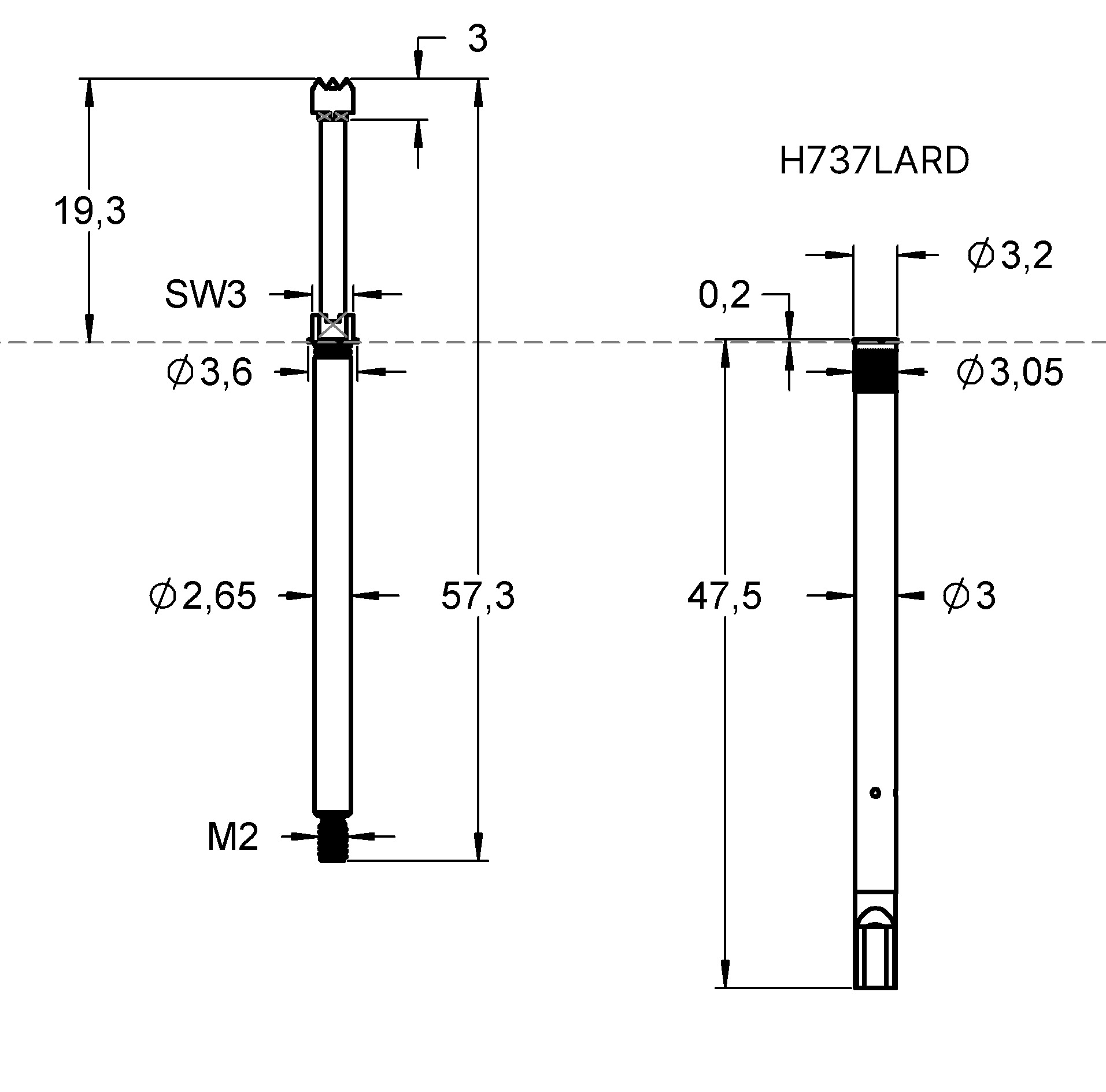

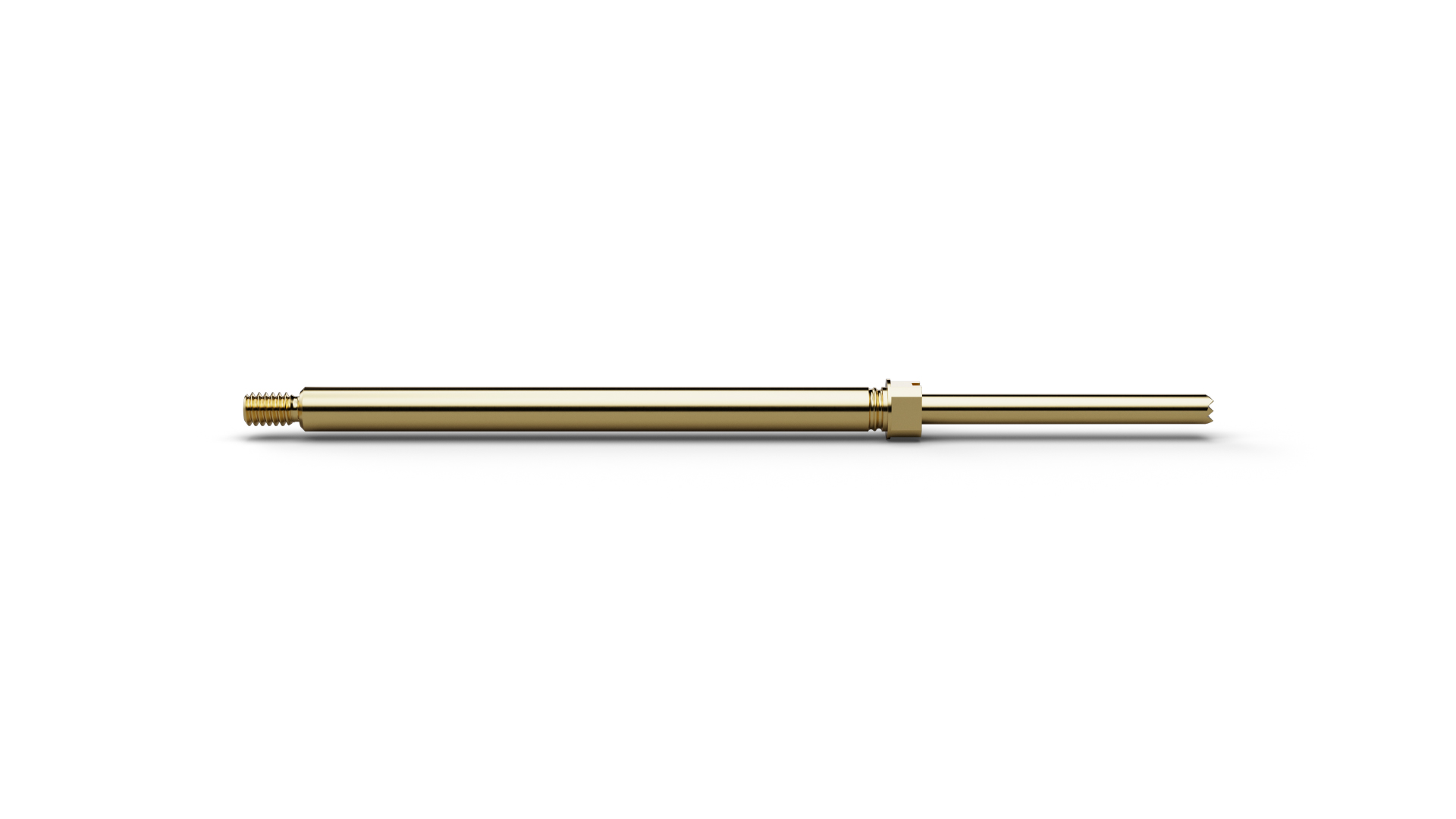

As a Basic Threaded Probe, F73706B180G300 (item number 1017111) is screwed securely into the test fixture. The threaded mounting of F73706B180G300 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73706B180G300 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73706B180G300 uses an M2 thread. On F73706B180G300, a pitch of 4 mm / 157 mil is combined with 300 cN spring force and 12 mm nominal travel. The electrical rating of F73706B180G300 combines 10 A continuous current with 25 mΩ typical contact resistance.
