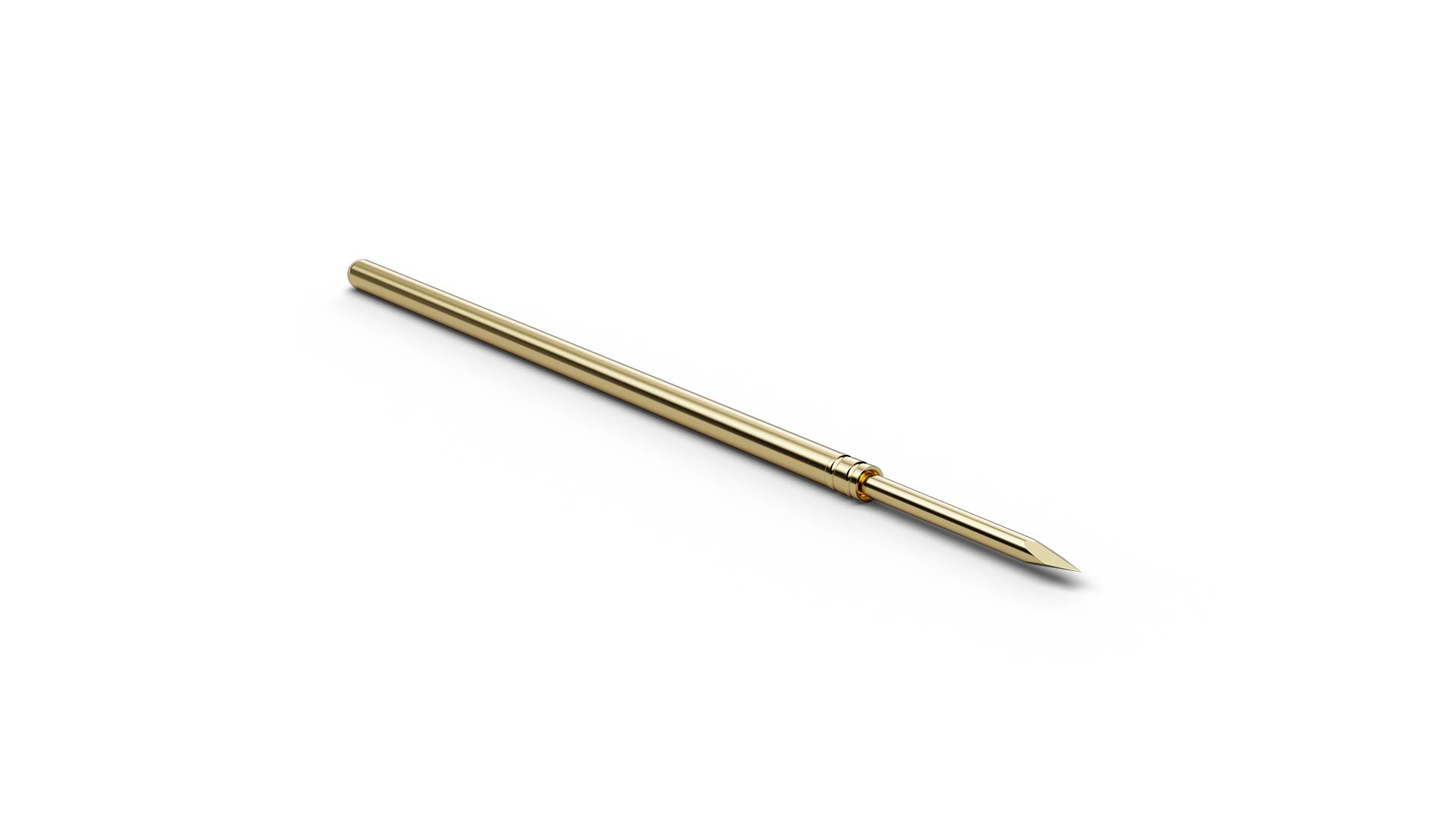

F07533S064L100 (item number 1017266) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F07533S064L100 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07533S064L100 combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. F07533S064L100 operates with 100 cN spring force and 4.3 mm nominal travel. F07533S064L100 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07533S064L100 is made of steel and uses Longtime Gold plating.
