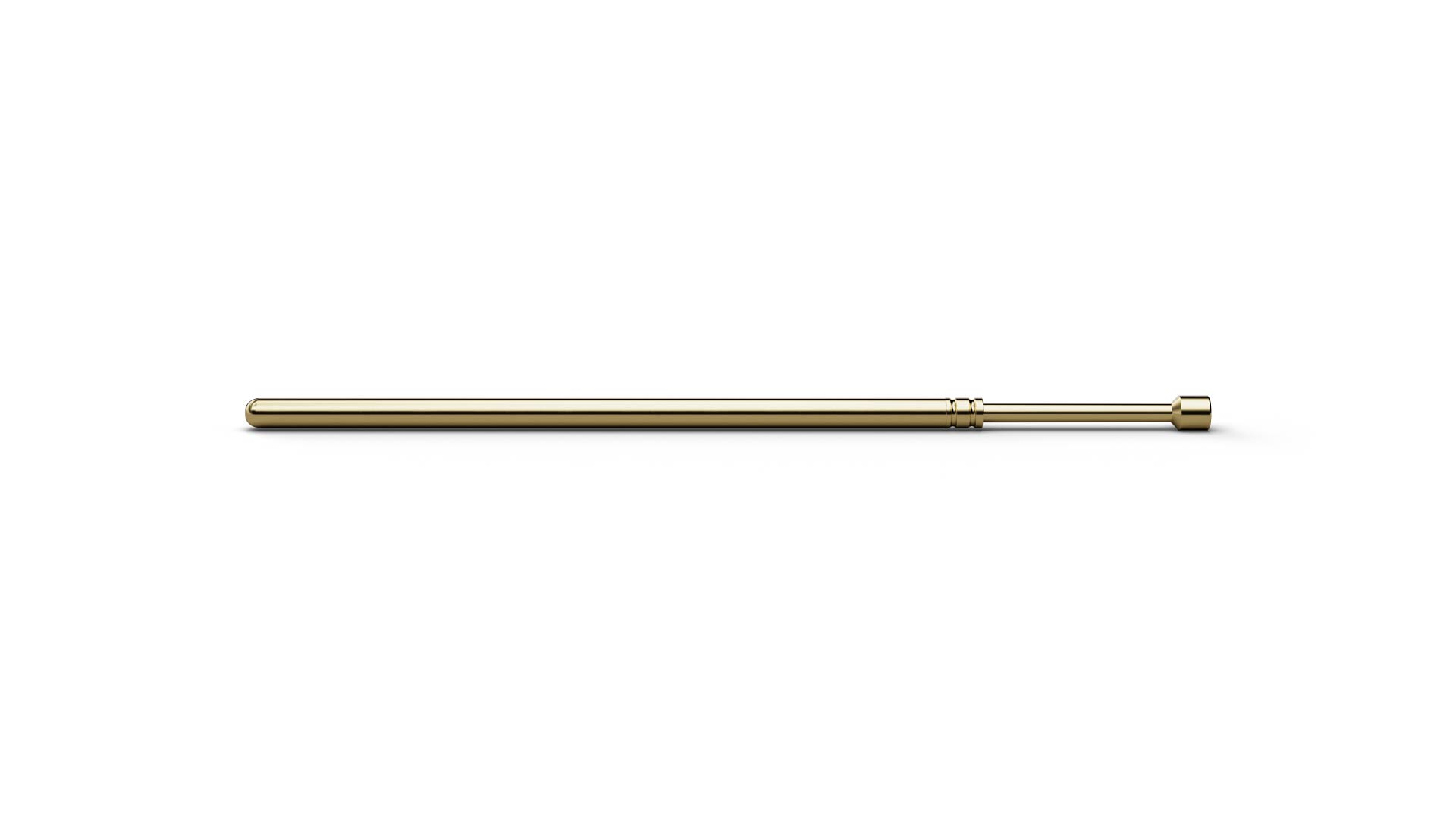

As a Basic Contact Probe, F07517B120G150 (item number 1017300) establishes a spring-loaded electrical connection to the test point. With tip style 17 (Flat stepped), F07517B120G150 combines ICT/FCT use with a geometry intended for solder pads and contact pins. F07517B120G150 combines a pitch of 1.9 mm / 75 mil with tip style 17 (Flat stepped) and a tip diameter of 1.2 mm. For F07517B120G150, spring force is 150 cN at a nominal travel of 4.3 mm. F07517B120G150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07517B120G150 is made of beryllium copper and is gold-plated.
