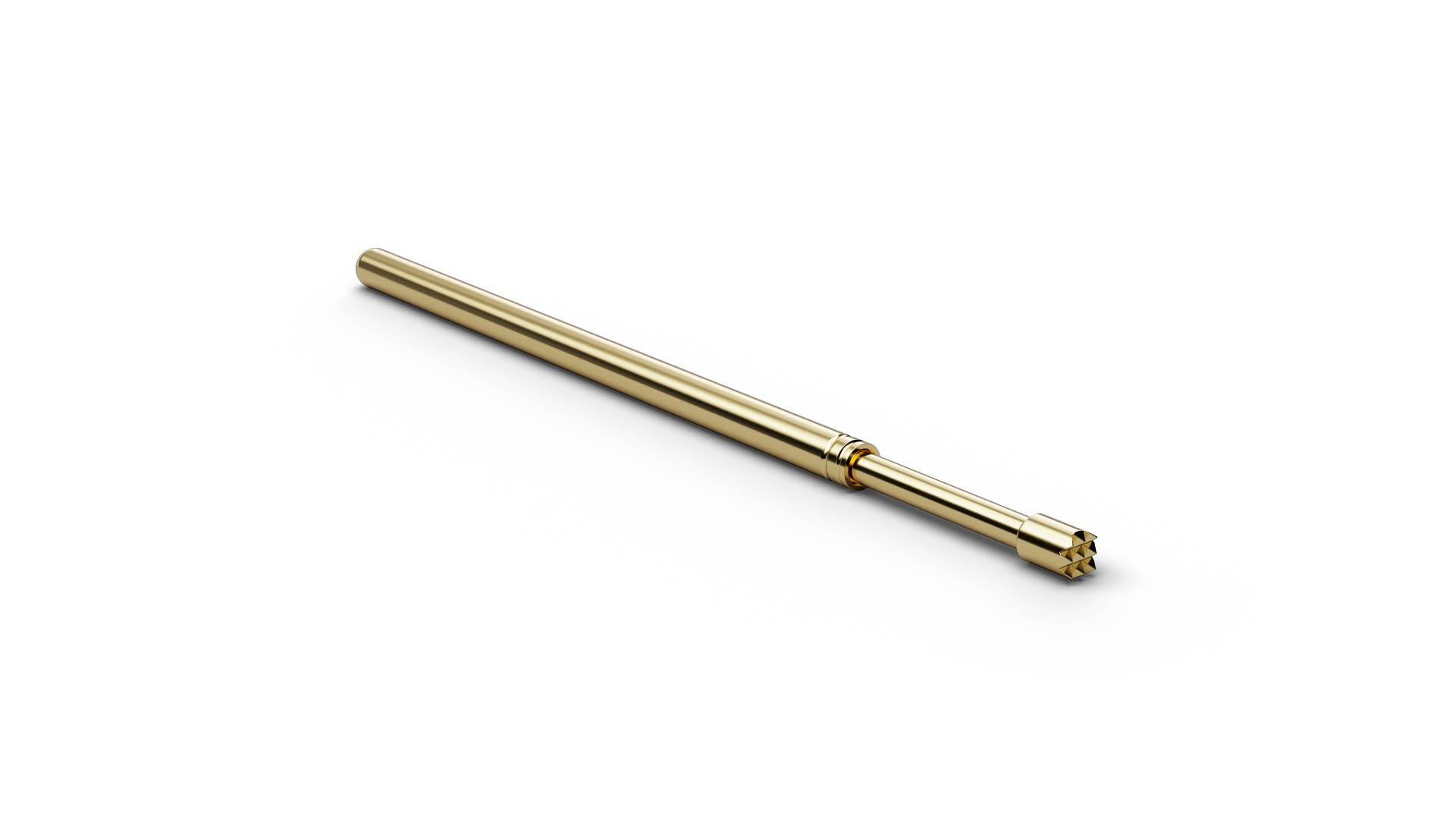

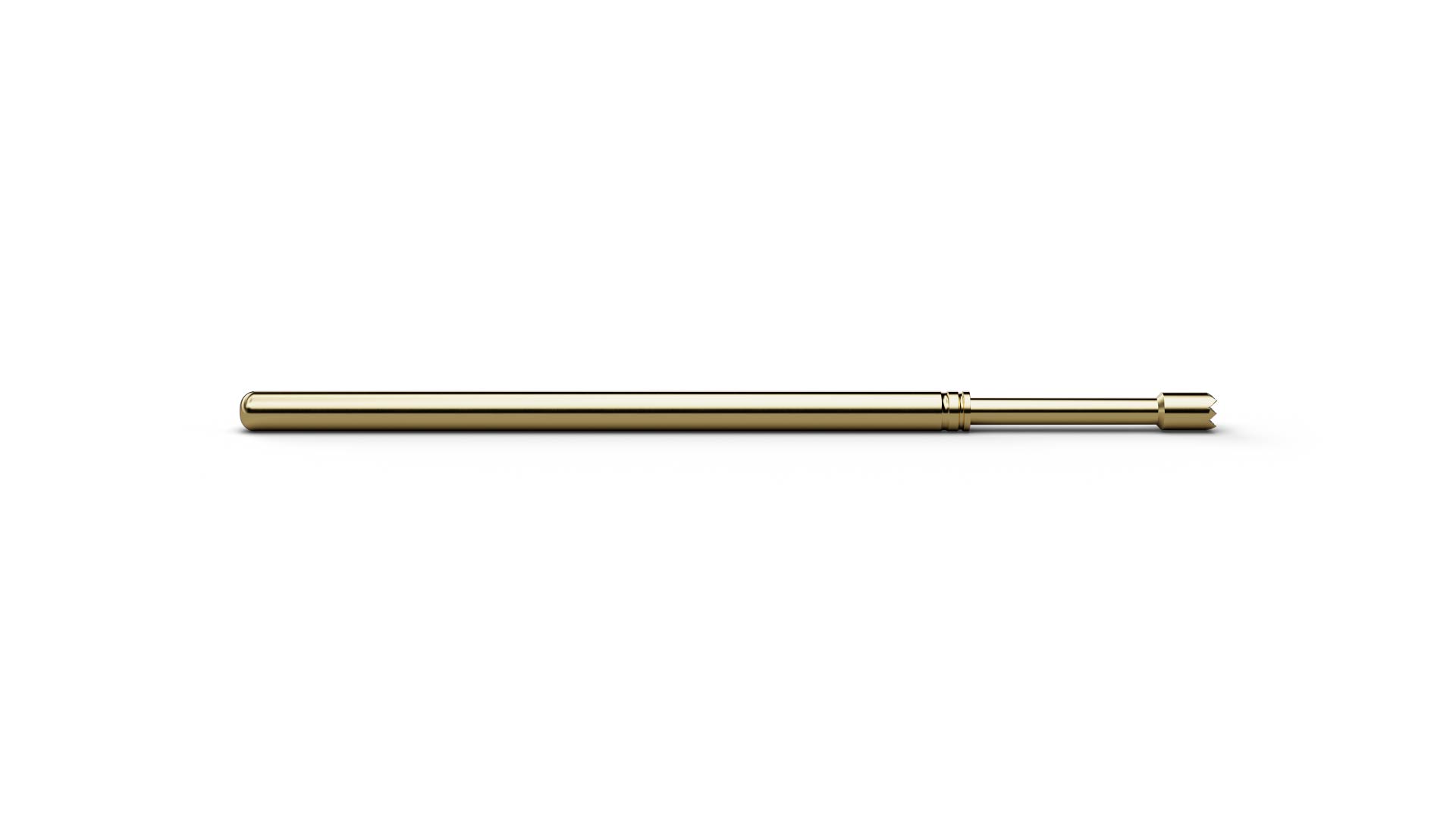

The Basic Contact Probe F10006B130G100 (item number 1017399) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F10006B130G100 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B130G100 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.3 mm. For F10006B130G100, spring force is 100 cN at a nominal travel of 4.3 mm. The electrical rating of F10006B130G100 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10006B130G100 is made of beryllium copper and is gold-plated.
