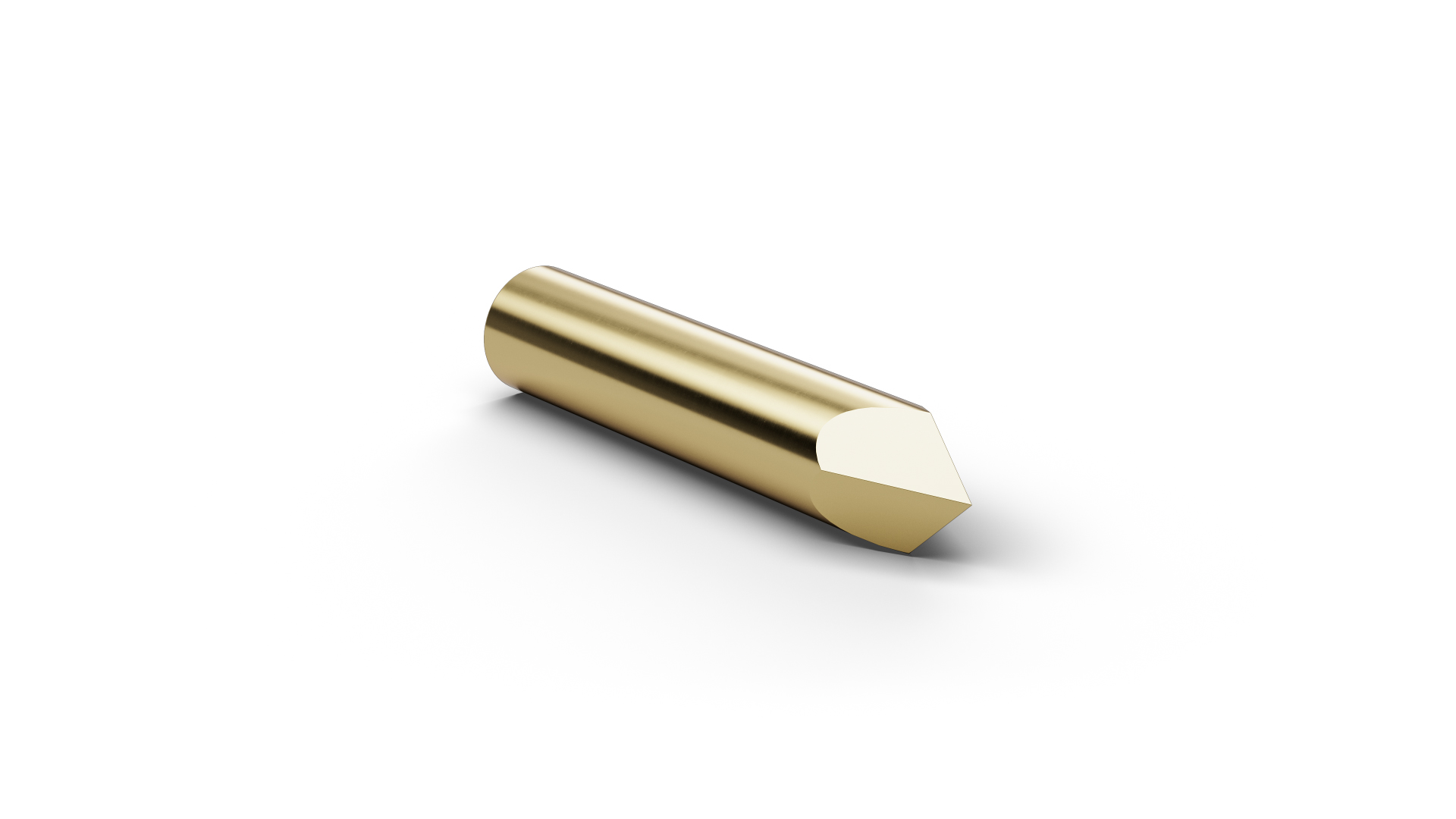

The Basic Contact Probe F07543S064L150 (item number 1017416) is a spring-loaded probe for temporary electrical contact with test points. With tip style 43 (Square lance 90°), F07543S064L150 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07543S064L150 combines a pitch of 1.9 mm / 75 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.64 mm. For F07543S064L150, spring force is 150 cN at a nominal travel of 4.3 mm. F07543S064L150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07543S064L150 is made of steel and uses Longtime Gold plating.
