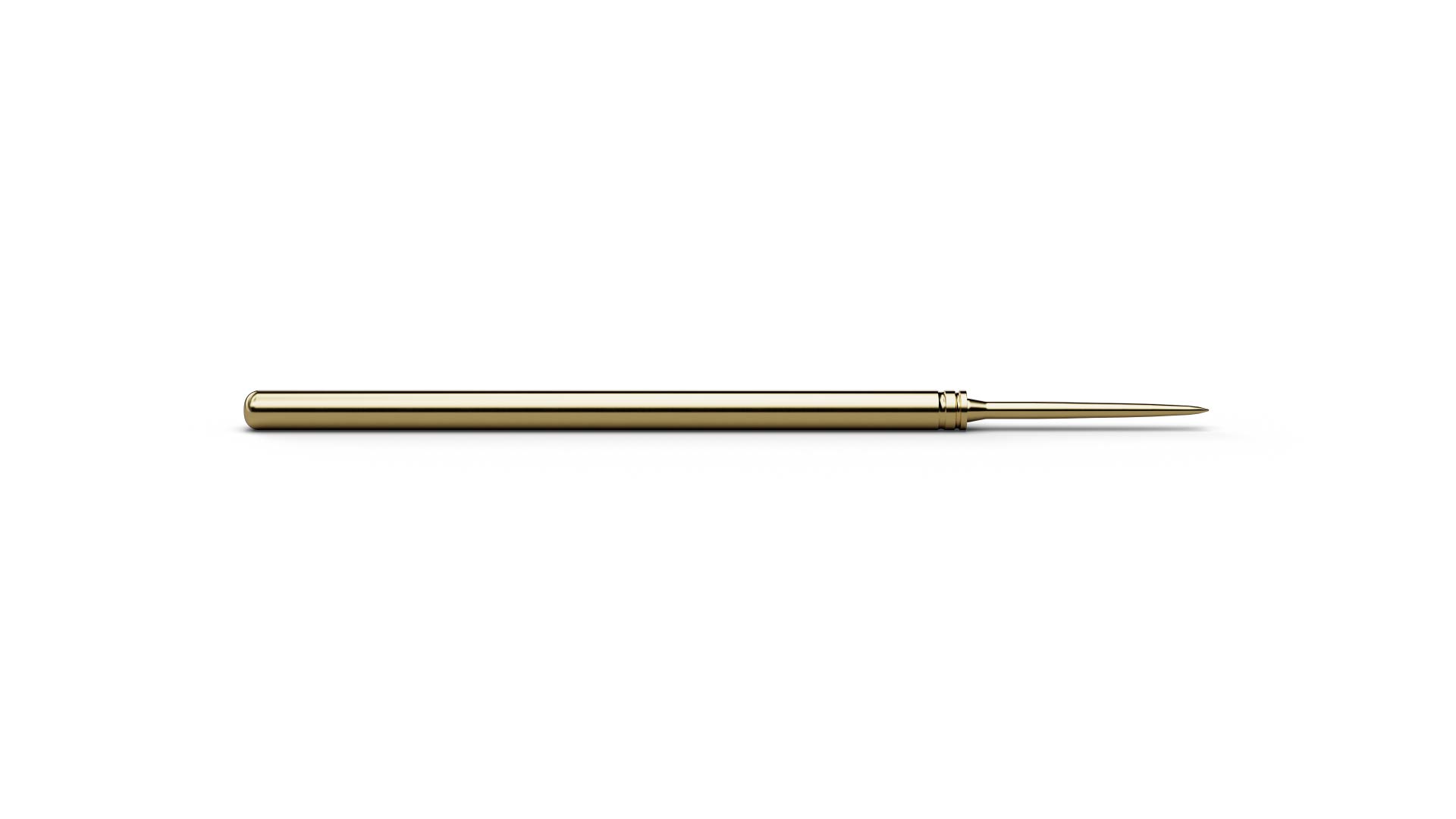

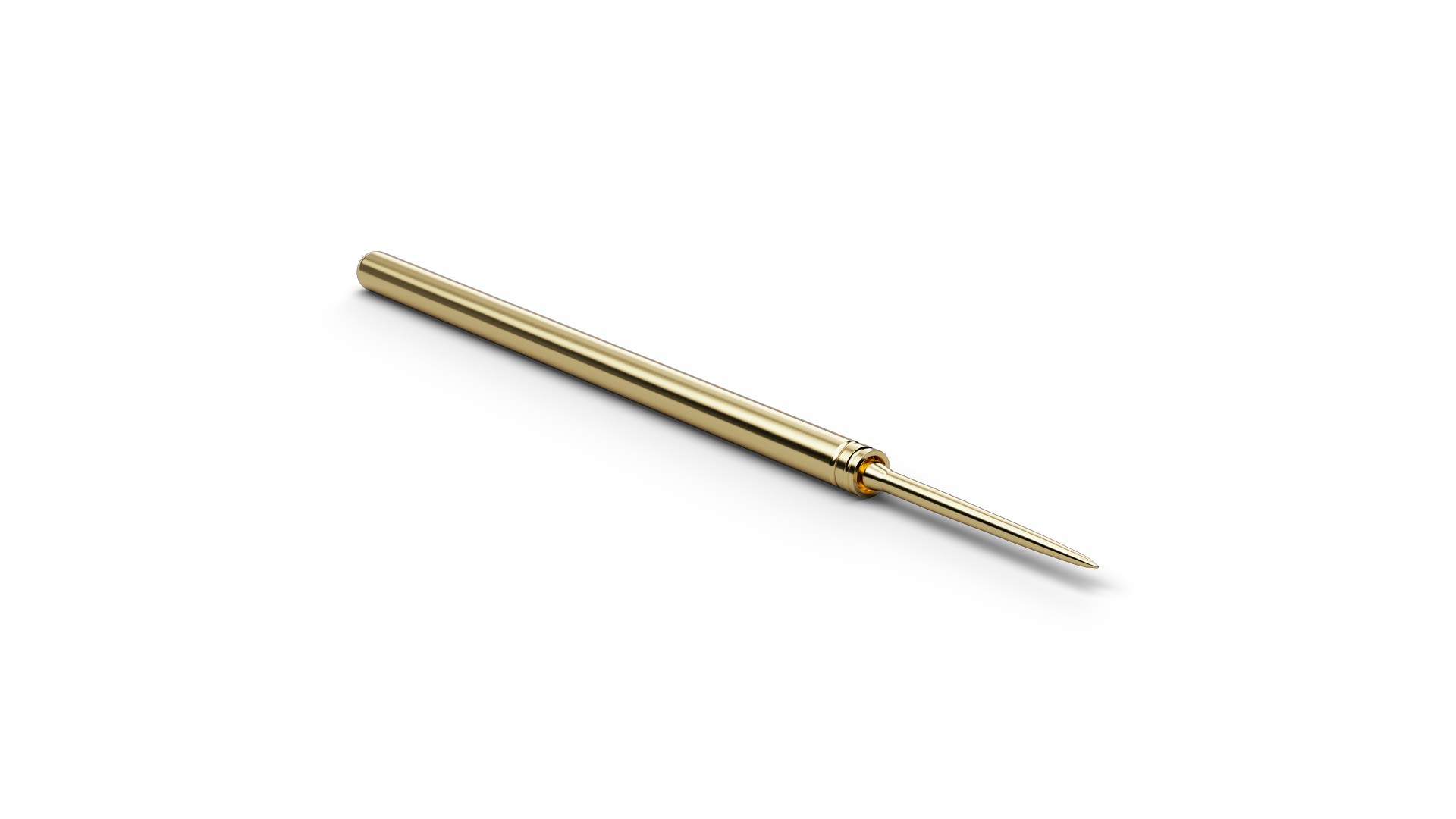

The Basic Contact Probe F10010S060L150RP (item number 1017643) is a spring-loaded probe for temporary electrical contact with test points. With tip style 10 (Flexible needle), F10010S060L150RP combines ICT/FCT use with a geometry intended for solder pads and vias. F10010S060L150RP combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.6 mm. F10010S060L150RP operates with 150 cN spring force and 4.3 mm nominal travel. F10010S060L150RP is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10010S060L150RP is made of steel and uses Longtime Gold plating.
