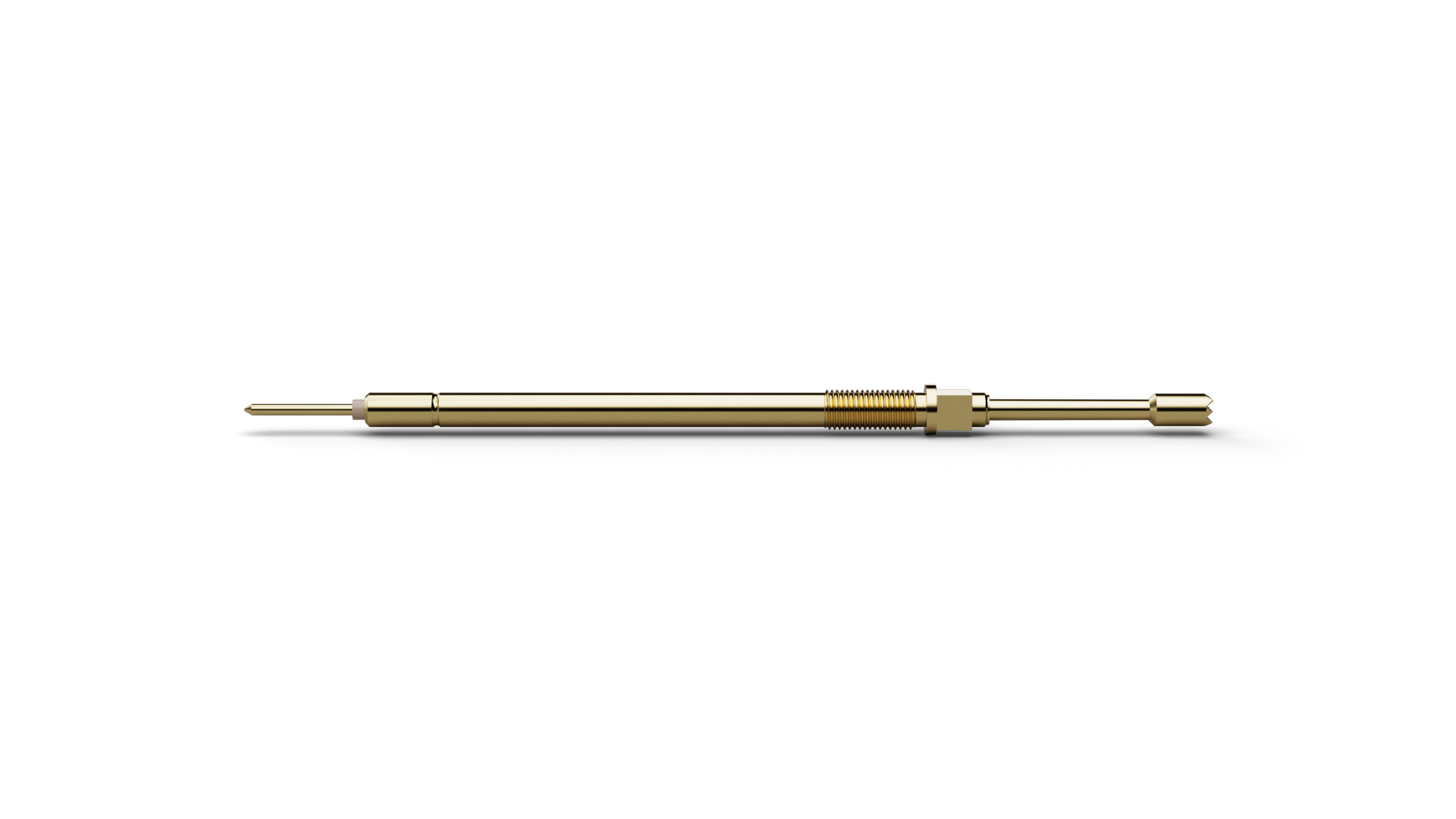

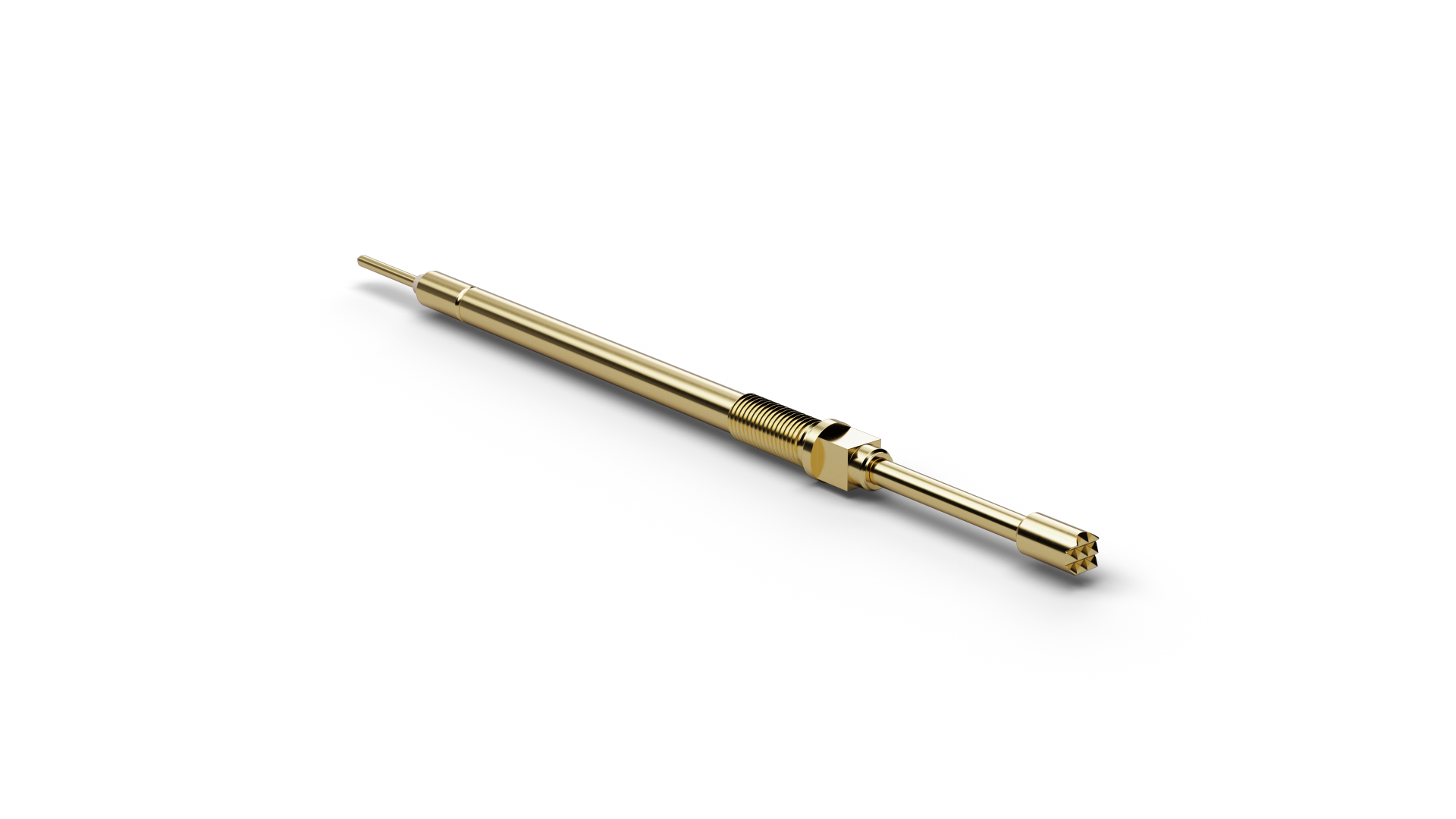

F86506B130G200 (item number 1018034) belongs to the Switch Probe range and generates an electrical signal at a defined actuation travel. F86506B130G200 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F86506B130G200 is NO (Normally Open). The switching travel specified for F86506B130G200 is 4 mm. F86506B130G200 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 1.3 mm. F86506B130G200 operates with 200 cN spring force and 5 mm nominal travel.
