技术数据
| 一般信息 | |
|---|---|
| 类型/系列 | H175 |
| 间距（mm/mil） | 1,90 / 75 |
| 附加定义 | Knurl |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 25.3 |
| 压环直径 (mm) | 1.65 |
| 外径 (mm) | 1.57 |
| 直径（mm） | 1.6 |
| 领圈高度 (mm) | 0.2 |
| 内螺纹 | 1,0 |
| 材料和表面 | |
|---|---|
| 材料, 涂层 | Brass, Uncoated |
| 机械规格 | |
|---|---|
| 螺纹式 | 1,6 |
| 内螺纹 | 1,0 |

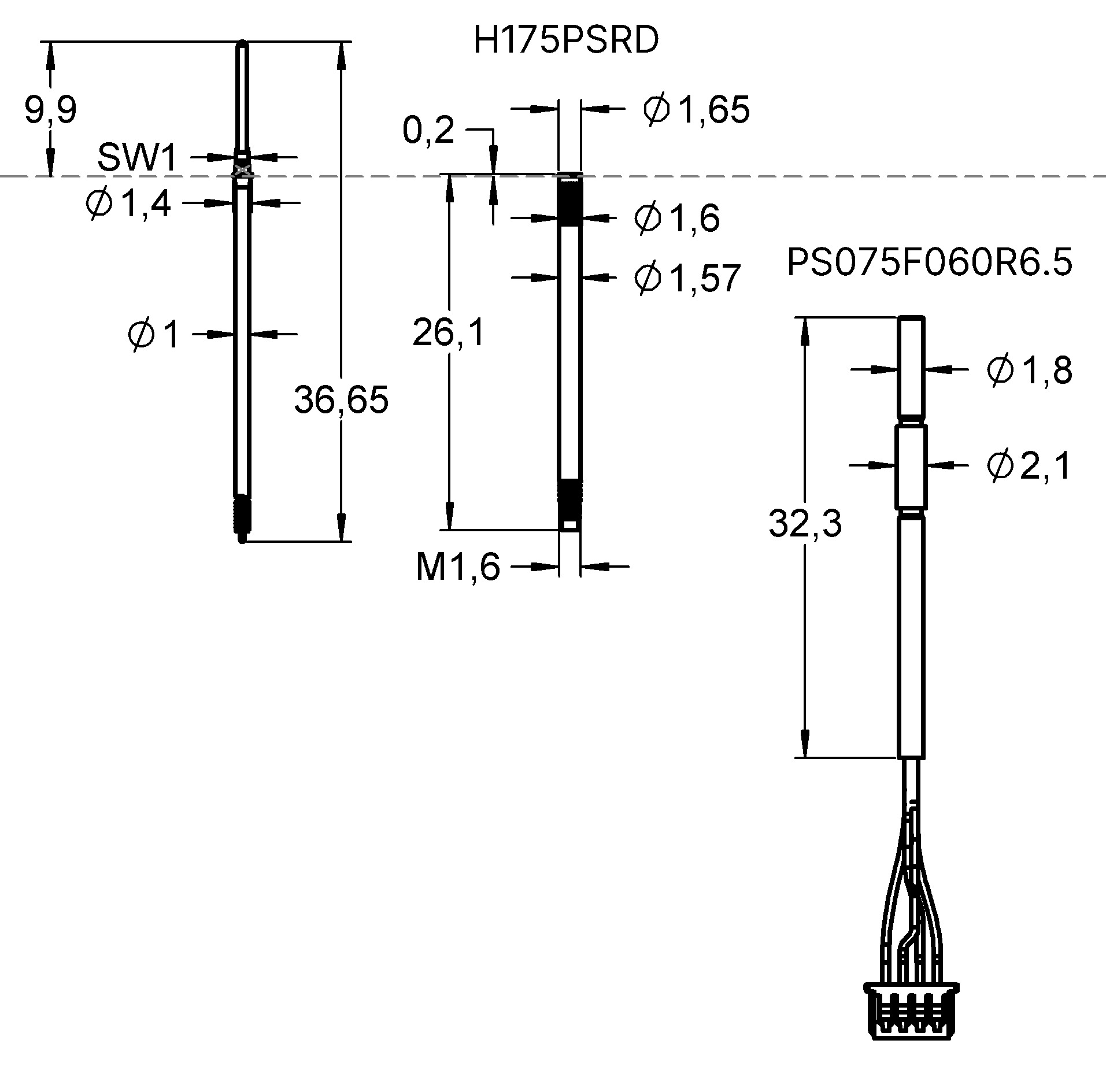

图形
Beschreibung des Produkts

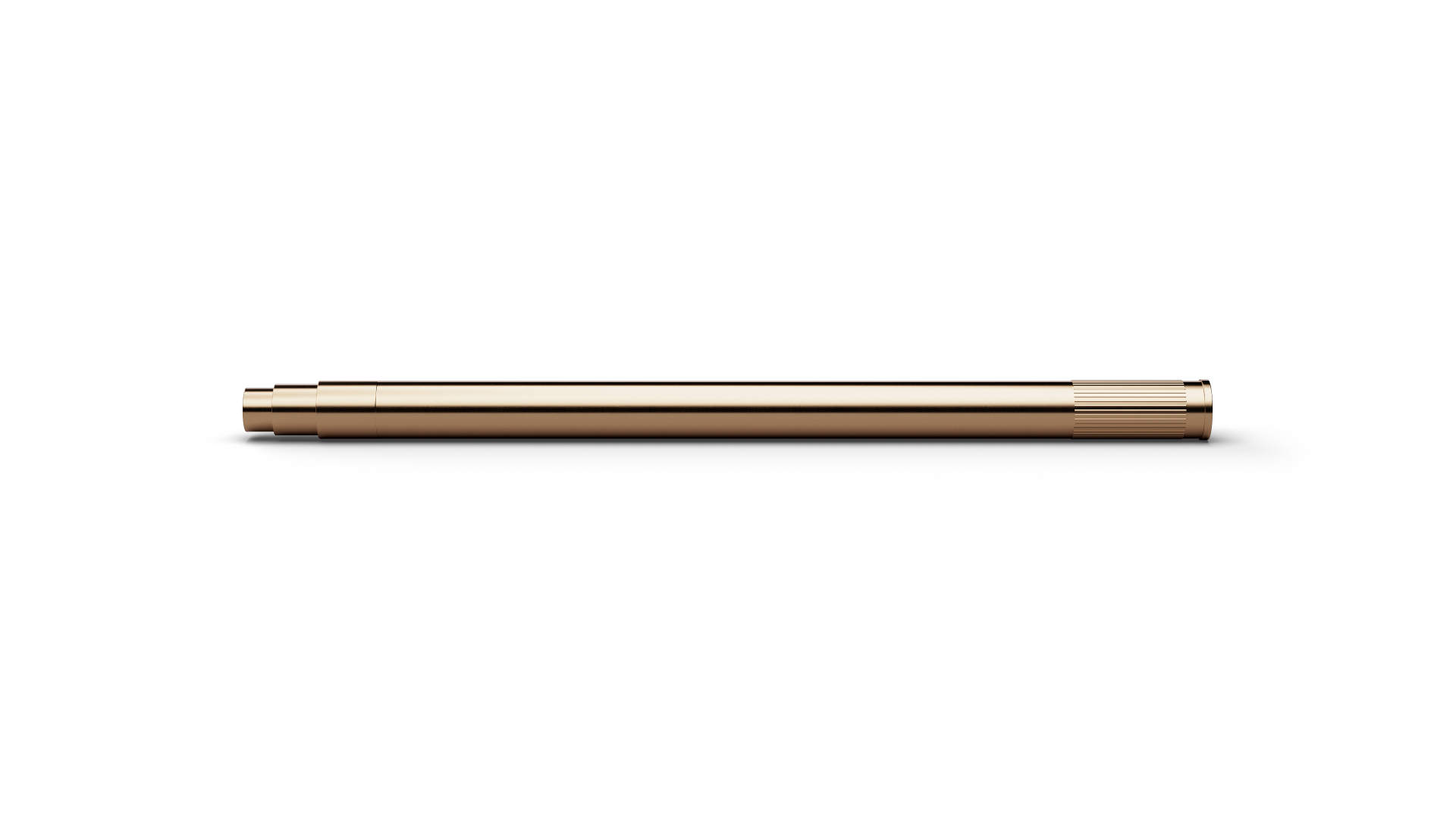

The receptacle H175PSRD (item number 1024148) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H175PSRD guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H175PSRD, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
