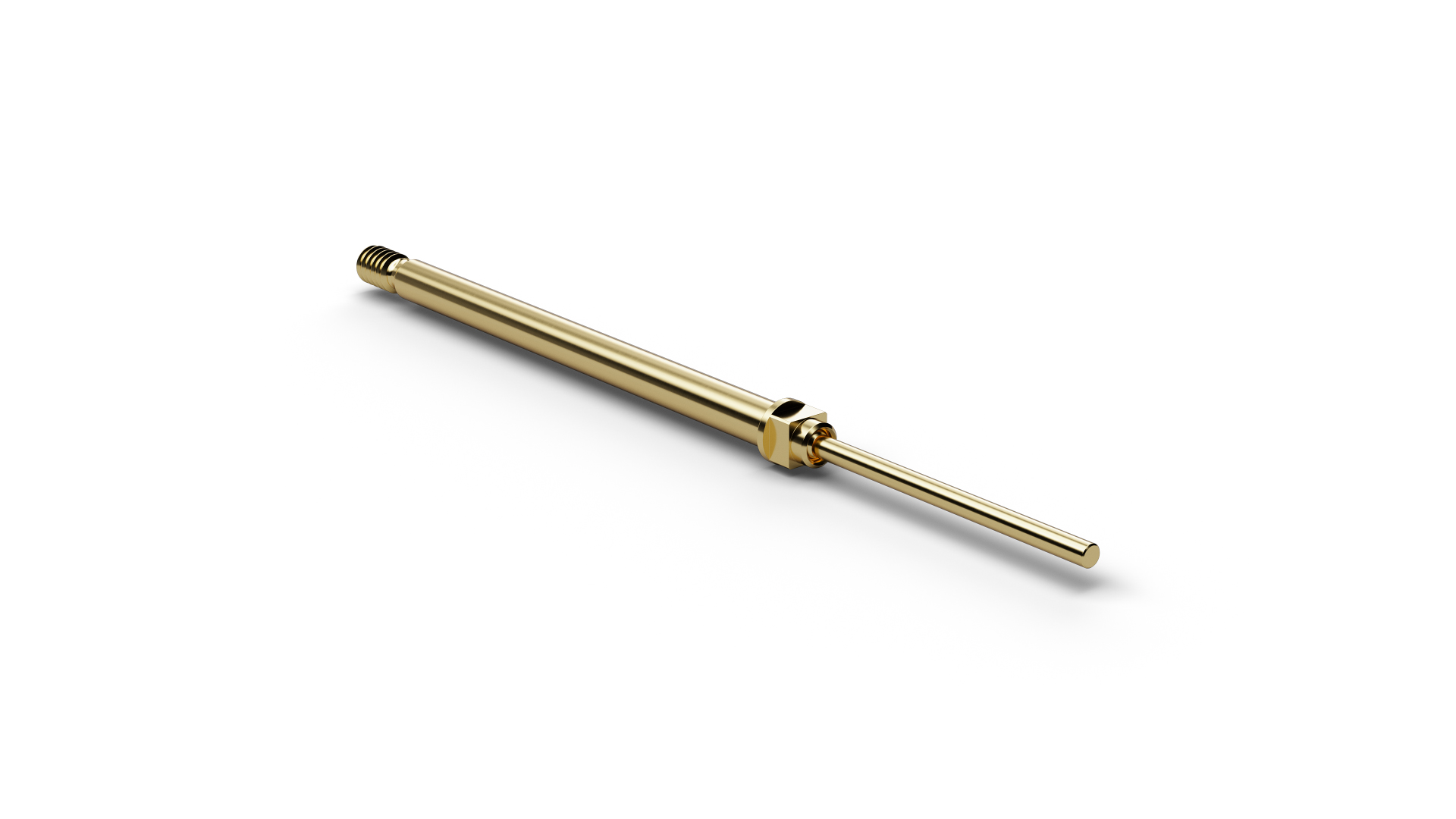

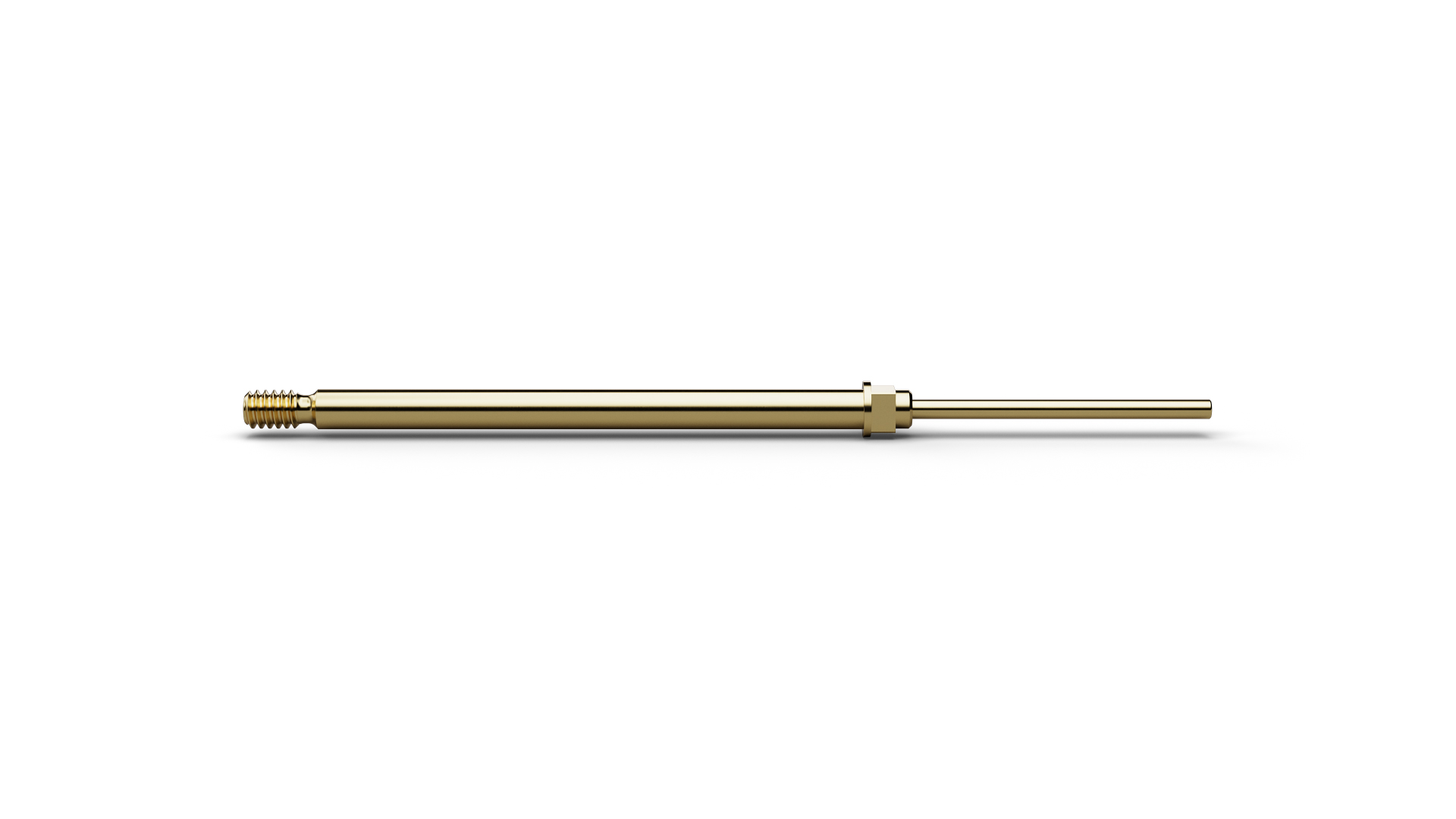

As a Basic Threaded Probe, F73216B080G150E14 (item number 1024569) combines defined spring force with robust threaded mounting. The threaded mounting of F73216B080G150E14 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73216B080G150E14 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73216B080G150E14 is installed using a M1.6 thread. F73216B080G150E14 combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 0.8 mm. For F73216B080G150E14, spring force is 150 cN at a nominal travel of 4 mm.
