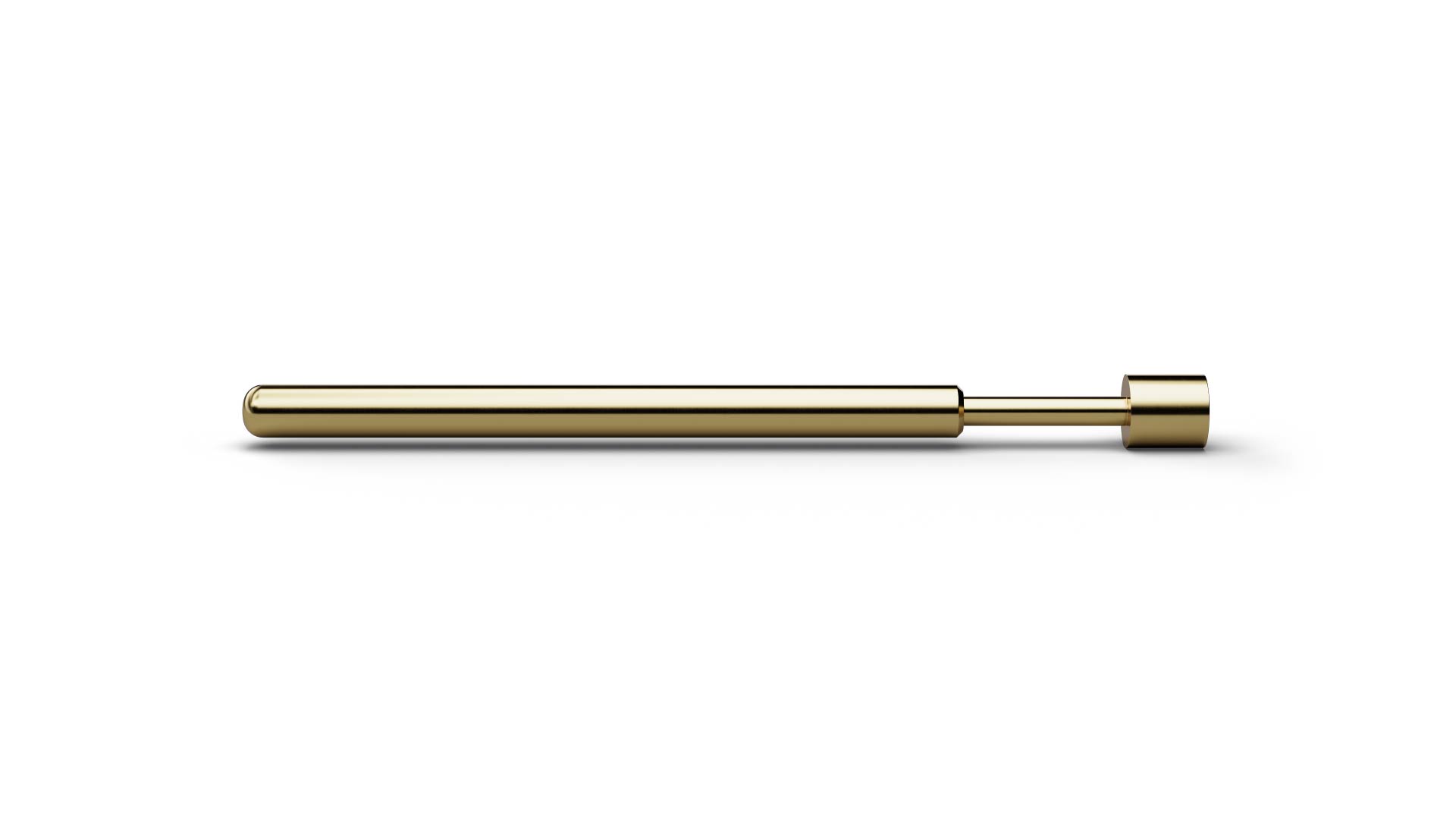

As a Basic Contact Probe, F56205S190L150H (item number 1027188) establishes a spring-loaded electrical connection to the test point. With tip style 05 (Concave stepped), F56205S190L150H combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F56205S190L150H combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.9 mm. F56205S190L150H operates with 150 cN spring force and 2.7 mm nominal travel. F56205S190L150H is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56205S190L150H is made of steel and uses Longtime Gold plating. The final H identifies the high-temperature version; F56205S190L150H is suitable for applications up to 200 °C.
