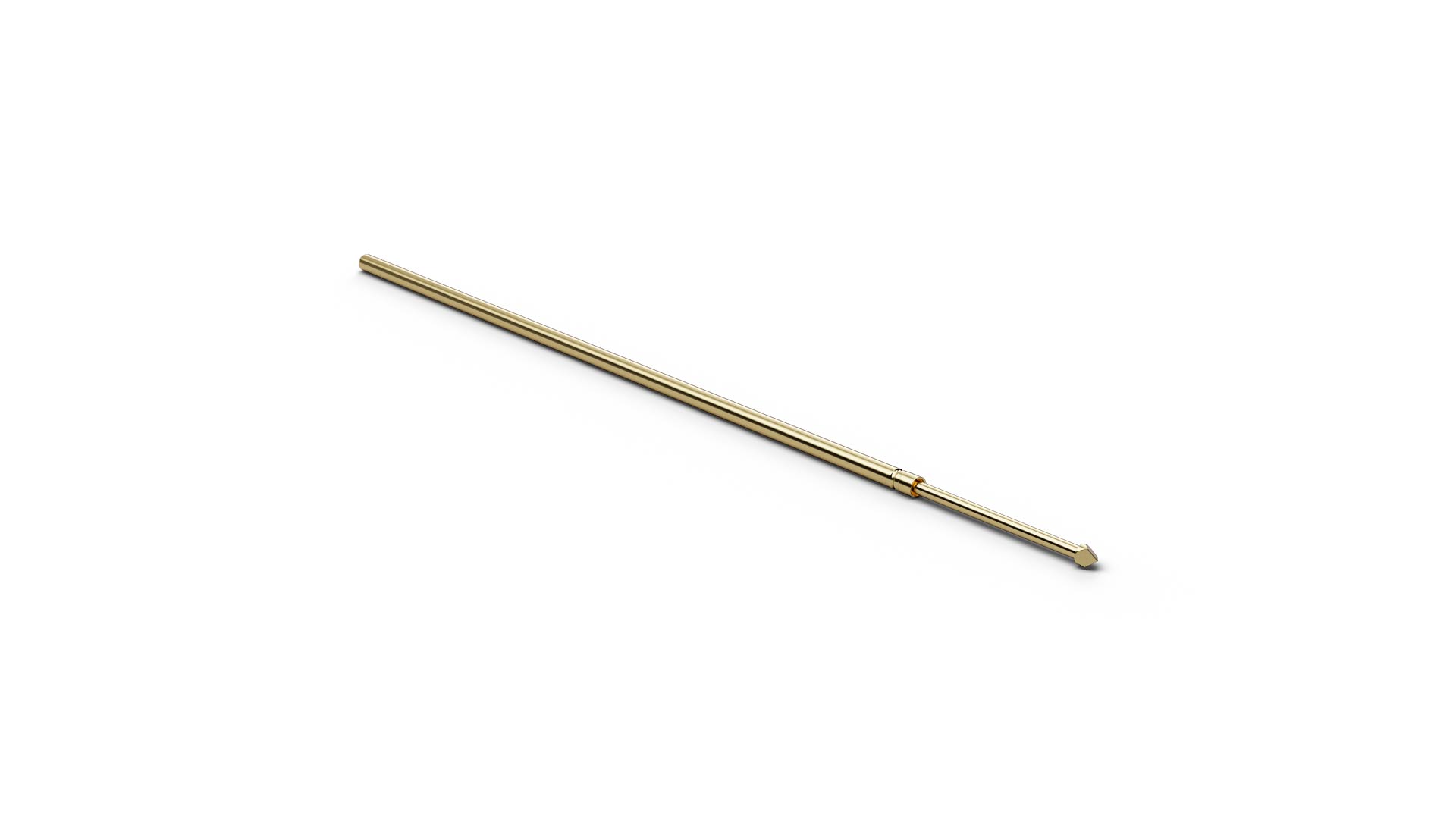

F04015S060L080 (item number 1032015) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 15 (Triangular 45° stepped), F04015S060L080 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. The design combines a pitch of 1 mm / 40 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 0.6 mm. For F04015S060L080, spring force is 80 cN at a nominal travel of 4.3 mm. The electrical rating of F04015S060L080 combines 2 A continuous current with 20 mΩ typical contact resistance. The plunger in F04015S060L080 is made of steel and uses Longtime Gold plating.
