技术数据
| 一般信息 | |
|---|---|
| 类型/系列 | GS500 |
| 应用 | F733, F755 |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 67.4 |
| 最大针头直径 (mm) | 5 |
| 机械规格 | |
|---|---|
| 螺丝工具尺寸 (mm) | 5 |
图形
Beschreibung des Produkts

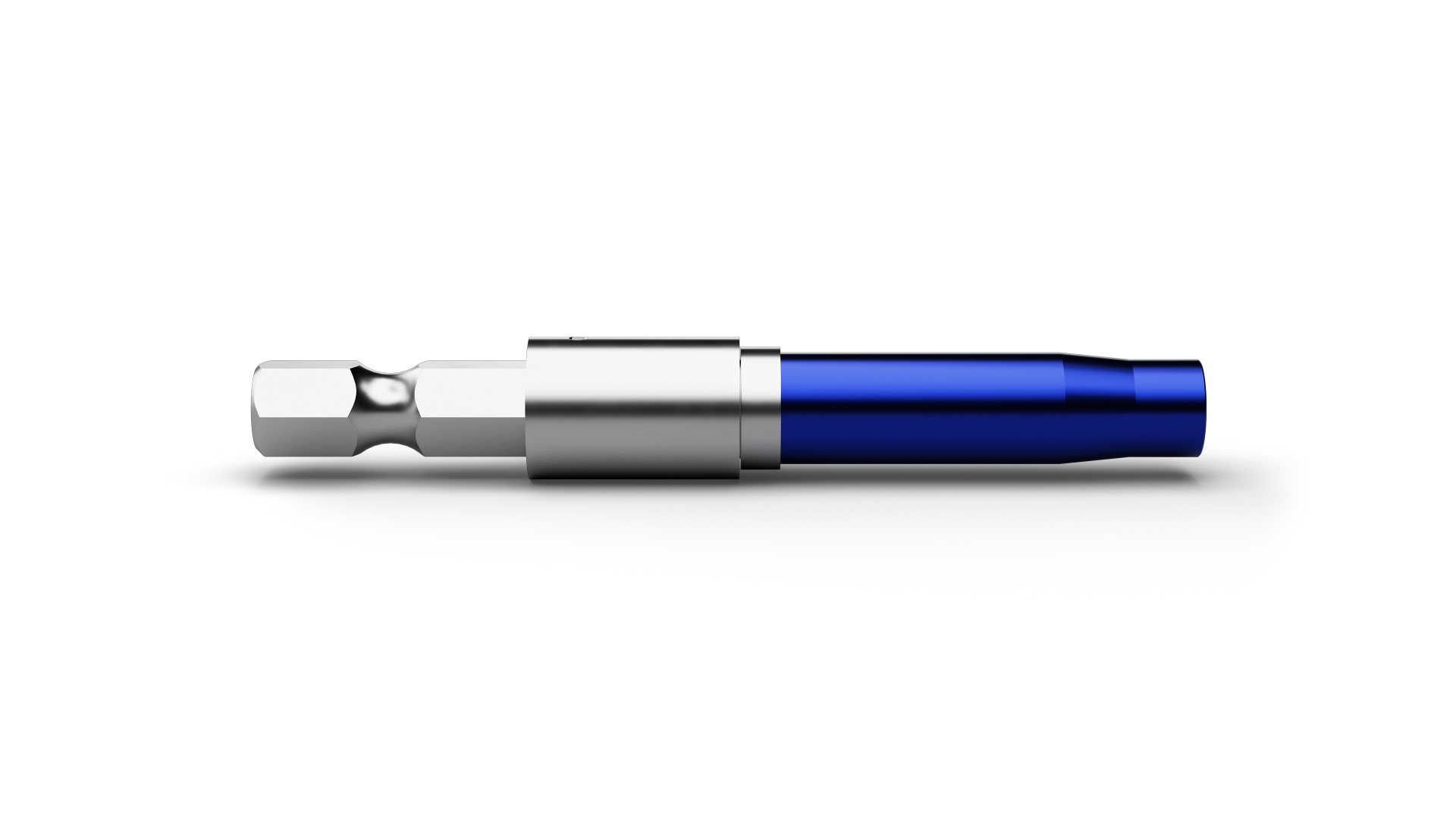

The tool GS500TA2 (item number 1032508) is intended for assembly, removal or service work on compatible Contact Probes and receptacles. GS500TA2 is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. Handling dimensions for GS500TA2 include length 67.4 mm. The geometry of GS500TA2 supports controlled handling while reducing unnecessary mechanical stress on sensitive contact components.
