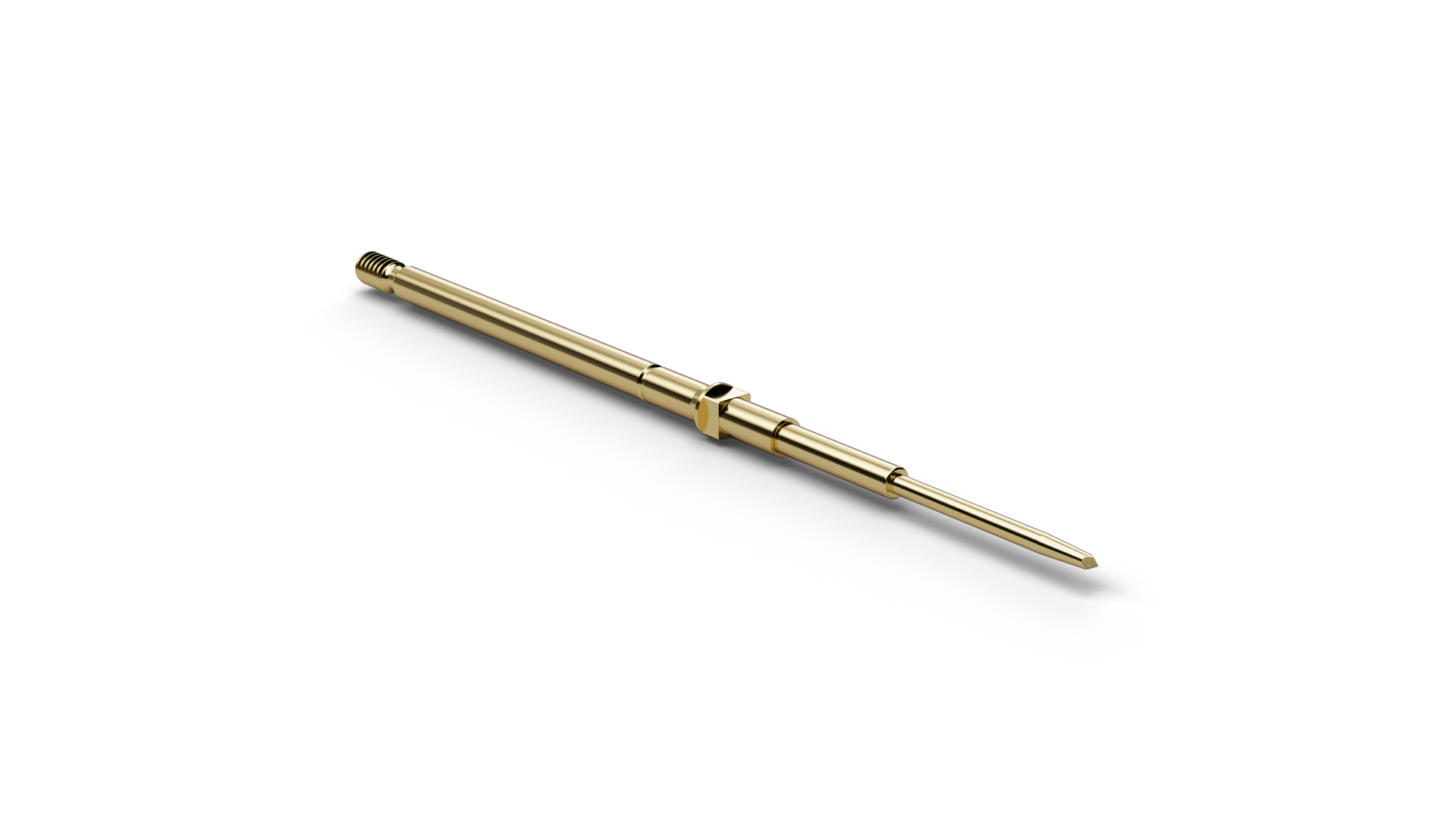

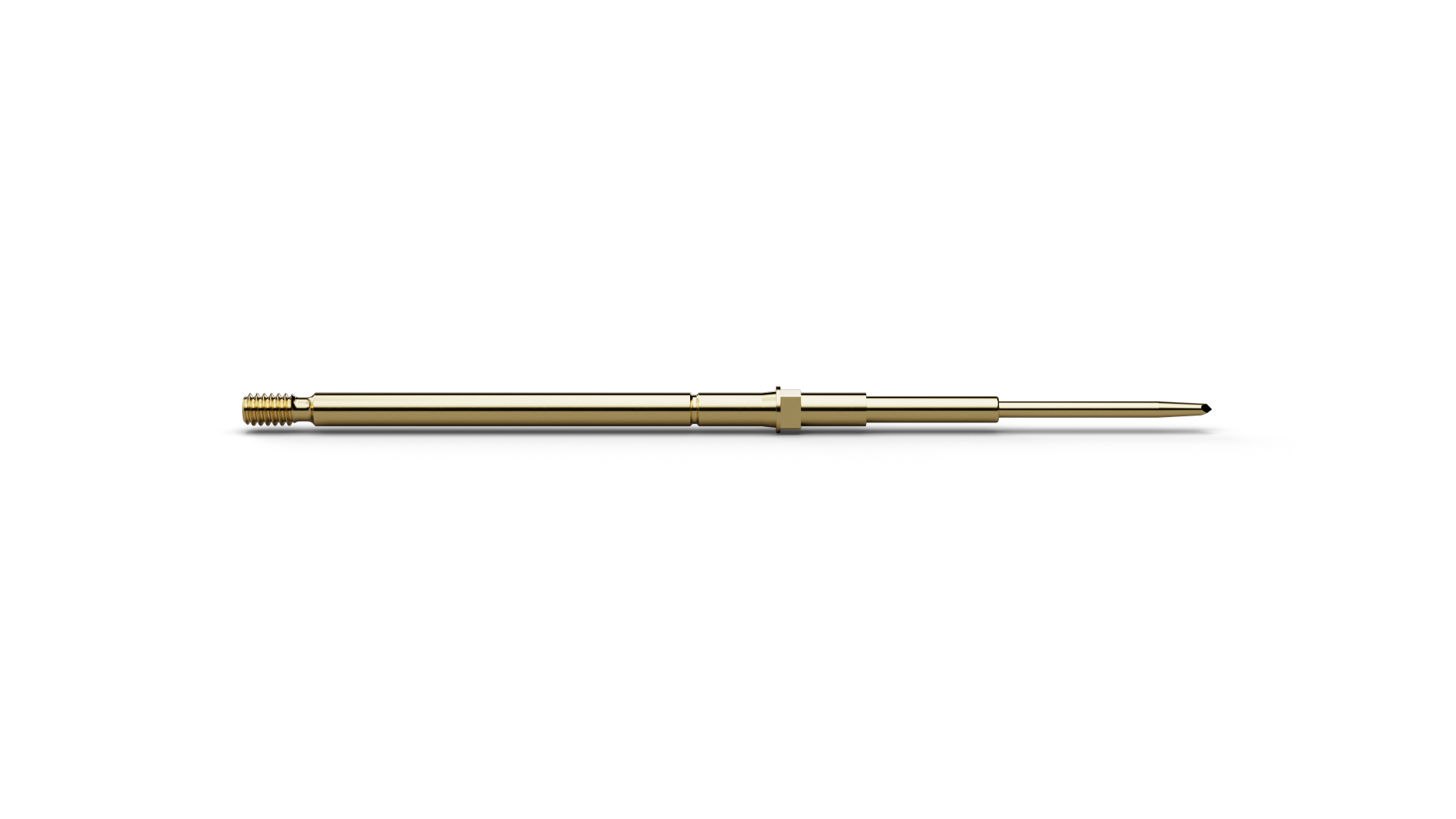

The Flying Probe FL10030S060L150E21M (item number 1033270) is a movable spring-loaded Contact Probe for automated PCB testing. As a Flying Probe, FL10030S060L150E21M can access individual test points without a fixed bed-of-nails fixture, making it suitable for prototypes, small batches and frequently changing layouts. FL10030S060L150E21M operates as a flying-probe solution that contacts individual test points without a fixed bed-of-nails fixture, supporting changing layouts, prototypes and high-mix testing. Mechanical design data includes pitch 2.54 mm / 100 mil, tip style 30 (Triangular 45°), tip diameter 0.6 mm, spring force 150 cN, nominal travel 4.3 mm, maximum travel 6.4 mm. Electrical specifications for FL10030S060L150E21M include continuous current 5 A, typical contact resistance 25 mΩ. The plunger is made of triebstahl and uses Longtime Gold plating.
