技术数据
| 一般信息 | |
|---|---|
| 结构 | Coaxial Probe |
| 类型/系列 | HC200 |
| 间距（mm/mil） | 25,0 / 984 |
| 温度 | -45°C...+200°C |
| 附加定义 | B |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 54.8 |
| 突出高度（毫米） | 22.5 |
| 针头直径 (mm) | 20 |
| 针管直径 (mm) | 19 |
| 领圈直径 (mm) | 20 |
| 压环直径 (mm) | 20 |
| 针头直径 (mm) 2 | 0.76 |
| 材料和表面 | |
|---|---|
| 头型 | 06 |
| 头型 2 | 21 |
| 针头材料 | Beryllium copper |
| 针头镀层 | Gold |
| 柱塞材料 | Brass |
| 柱塞镀层 | Silver |
| 针管材料 | Brass |
| 针管镀层 | Uncoated |
| 弹簧材料 | High-grade steel |
| 弹簧镀层 | Uncoated |
| 柱塞材料 2 | Beryllium copper |
| 柱塞镀层 2 | Longtime Gold |
| 弹簧材料 2 | High-grade steel |
| 弹簧镀层 2 | Uncoated |
| 机械规格 | |
|---|---|
| 预紧力（cN） | 3500 |
| 弹力 (cN) | 7150 |
| 标准行程 (mm) | 5.6 |
| 最大行程 (mm) | 7 |
| 螺纹式 | M10 |
| 工具尺寸 (mm) | 17 |
| 电气规格 | |
|---|---|
| 电流 (A) | 300 |
| 接触电阻（mOhm) | 0.2 |
| 电流 (A) 2 | 5 |
| 接触电阻（mOhm) 2 | 20 |
| 内部接触规格 | |
|---|---|
| 预紧力（cN） 2 | 60 |
| 弹力 (cN) 2 | 150 |
图形
Beschreibung des Produkts

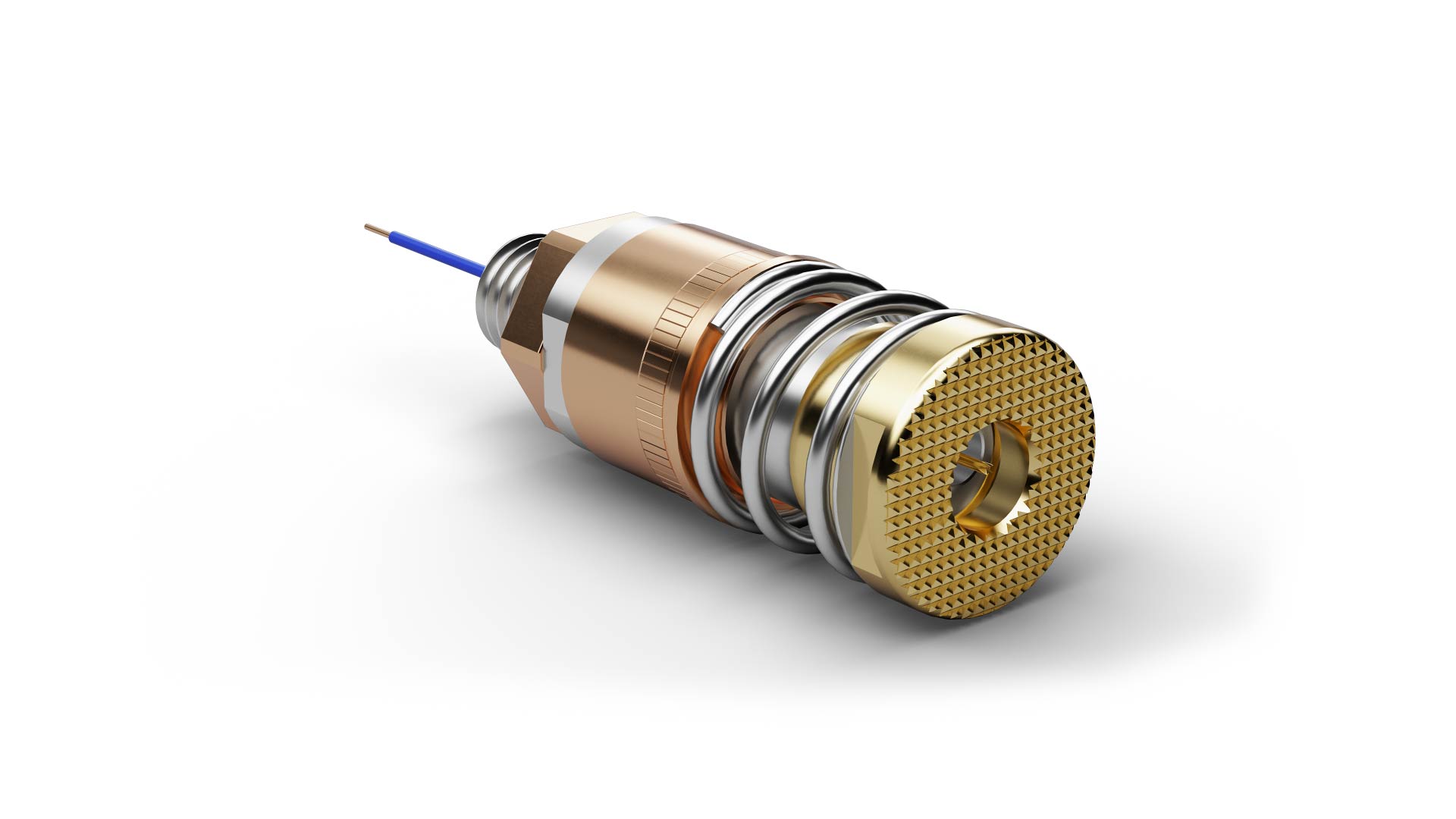

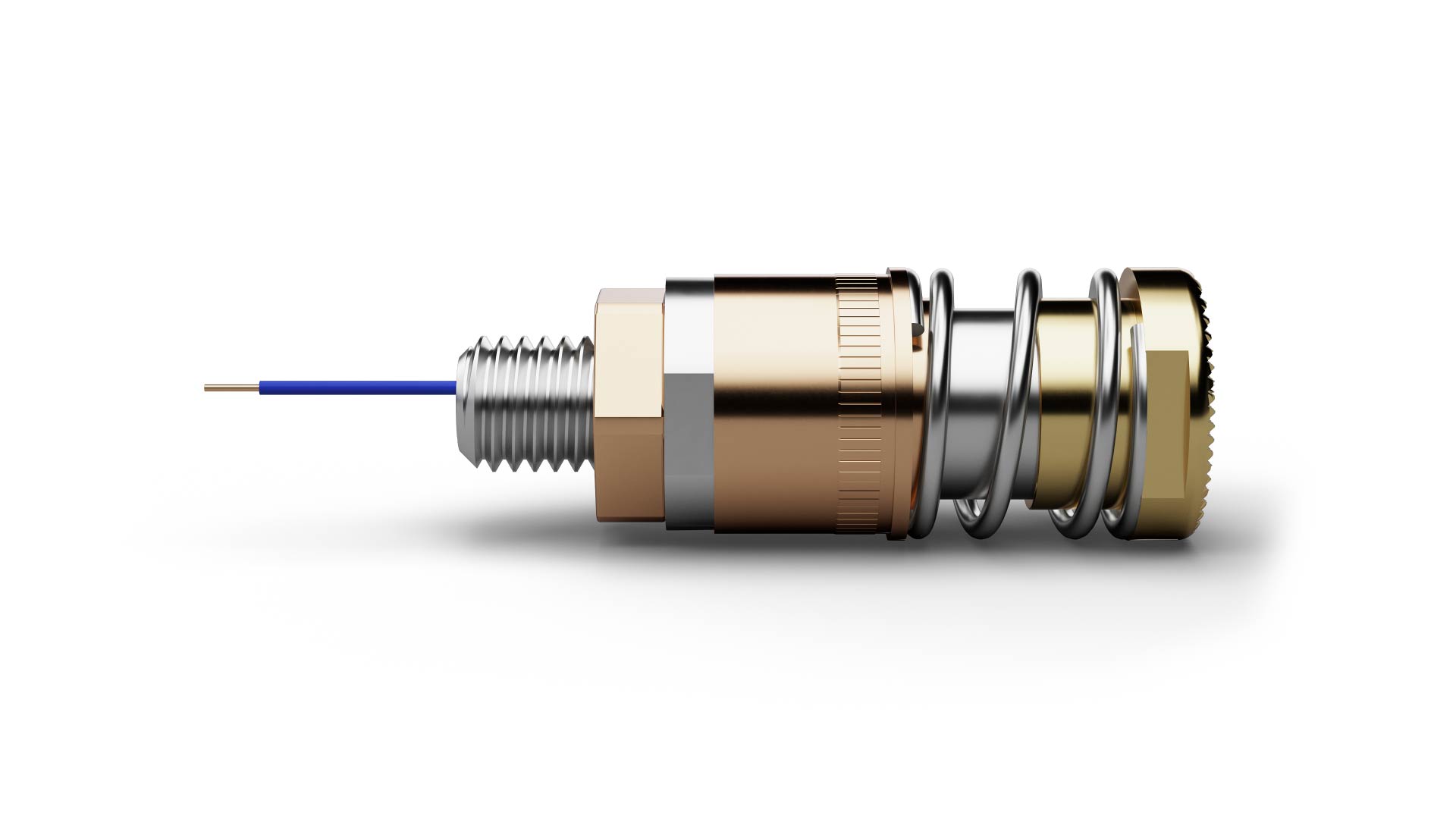

The Coaxial High Current Probe HC200B06G71 (item number 1033974) is designed for safe transmission of high electrical currents in test and contacting applications. HC200B06G71 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HC200B06G71, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HC200B06G71 includes battery contacting. HC200B06G71 is rated for 300 A continuous current with a typical contact resistance of 0.2 mΩ. For HC200B06G71, spring force is 7150 cN at a nominal travel of 5.6 mm.
