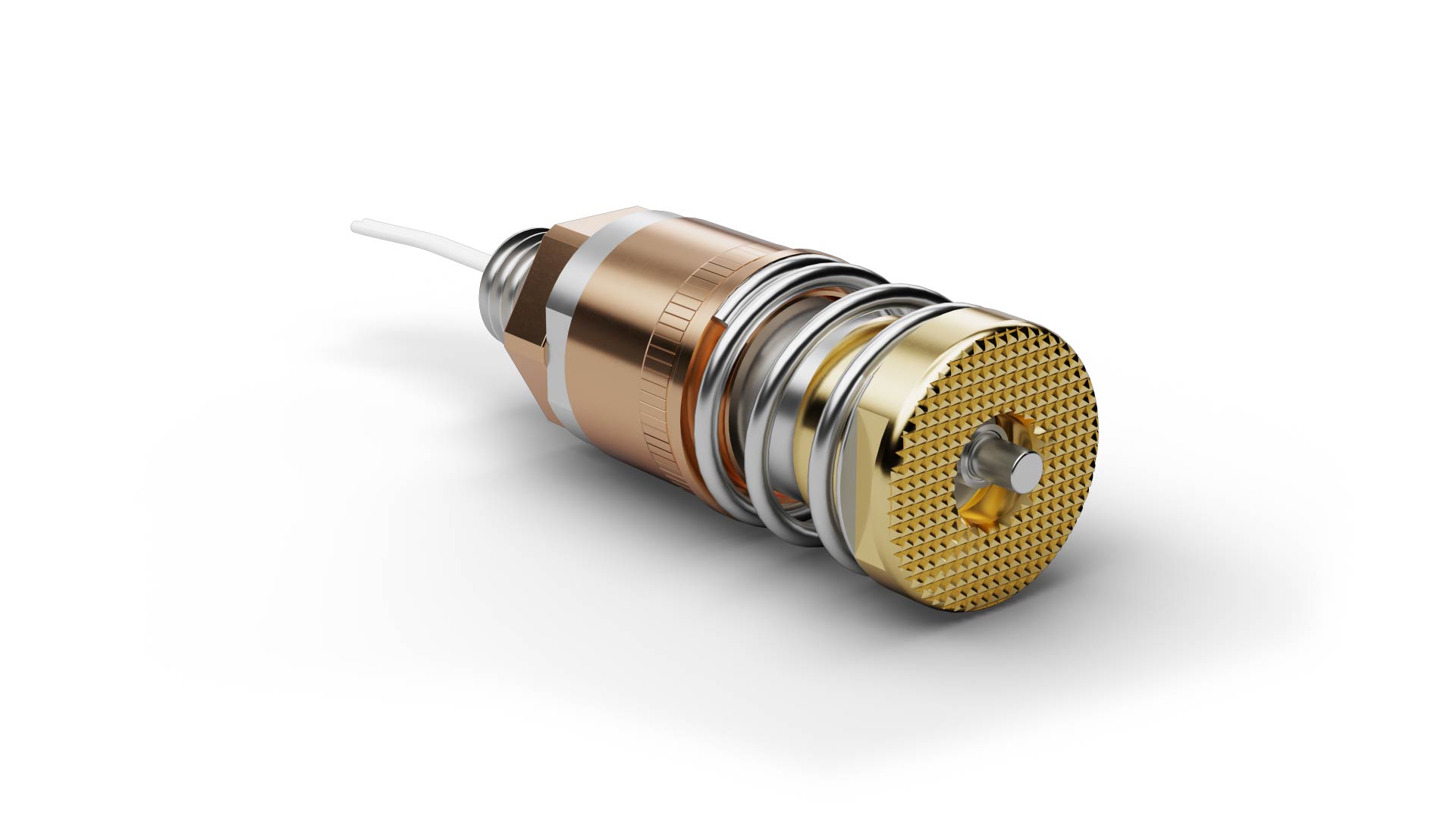

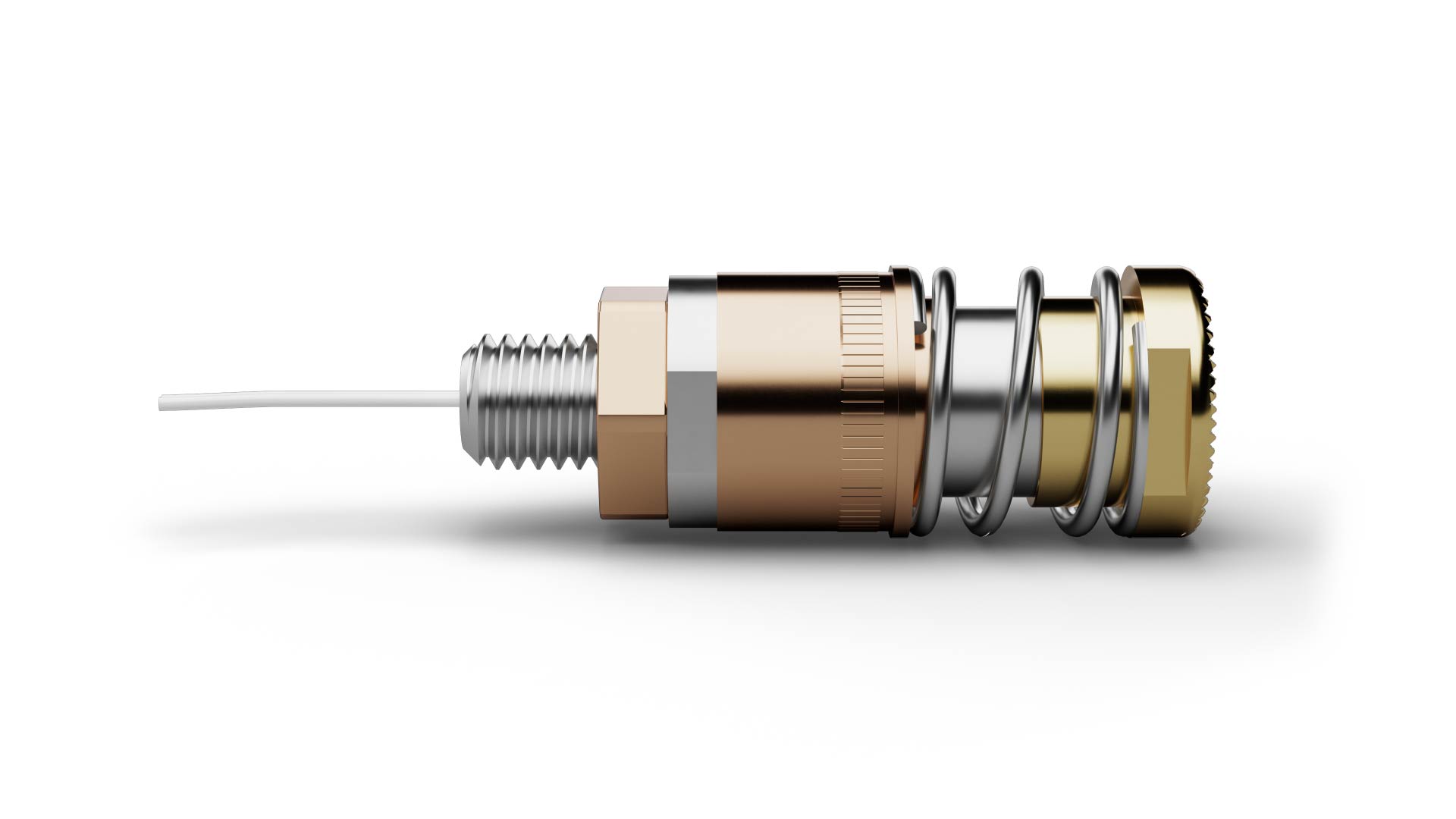

The Coaxial High Current Probe HC200C06G72PT1000 (item number 1034016) is designed for safe transmission of high electrical currents in test and contacting applications. HC200C06G72PT1000 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HC200C06G72PT1000, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HC200C06G72PT1000 includes battery contacting. The electrical rating of HC200C06G72PT1000 combines 300 A continuous current with 0.2 mΩ typical contact resistance. For HC200C06G72PT1000, spring force is 7200 cN at a nominal travel of 5.6 mm.
