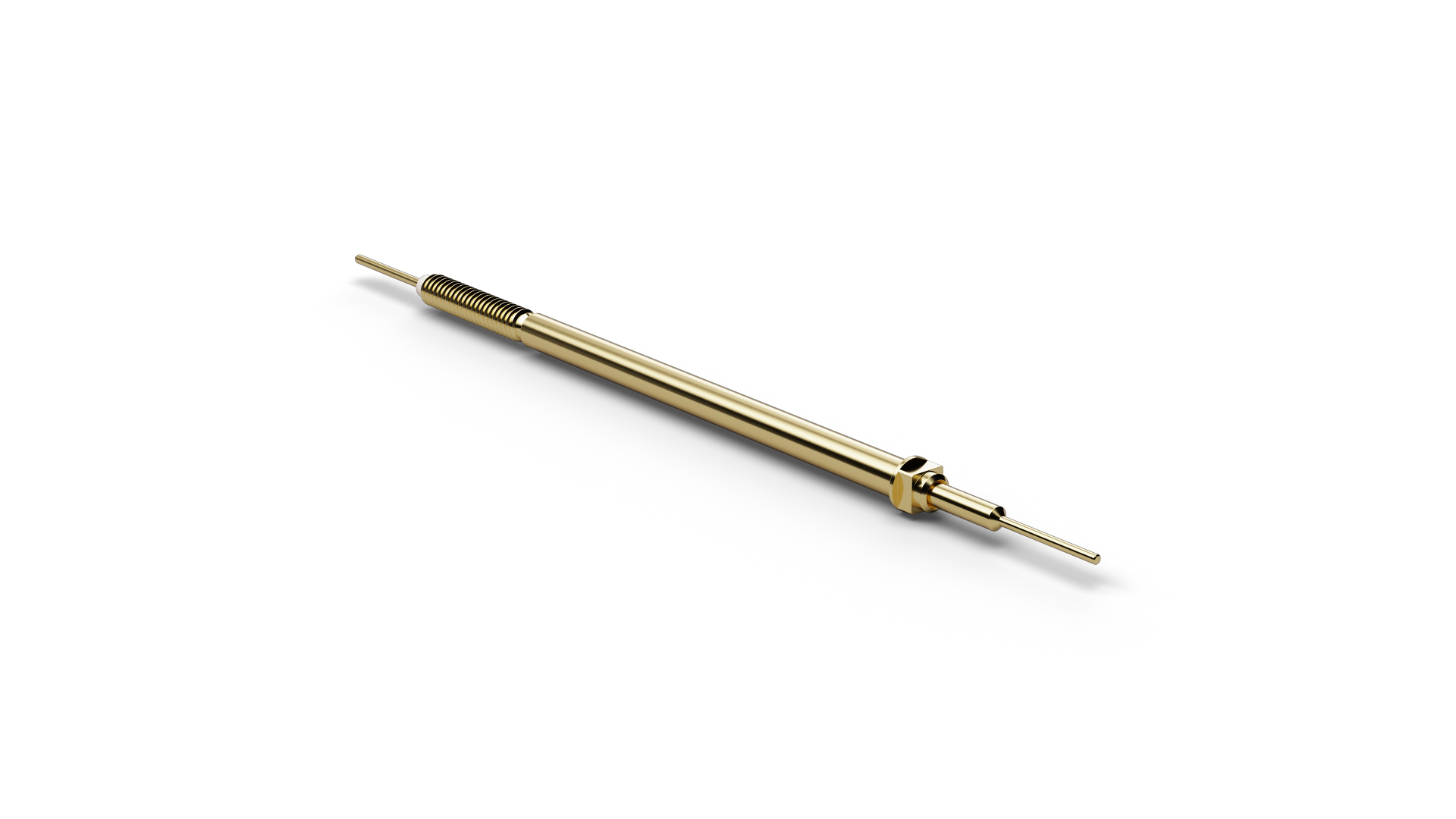

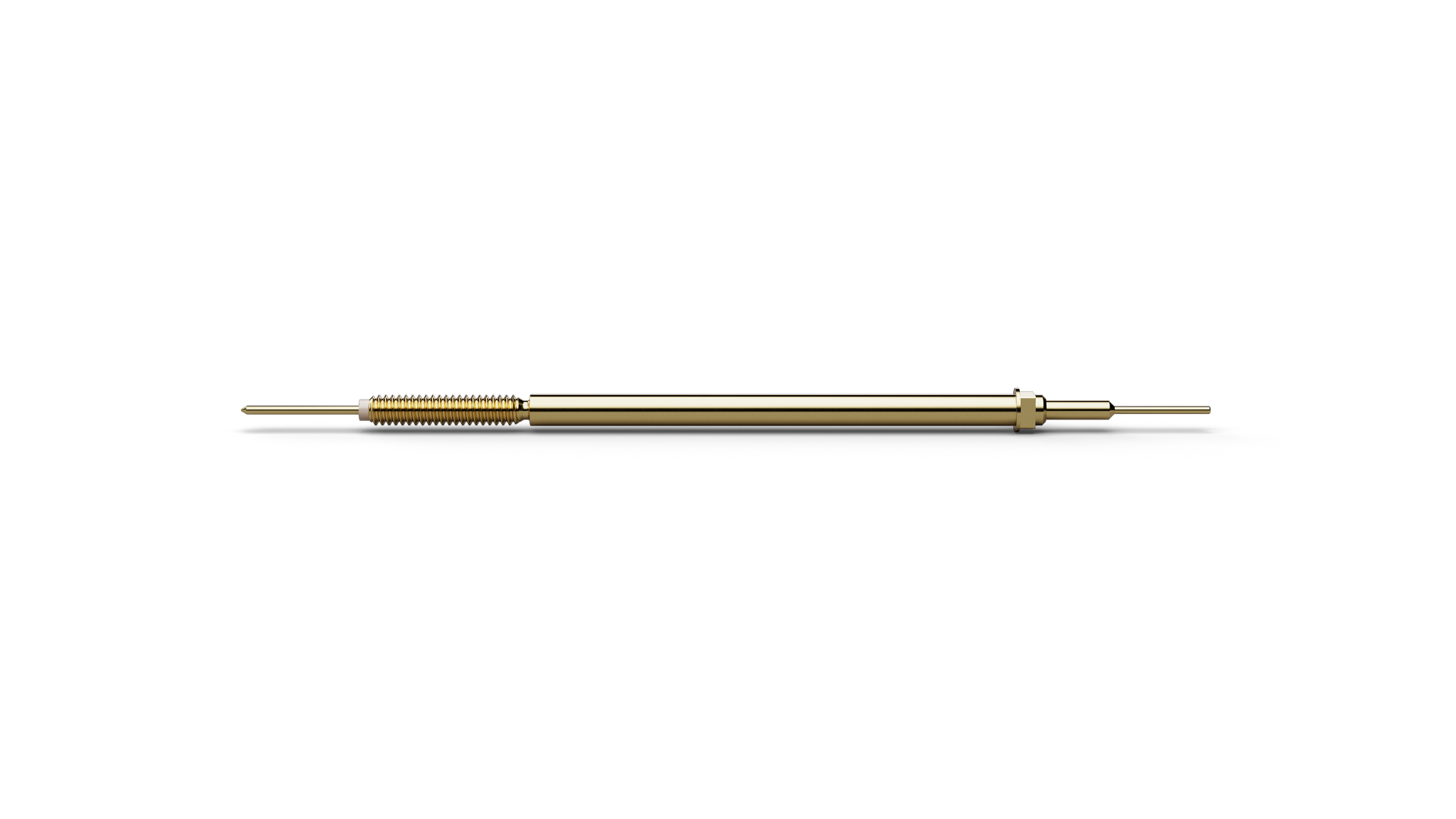

F87516B040G080S1 (item number 1038475) is a Switch Probe for combined electrical contacting and presence or position detection. F87516B040G080S1 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F87516B040G080S1 is NO (Normally Open). The switching travel specified for F87516B040G080S1 is 1.5 mm. The design combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 0.4 mm. F87516B040G080S1 operates with 80 cN spring force and 4 mm nominal travel.
