技术数据
| 一般信息 | |
|---|---|
| 结构 | Coaxial Probe |
| 类型/系列 | HF890 |
| 间距（mm/mil） | 5,00 / 200 |
| 温度 | -45°C...+100°C |

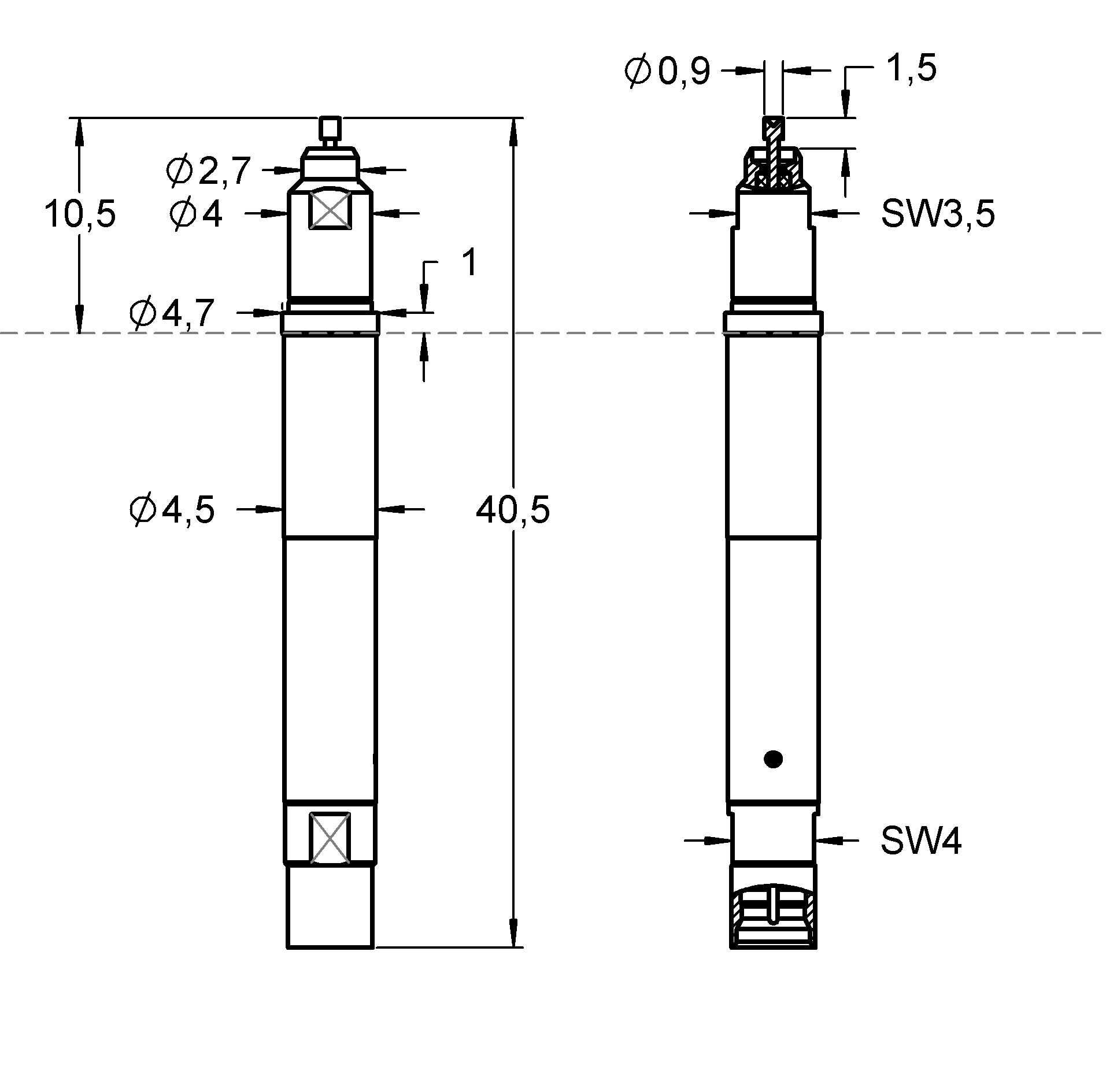

| 尺寸 | |
|---|---|
| 总长度 (mm) | 40.5 |
| 突出高度（毫米） | 10.5 |
| 针头直径 (mm) | 4 |
| 针管直径 (mm) | 4.5 |
| 领圈直径 (mm) | 4.7 |
| 压环直径 (mm) | 4.7 |
| 内/外距离 (mm) | 1.5 |
| 针头直径 (mm) 2 | 0.9 |
| 材料和表面 | |
|---|---|
| 头型 | 05 |
| 头型 2 | 05 |
| 柱塞材料 | Beryllium copper |
| 柱塞镀层 | Gold |
| 针管材料 | Brass |
| 针管镀层 | Gold |
| 弹簧材料 | High-grade steel |
| 弹簧镀层 | Uncoated |
| 柱塞材料 2 | Beryllium copper |
| 柱塞镀层 2 | Gold |
| 弹簧材料 2 | Spring steel |
| 弹簧镀层 2 | Gold |
| 机械规格 | |
|---|---|
| 预紧力（cN） | 90 |
| 弹力 (cN) | 800 |
| 标准行程 (mm) | 4 |
| 最大行程 (mm) | 5 |
| 工具尺寸 (mm) | 3,5/4,0 |
| 连接 | Jack |
| 目标语言 | mSMP-Male |
| 电气规格 | |
|---|---|
| 电流 (A) | 10 |
| 阻抗 (ohm) | 50 |
| Fréquence (GHz) | 12 |
| 电流 (A) 2 | 3 |
| 内部接触规格 | |
|---|---|
| 标准行程 (mm) 2 | 1 |
| 最大行程 (mm) 2 | 1.7 |
| 预紧力（cN） 2 | 100 |
| 弹力 (cN) 2 | 130 |
图形
Beschreibung des Produkts

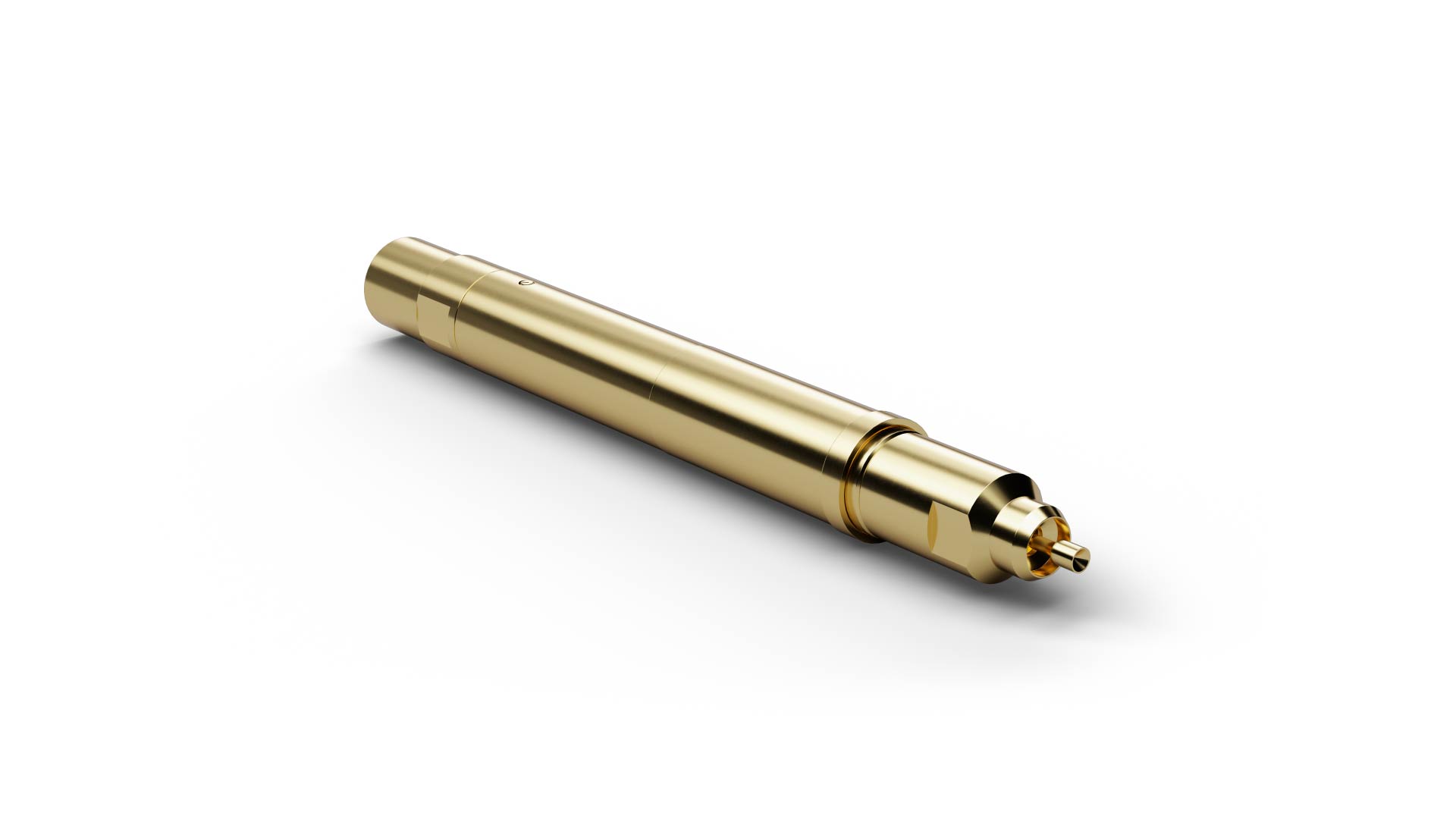

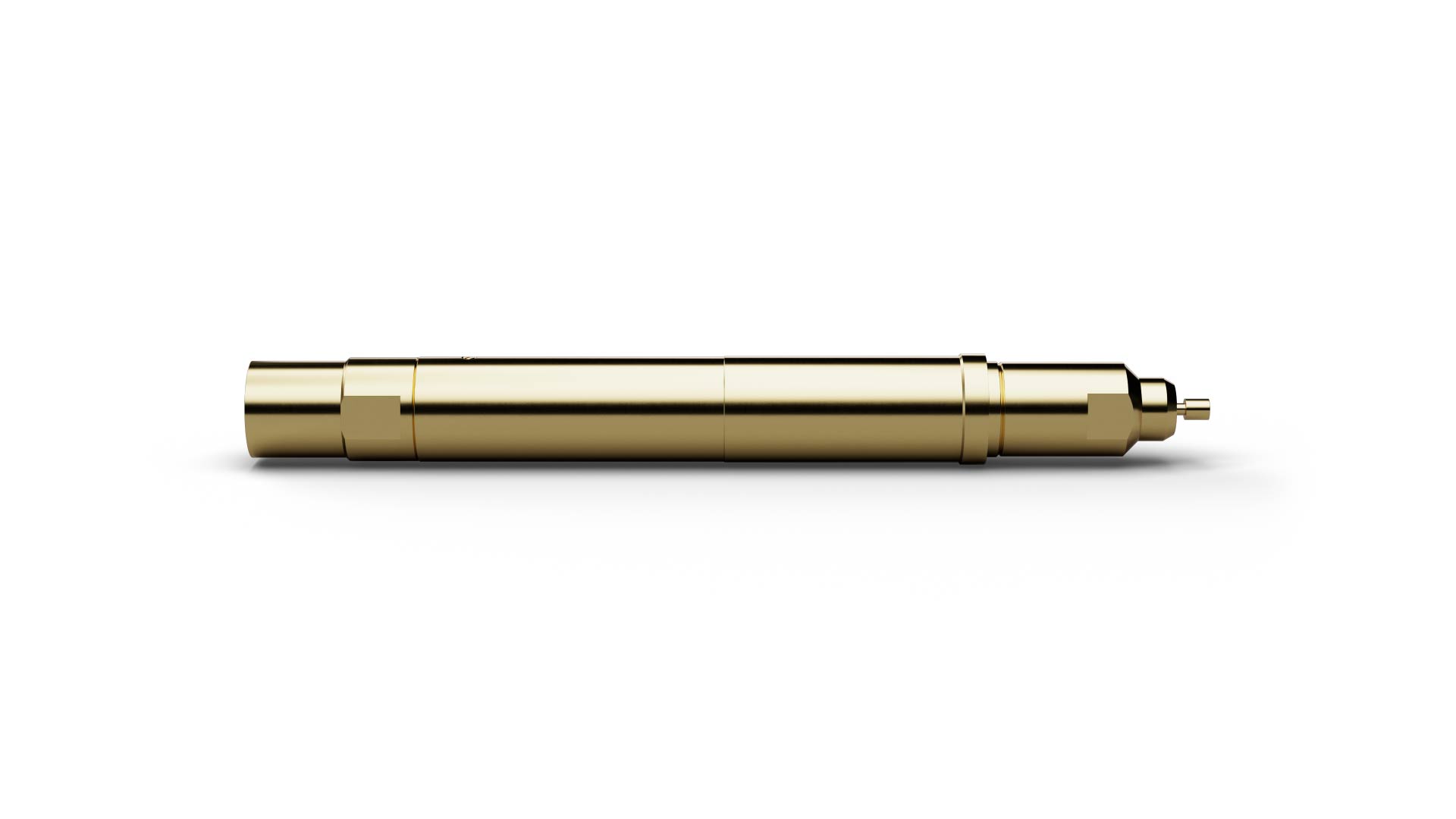

The High Frequency Probe HF890MSMPm0112G930SMPmP (item number 1051266) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF890MSMPm0112G930SMPmP supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range extends up to 12 GHz, and this version is intended for contacting mSMP-Male connectors. On HF890MSMPm0112G930SMPmP, spring forces of 800 cN on the outer contact and 130 cN on the inner contact provide defined mechanical contacting.
