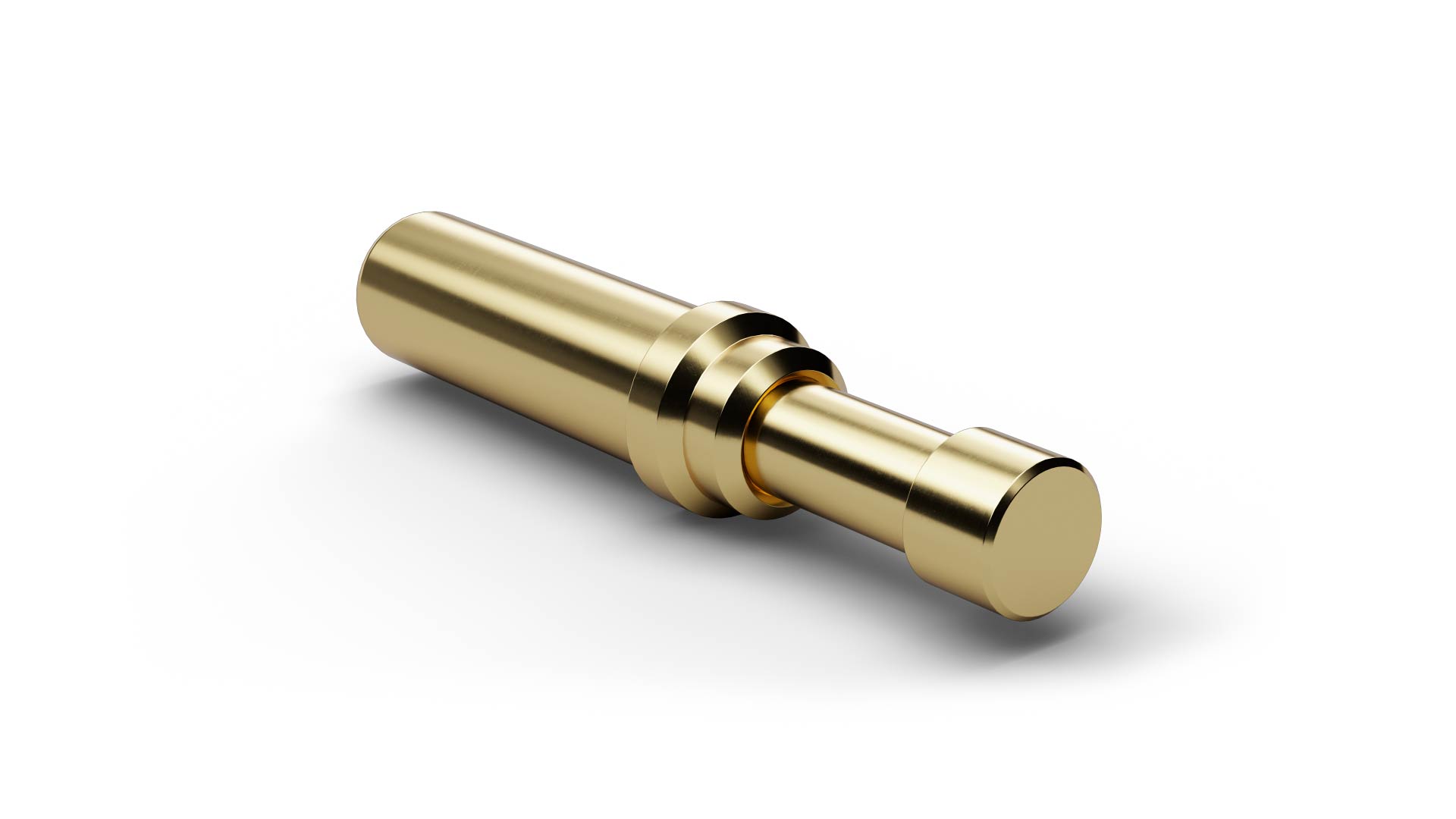

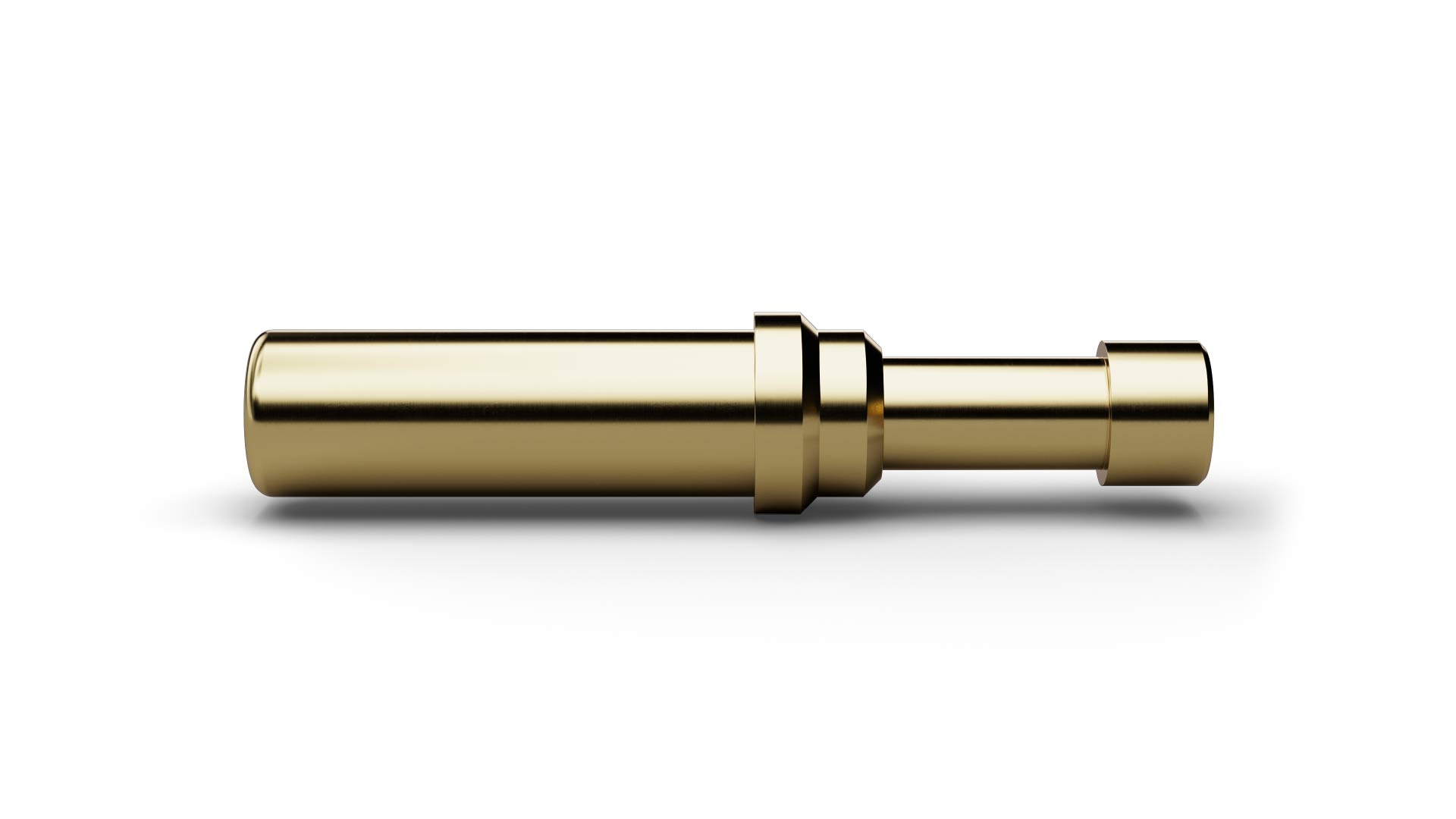

The Pogo Connector P26517M230G250TL150ST (item number 1125767) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P26517M230G250TL150ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P26517M230G250TL150ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 4 mm / 157 mil, spring force is 250 cN at a nominal travel of 2.8 mm. The electrical rating of P26517M230G250TL150ST combines 10 A continuous current with 100 mΩ typical contact resistance. Tip style 17 (Flat stepped) has a diameter of 2.3 mm.
