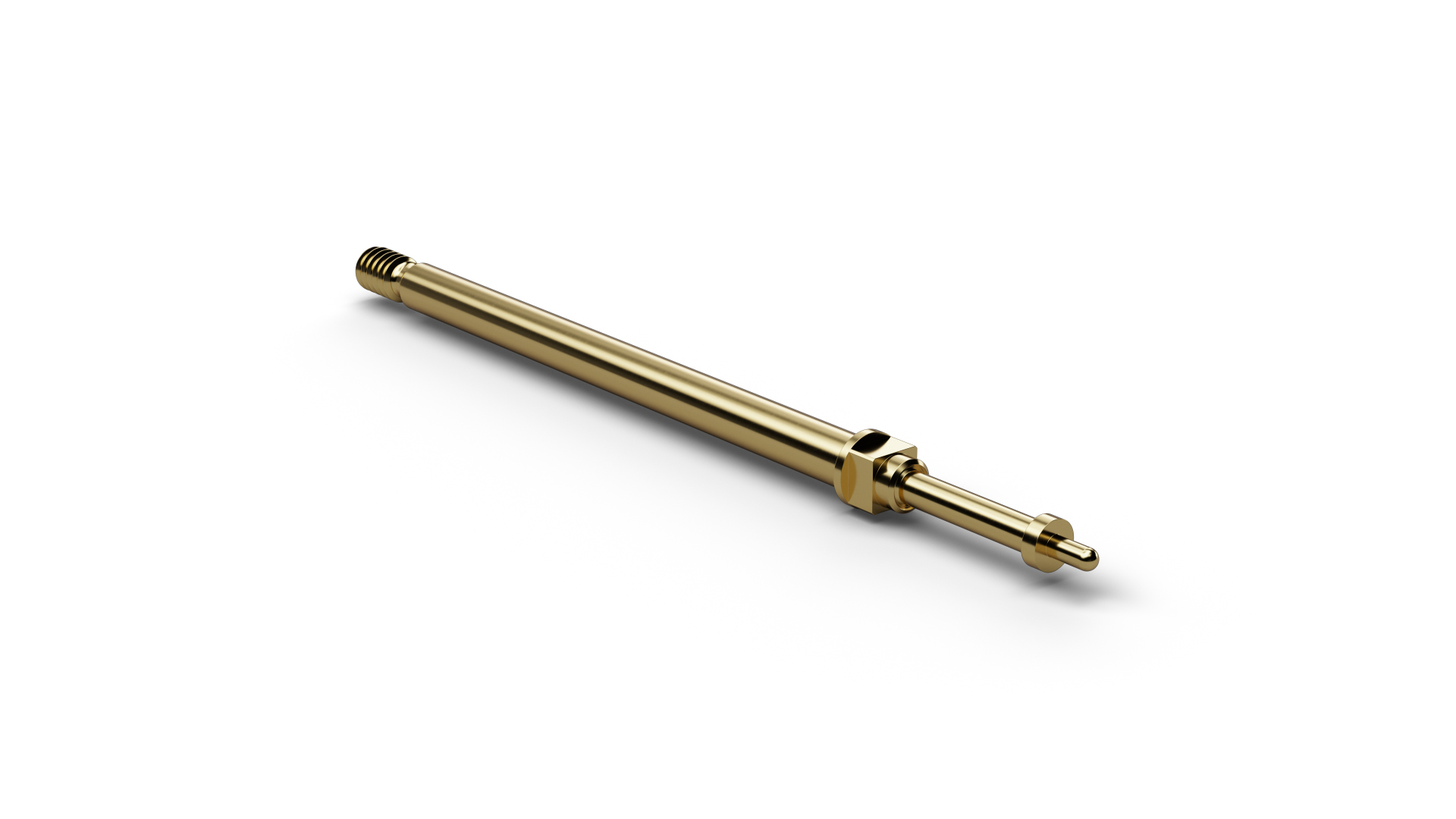

F73211B0042G100SP (item number 1139338) is a Step Probe for defined contacting of recessed or housing-guided electrical contacts. On F73211B0042G100SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 0.64 mm, plate diameter 1.5 mm, pin length 1.5 mm. On F73211B0042G100SP, a pitch of 2.54 mm / 100 mil is combined with 100 cN spring force and 4 mm nominal travel. F73211B0042G100SP is specified for 5 A continuous current. The plunger in F73211B0042G100SP is made of beryllium copper and is gold-plated.
